________________________________________PL10C / PL20B_____________________________________

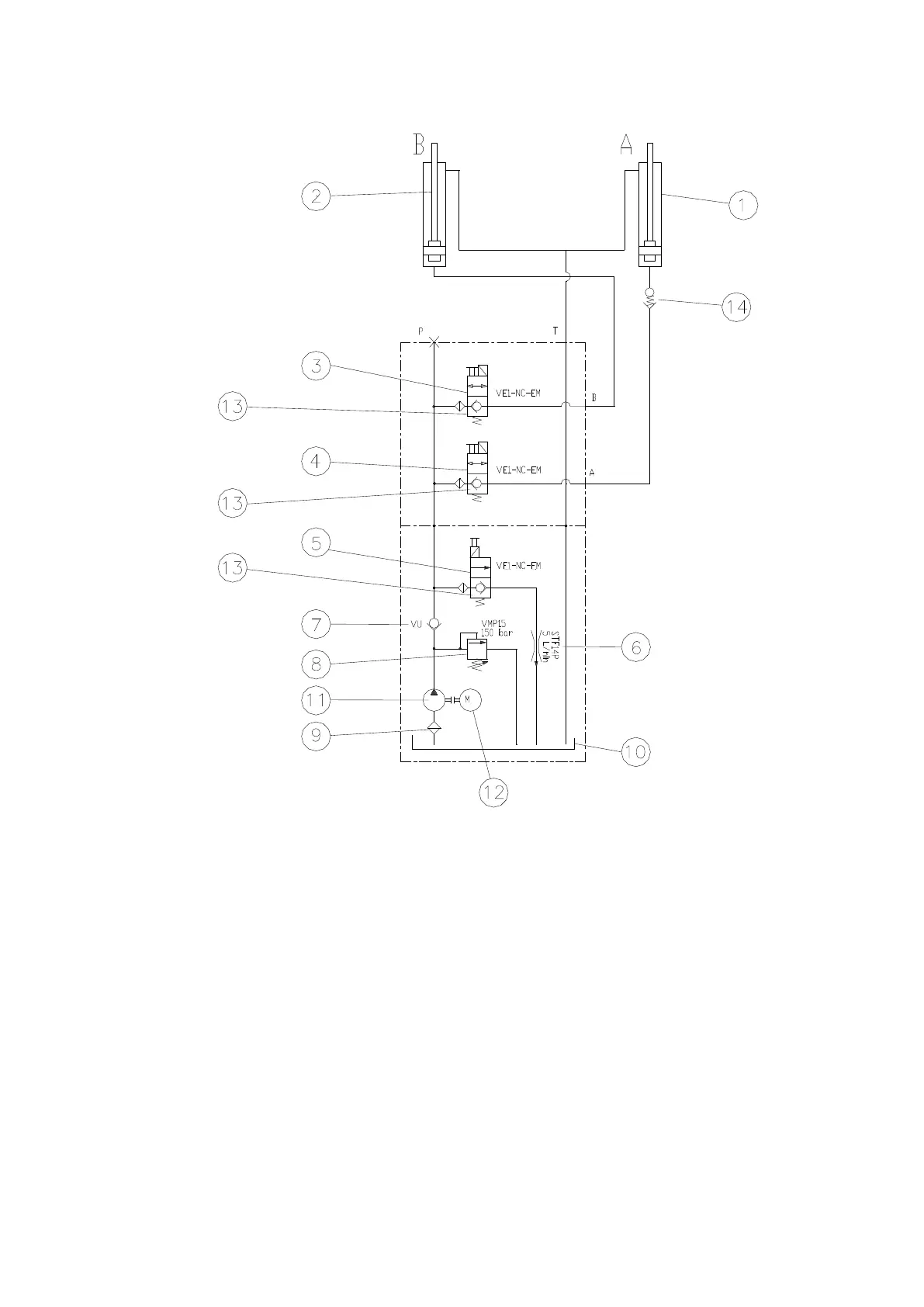

XI) HYDRAULIC DIAGRAM

1 CYLINDER A

2 CYLINDER B

3 ELECTRO VALVE ASCENT + DESCENT CYLINDER B

4 ELECTRO VALVE ASCENT + DESCENT CYLINDER A

5 ELECTRO VALVE DESCENT

6 FLOW VALVE

7 CHECK VALVE (NON RETURN)

8 MAX PRESSURE VALVE

9 OIL FILTER

10 OIL TANK

11 PUMP 3L

12 MOTOR TRI. 230 / 400V 50HZ 1.1KW

13 MANUAL OPENING OF ELECTRO VALVES

14 SAFETY VALVE (PARACHUTE)
