BLACKHAWK! PL10C - Clamp and Arm Setup; Frame Straightener Setup

________________________________________PL10C / PL20B_____________________________________
15

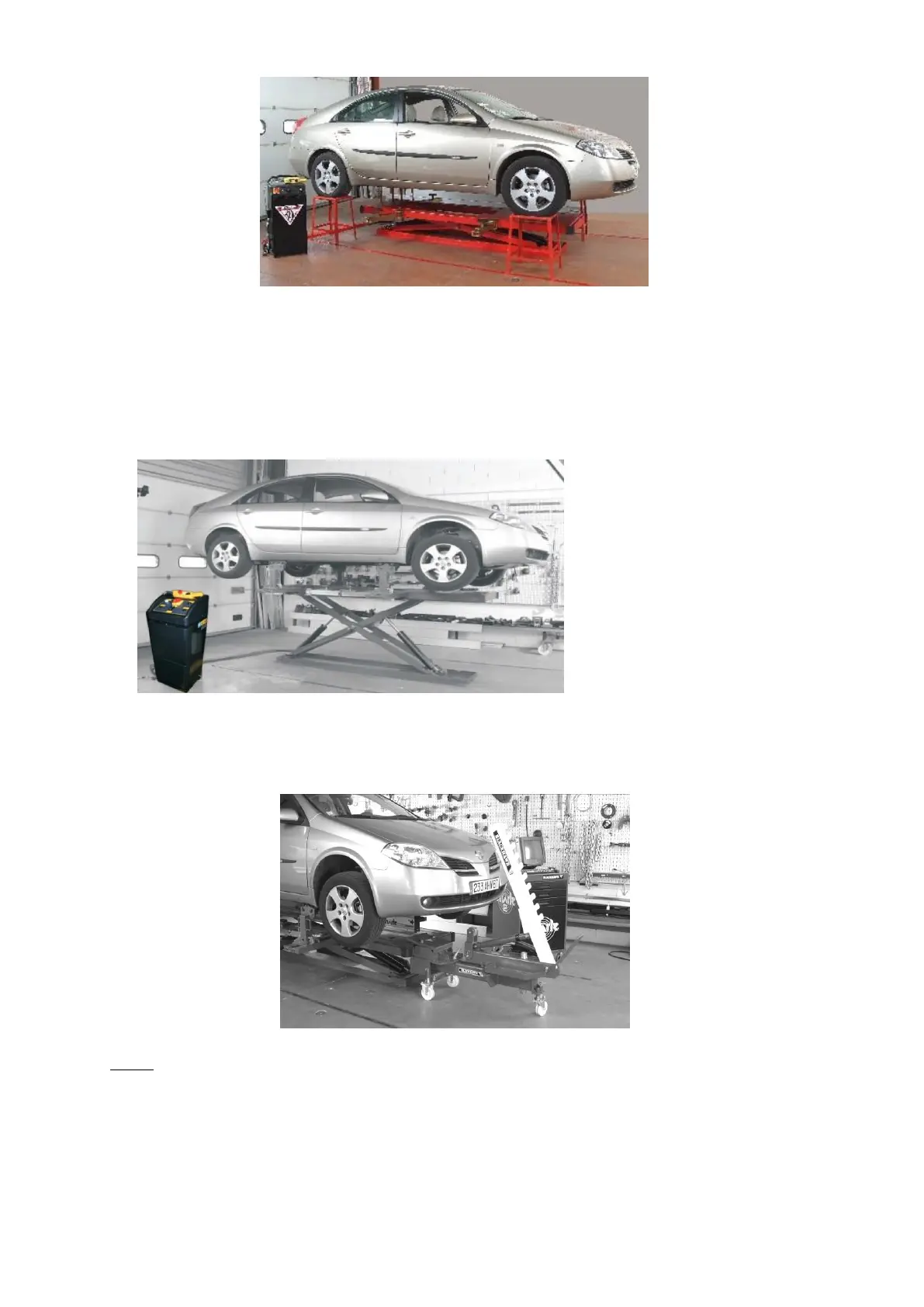

Figure 20
CLAMPS SET UP
- Set up the 4 arms.
- Set up the 4 clamp supports.
- Tighten the bolts of the clamps’ jaws.
- Lock the clamp supports by the means of the wedges.
- Lock into place the 4 arms with the plates and the screws.
- Lift the whole system and remove the wheel stands.
Figure 21
SET UP OF THE FRAME STRAIGHTENER
- Lower the lift until it stops automatically, at about 450 mm from the floor. (See note below for adjustments)
- Position and fix the frame straightener where needed to perform the straightening.
Figure 22
NOTE:
The height of the automatic stop during descent is set during manufacturing for use on the floor.
For pit installations, use the limit switch to adjust the height of the automatic stop in a position which allows an easy set up
of the pulling arm.
