Installation
3. LOWER THE DOWNHOLE
COMPONENTS INTO THE WELL
a. Carefully slide the pump barrel into the well,


 
4. INSPECT THE WELL SEAL
 
b. There are typically 3 ports on each well seal. One port is the actuator mount.
At this port you will install the close nipple and discharge tee.
• A pipe union can be installed above the tee for ease of future
maintenance.
c. The other two ports can be used for monitoring and drainage. The larger port

1. ASSEMBLE THE DOWNHOLE COMPONENTS
a. Tightly secure the compression nut to the piston rod connect.

• If the ID of the riser pipe or connections is smaller than the OD of the piston,
the piston must be first inserted into the pump barrel and drive rod inserted
through riser pipe, connections and tubing prior to assembly of the
downhole.
• Use plumber’s tape on all threaded connections of the riser pipe to ensure the
connections do not leak.
2. INSTALL THE VANSTONE FLANGE
 
of the well casing.
b. Place the rubber gasket on top of the


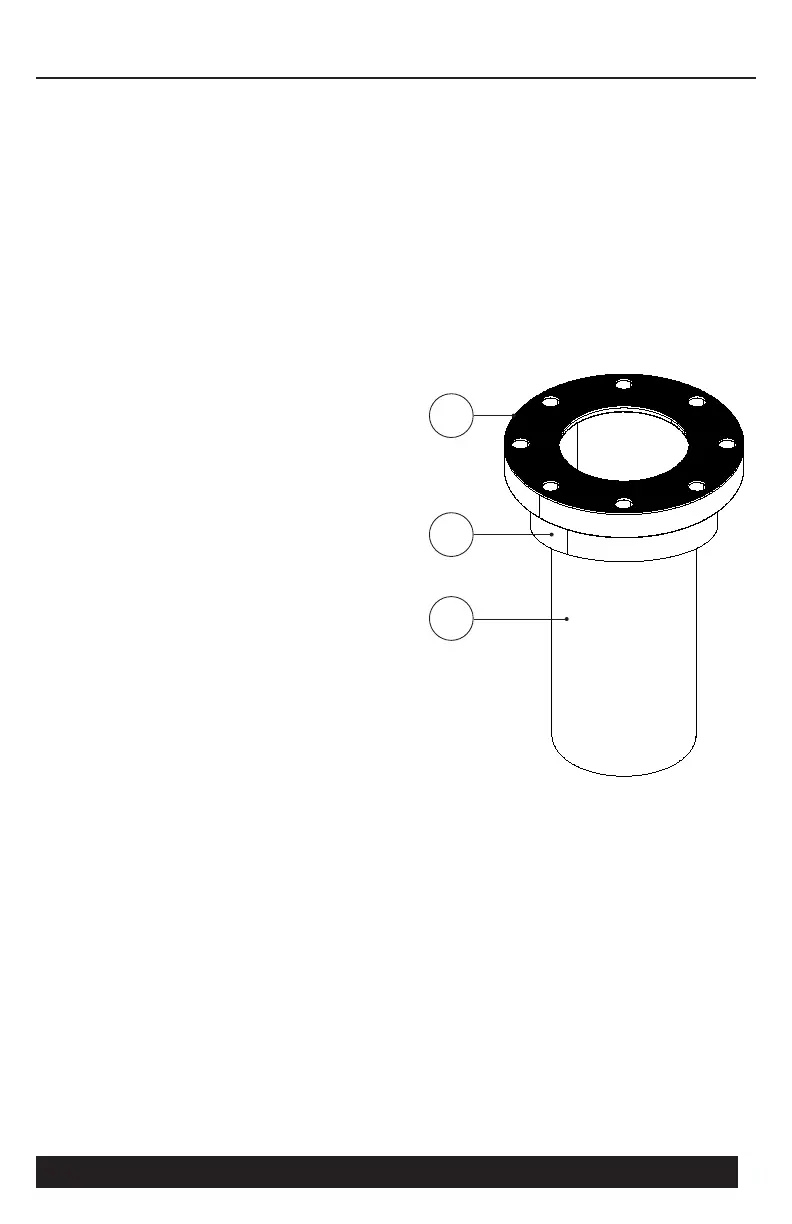

Flange Components:
1.) Rubber Gasket
 2.)VanstoneFlange
 3.)WellCasing
1
2
3
