3. MEASURE THE WELL DEPTH
a. Verify the depth of the well and record it.

measuring the riser-pipe length.
4. UNCOIL ROD
 
walking out the coiled rod uncoiling the
rod as you walk.
CAUTION: The rod is under tension, use
gloves and eye protecon when handling
the rod.



6
5
4
7
3
1
2

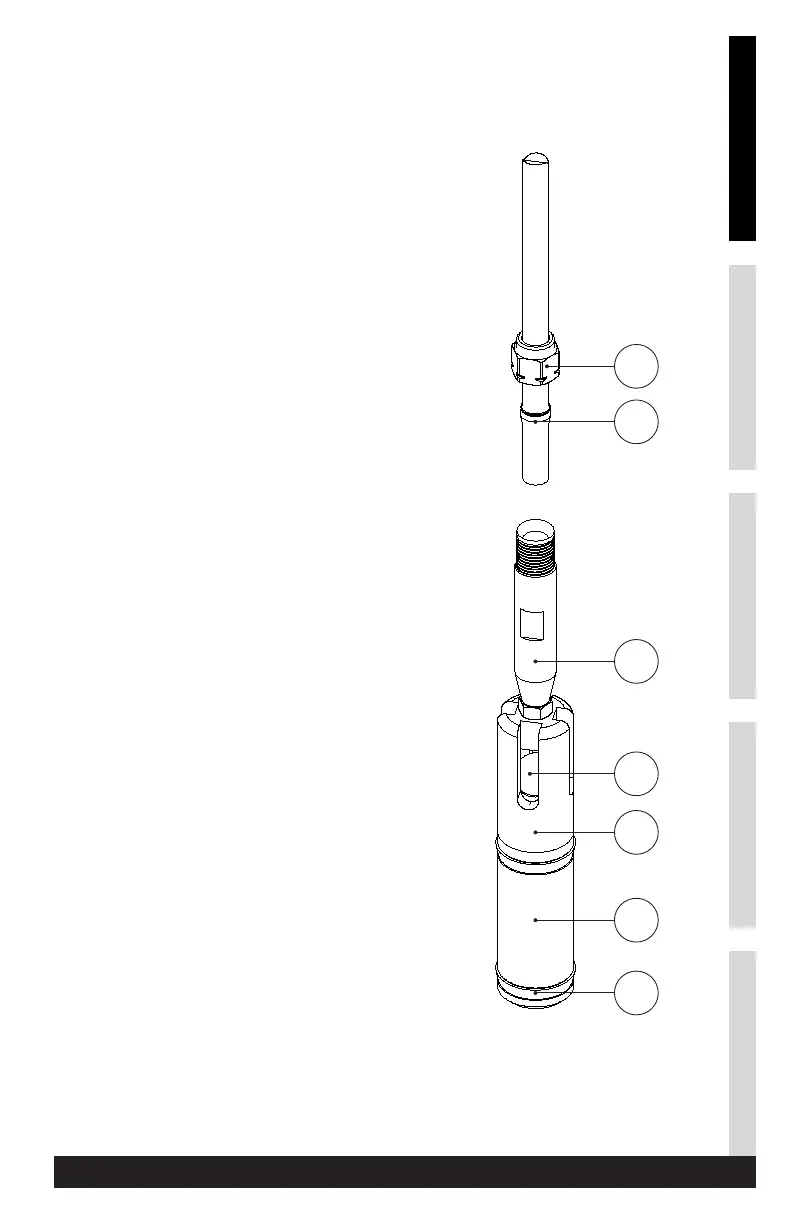

Piston Assembly Components:
1.) Rod Connect Nut
2.) Rod Connect Ferrule
3.) Piston Rod Connect
 4.)CheckBall
 5.)PistonCage
 6.)PistonTransion
 7.)U-CupSeals(x2)
