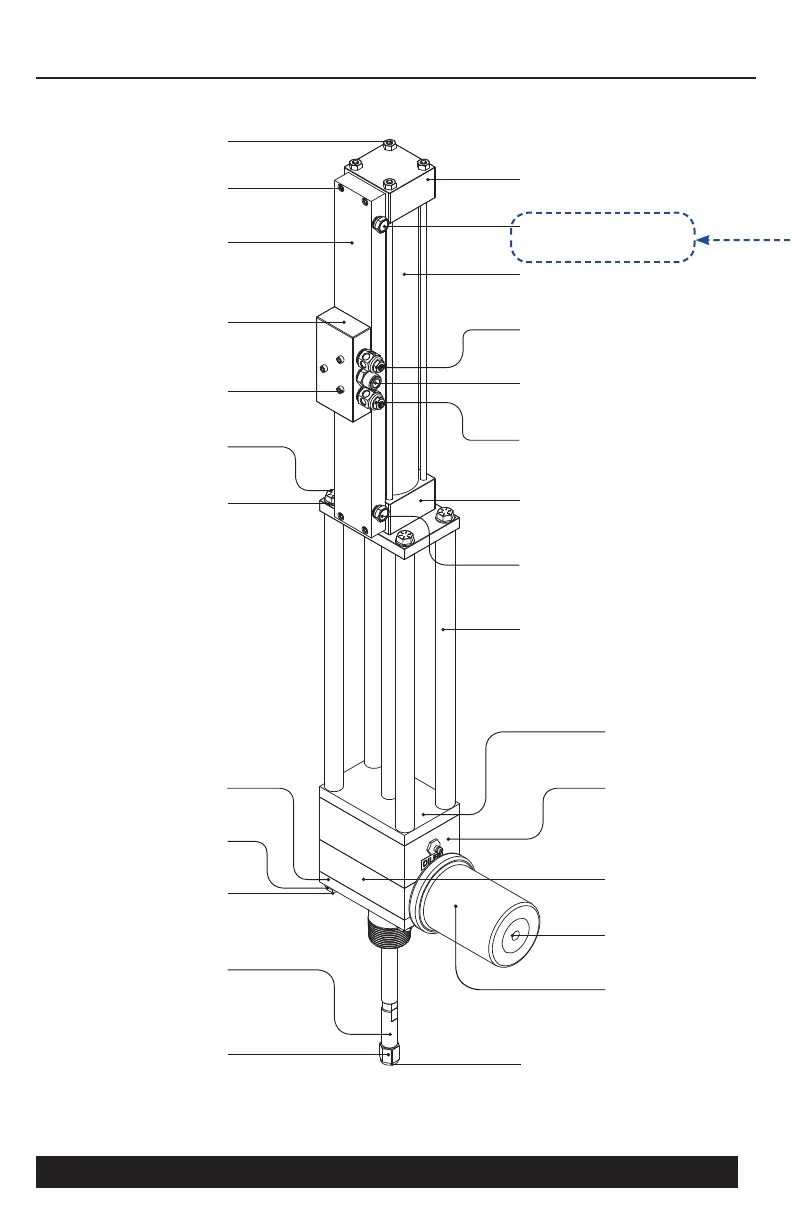

CYLINDER CAP, V2
DA-20-0050
FOUR-WAY MANIFOLD, V2
DA-20-0060
FOUR-WAY VALVE, V2
DA-20-0070
INTERNAL O-RINGS
DA-20-0071 (x6)
8-32 x 1-1/4” SHCS
H1003, 3 PLACES
5/16”-18 x 5/8” HHCS
H1002, 4 PLACES
COUPLING, DRIVER TO ROD
PO-50-5062
5/16” WASHER
H1021, 4 PLACES
1-1/4” MOUNTING PLATE
SA-50-5010
5/16” WASHER
H1021, 4 PLACES
5/16”-18 x 5” HHCS
H1083, 4 PLACES
3/8” ROD CONNECTOR NUT
8-32 x 3/4” SHCS
H1006, 4 PLACES
5/16”-24 WU+TOP NUT
H1106, 4 PLACES
OIL CARTRIDGE
NS-PL002
AUTO LUBRICATOR
NS-PL001
(optional)
5/8” OILER SEAL PLATE
SA-50-5027
(optional)
5/8” STUFFING BOX
SC-50-0020
5/8” SPLASH PLATE
SA-50-5030
3/8” ROD CONNECTOR FERRULE
1/4” MANIFOLD MUFFLER
DA-20-0150
CYLINDER TUBE, V2
DA-20-0030
3/8” x 3/8” AIR TUBE FITTING
LO-40-6023
3/8” SPEED CONTROL MUFFLER
CA-10-6023
3/8” SPEED CONTROL MUFFLER
CA-10-6023
1/4” MANIFOLD MUFFLER
DA-20-0150
CYLINDER HEAD, V2
DA-20-0040
TIE ROD, EXTENDED
NS-RM013 (x4)
PART NUMBERS: V2 Pneumac Drive Motor Assembly, Part 1
