BLACKHAWK! V-2 - Page 23

PreintstallationInstallationStartupMaintenance
Troubleshooting Guide
Blackhawk Technology Company
V-2PneumaticPistonPumpI&O-10365 | 20220811 21
CAP CUSHION SEAL
DA-15-0110
O-RING
DA-20-0120
PISTON WEAR BAND, V2
DA-20-0090
5/8” QUAD X-RING
SA-75-4032 - BUNA
SA-75-4033 - VITON
1/4” ZERK FITTING
SA-99-9052
PISTON SEAL, V2
DA-20-0080
O-RING
DA-20-0120
HEAD CUSHION SEAL
DA-15-0100
MANIFOLD O-RING KIT
DA-20-0140 (not shown)
5/8” CYLNDER NOSE
SEAL CARTRIDGE
DA-15-0130
O-RING
FO-75-4000
PISTON ROD ASSEMBLY
DA-20-0021
1/4” NPT DRAIN KIT
700-HD101
(optional)
1/4” NPT DRAIN PORT
2 PLACES
O-RING
FO-75-4000
O-RING
FO-75-4000
5/8” STUFFING BOX
SEAL CARTRIDGE
(see pages 21-22)
5/8” OILER SEAL PLATE
(optional, see page 23)
Included in an internal
cylinder seal kit, part #
800-CSK20

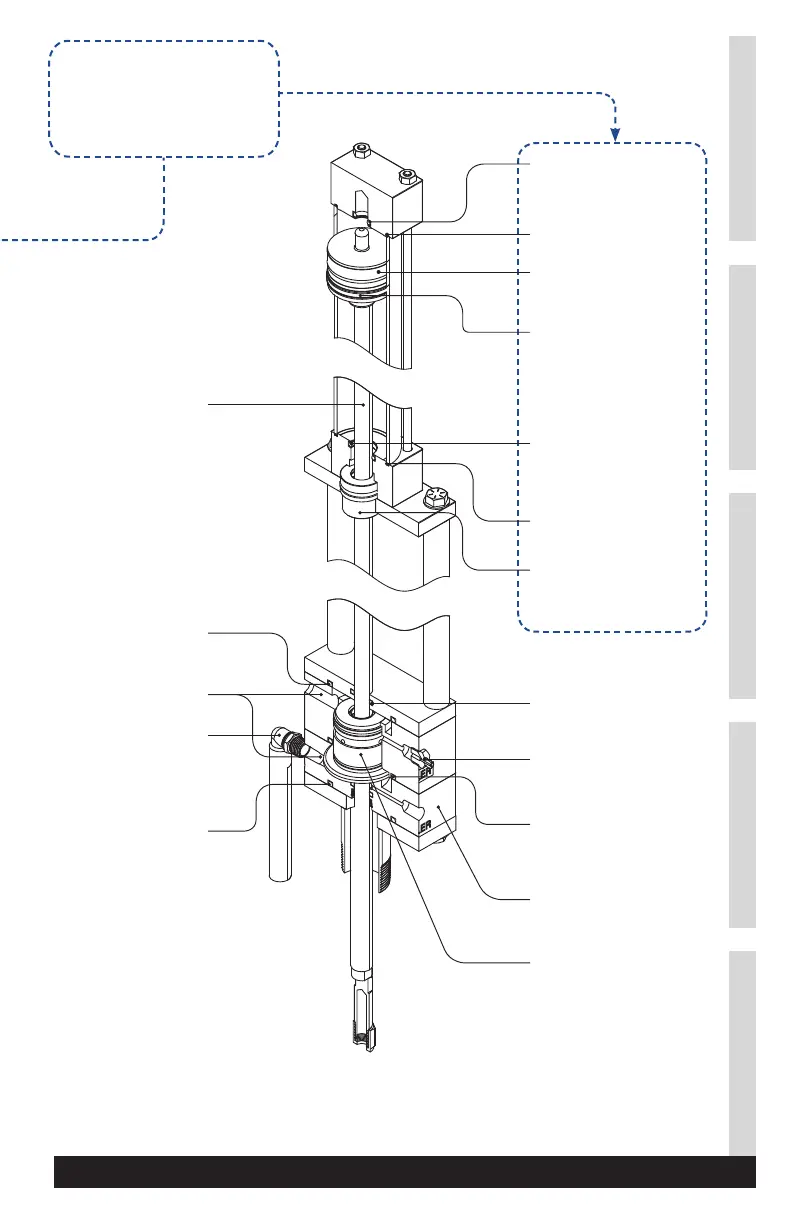

PART NUMBERS: V2 Pneumac Drive Motor Assembly, Part 2
