BLACKHAWK! V-2 - Page 31

PreintstallationInstallationStartupMaintenance
Troubleshooting Guide
Blackhawk Technology Company
V-2PneumaticPistonPumpI&O-10365 | 20220811 29

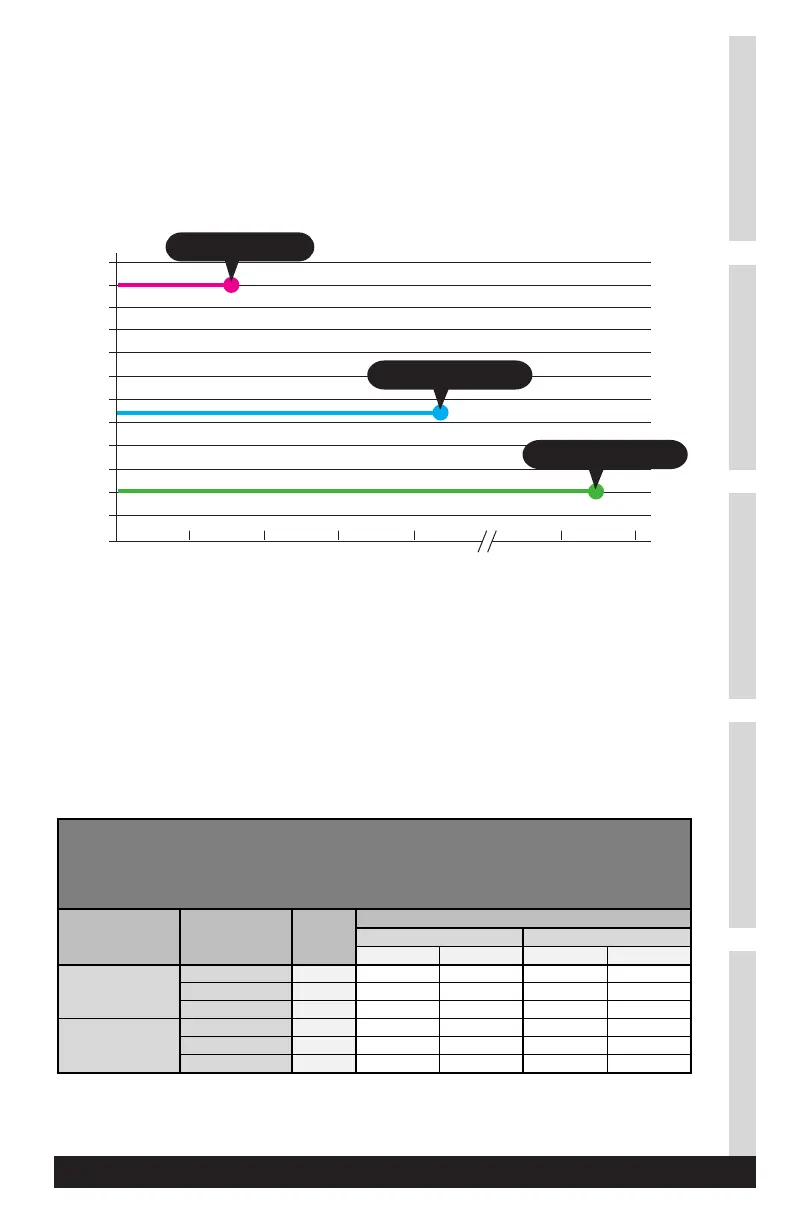

FIGURE 2: Liquid Fill Time Per Pump and Riser Pipe Type
FIGURE 1: Flow Rate vs Depth Per Downhole Type
Liquid Fill Time Per Pump & Riser Pipe Types
(Based on 100' well depth)
Pump Barrel Size Actuator Type gpm
Riser Pipe Type and Size
HDPE DR 11 Pipe Schedule 40 Pipe
1-1/2" 2" 1-1/4" 2"
101
Apollo 1.10 8:12 13:06 6:32 15:19
Pneumatic 2.00 4:30 7:12 3:35 8:25
Anchor 1.35 6:41 10:40 5:19 12:29
102
Apollo 2.70 3:20 5:20 2:39 6:14
Pneumatic 5.00 1:48 2:53 1:26 3:22
Anchor 3.27 2:45 4:24 2:12 5:09
FLOW vs. DEPTH
V-2 101, 102, and 103
@ 100 PSIG
Flow (gpm)
TDH (feet of water)
0
1
2
3
4
5
6
7
8
9
10
11
12
50 100 150 200 500 600
Model 103 - 84’
Model 102 - 243’
Model 101 - 555’
