3D Capture
When Media Express is used with a Blackmagic Design video hardware model that supports
dual stream 3D, you can create left and right eye 3D video clips by capturing 2 streams of
HD-SDI video simultaneously.
Create a 3D project which matches the frame rate of your dual stream 3D video source.
If capturing from an SDI source, make sure you have 2 discrete HD-SDI video inputs to
the Blackmagic video hardware.
Capture.

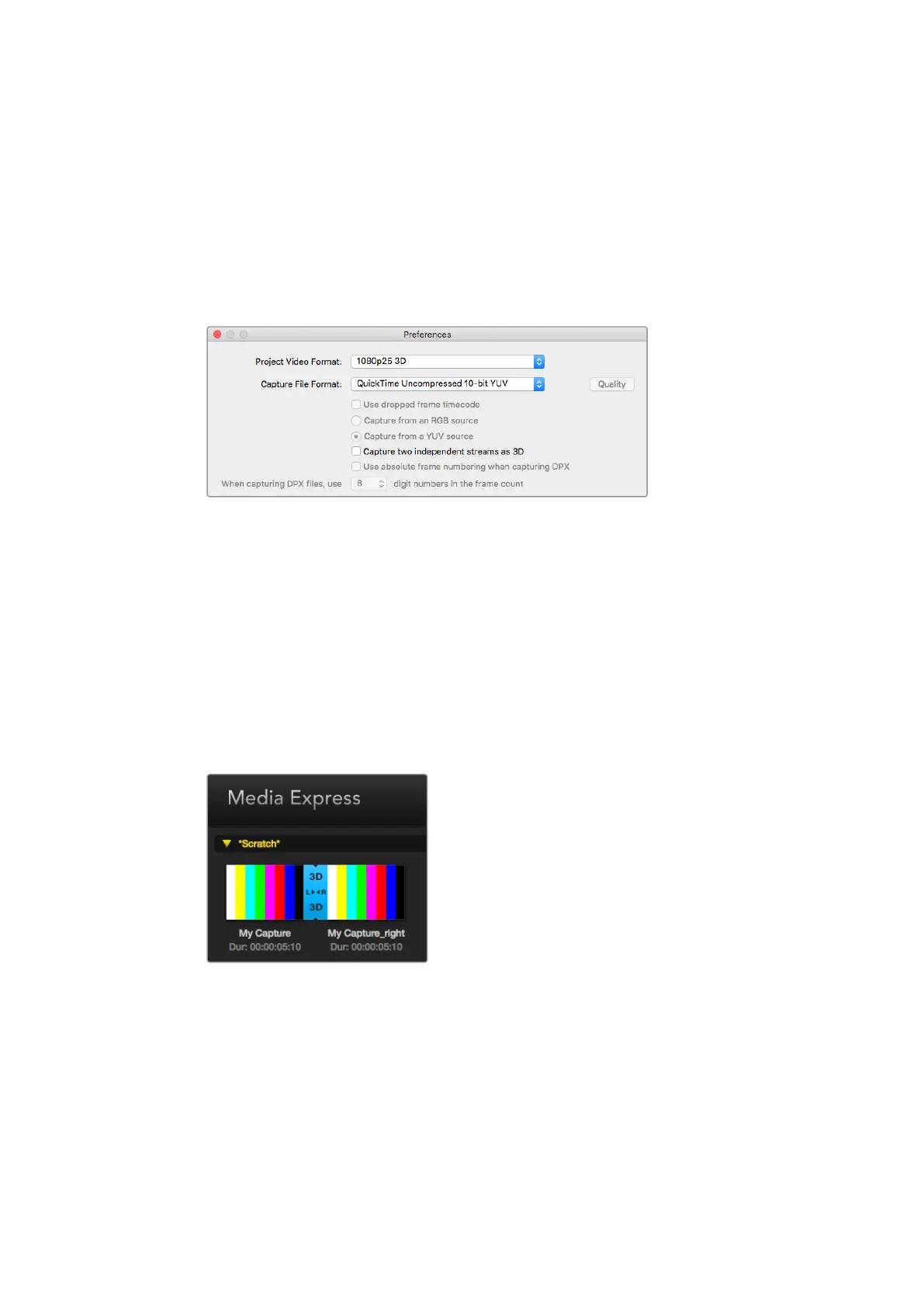

Select a project video format with “3D” in its name to
capture dual stream stereoscopic 3D video clips.
When capturing and logging dual stream 3D in Media Express, the clip name will be applied to
the left eye video. The right eye video will be appended with ‘_right’ text. For example, if you
name the stereo clip “Clip 1”, the left eye clip will be called “Clip 1.mov” and the right eye clip will
be called “Clip 1_right.mov”.
The Media List presents an eye catching indication that the captured clip is a 3D clip:
In thumbnail view, the left and right eye clips are connected by a 3D indicator and
presented as a single, large icon.
In timecode list view, the left and right eye clips are listed on two lines and linked
together by a 3D indicator.
In Thumbnail view, the left and right eye clips are connected by a
3D indicator and presented as a single, large icon.
61Blackmagic Media Express
