Blackmagicdesign MultiView Series User Manual

3 Select 4x4 from the layout setting by turning the rotary knob on the front control panel.
4x4 lets you see all 16 source views on one screen. Whenever a setting changes, you’ll
notice the ‘set’ button and the ‘menu’ button will start flashing. This means a setting has
changed and you can either confirm the setting change by pressing the ‘set’ button, or
cancel by pressing the ‘menu’ button.
4 Press the set button to confirm your setting.
You can also set the layout using the Blackmagic MultiView 16 setup software using the
configure control panel.

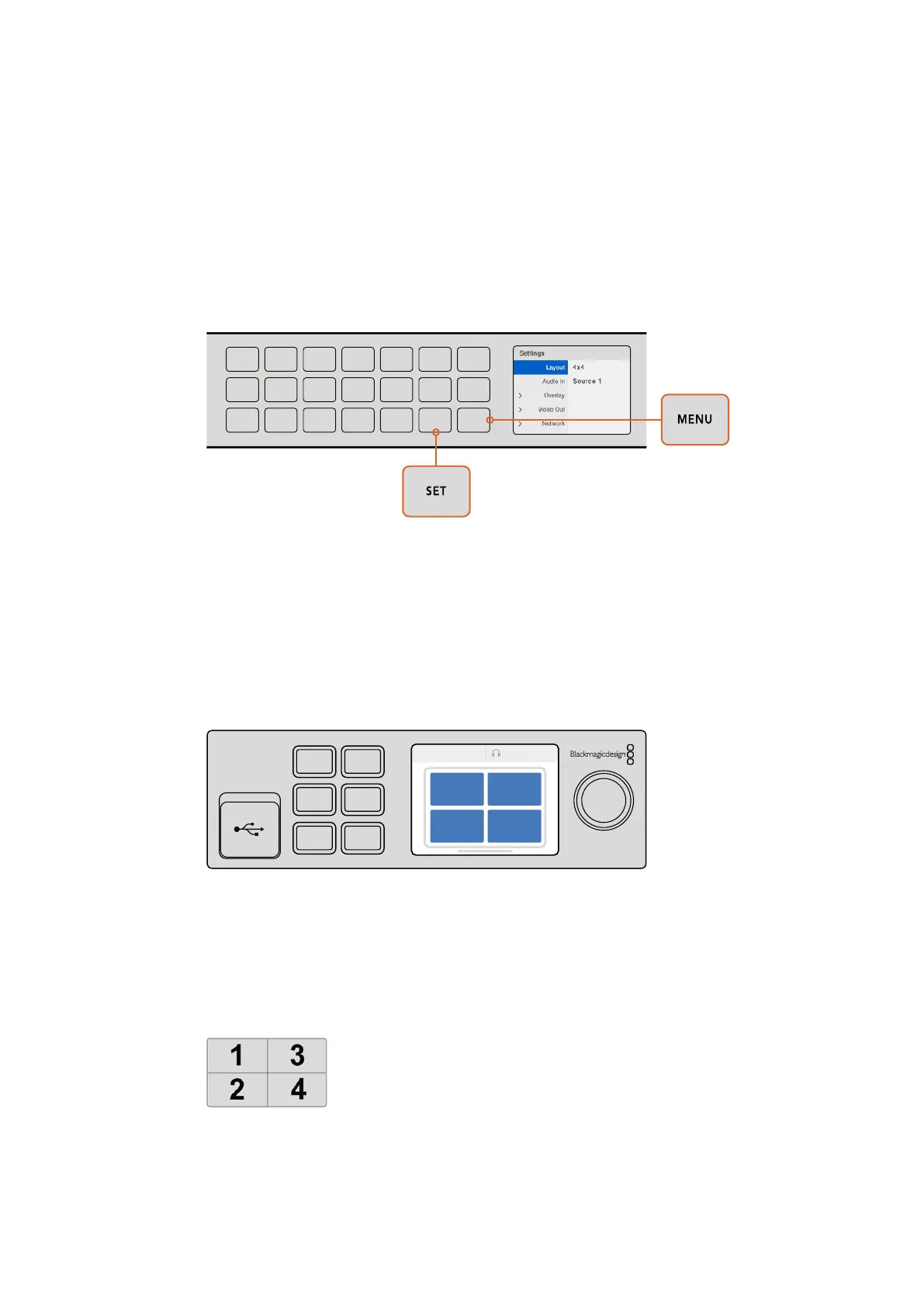

To set your Blackmagic MultiView 16’s view layout, press ‘menu’, select your layout
using the rotary knob, then press ‘set’. 4x4 lets you see all 16 views on one monitor
Setting your layout on Blackmagic MultiView 4
The default view on your Blackmagic Multiview 4 is the 2x2 layout. To change the layout on
your Blackmagic MultiView 4 to ‘solo’, use the control button marked as ‘1’ on your Teranex
MiniSmart Panel and press button ‘2’ to change it back to 2x2 display mode.
You can also set the layout using the ‘configure’ settings in the setup software.
Press ‘1’ for solo view or press ‘2’ for 2x2 view
Setting your layout on Blackmagic MultiView 4 HD
The first time you use your MultiView 4 HD, it defaults to a 2x2 layout with inputs 1 and 3 on the
top row and inputs 2 and 4 across the bottom. To change to solo mode, set the built in switch 6
‘Solo on’ to ON.
MultiView 4 HD 2x2 layout of four SDI inputs.
Refer to the ‘Switch Settings for Blackmagic MultiView 4 HD’ section for more information.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SOLO
SET
SRC
VIEW
MENU
Blackmagic MultiView 16
ETHERNET SD/HD/3G/6G-SDI IN
REF IN
LOOP OUT
IN
HDMI OUT 6G-SDI OUT HD-SDI OUT
RSS-422
CNTRL
USB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 MENU
2 VIDEO
SET AUDIO
2160p 29.97 Input 3
1 3
2 4
7Getting Started
