Blackmagicdesign Videohub 12G User Manual

Select the Source

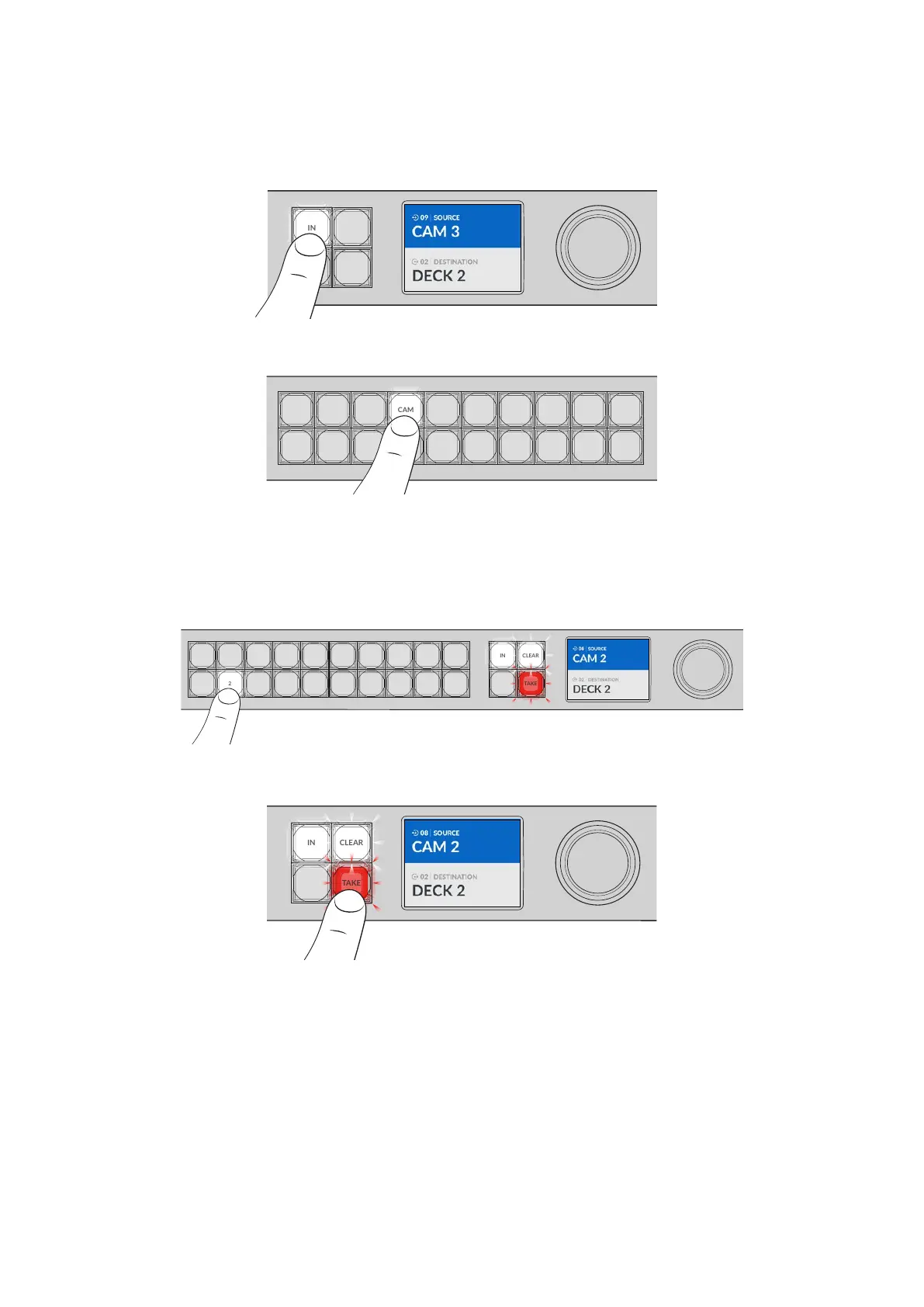

1 Press the ‘in’ button to enable the source selection.
COMP SWITCH KEY ST/C
6 7 8 9
M/VIEW
0
OUT
CLEAR
TAKE
MON
DECK EDIT CAM STREAM
1 2 3 4 5
LOCK
MENU
SET
IN
IN
2 Press the shortcut button labeled ‘CAM’.
COMP SWITCH KEY S T/C
6 7 8 9
M/VIEW
0
OUT
CLEAR
TAKE
MON
DECK EDIT CAM STREAM
1 2 3 4 5
LOCK
MENU
SET
IN
TAKE
OUT
CAM
The filter now makes all inputs available that includes CAM in their label, filtering out other
equipment and then arranges them on the numbered pushbuttons in numerical order.
3 Press button ‘2’ to select ‘CAM 2’.
Button ‘2’ will illuminate and you can see the selected source and input on the LCD.
COMP SWITCH KEY ST/C
6 7 8 9
M/VIEW
0 OUT
CLEAR
TAKE
MON
DECK EDIT CAM STREAM
1 2 3 4 5
LOCK
MENU
SET
IN
TAKE
CLEAR
IN
2
4 Press the ‘take’ button to confirm and complete the routing change.
COMP SWITCH KEY ST/C
6 7 8 9
M/VIEW
0
OUT
CLEAR
TAKE
MON
DECK EDIT CAM STREAM
1 2 3 4 5
LOCK
MENU
SET
IN
TAKE
CLEAR
IN
11Shortcut Buttons
