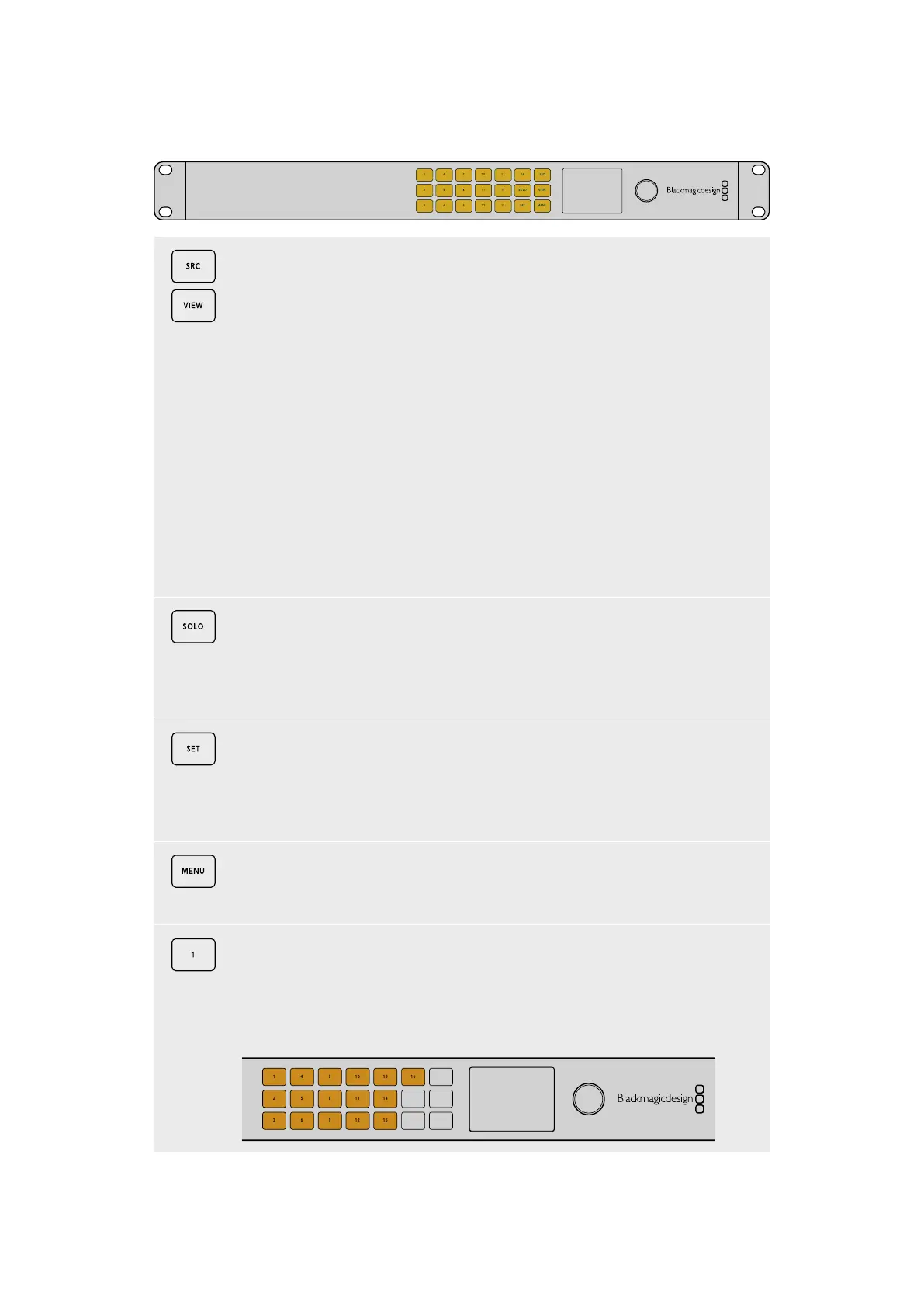

Control Buttons
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SOLO
SET
SRC
VIEW
MENU
Blackmagic MultiView 16
ETHERNET SD/HD/3G/6G-SDI IN
REF IN
LOOP OUT
IN
HDMI OUT 6G-SDI OUT HD-SDI OUT
RS-422
CNTRL
USB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SRC and VIEW
Use the ‘src’ and ‘view’ buttons to open the ‘source’ and ‘view’ settings. These
buttons let you select which input source you want to display on a desired view.
1 Press the ‘view’ button to open the view screen. The view section on the
lower half of the LCD will be active.
2 Press a numbered button on the control panel to select your desired view,
oralternatively you can use the rotary knob to scroll through the views.
Confirm your setting by pressing the ‘set’ button.
3 Press the src button. The source section on the upper half of the LCD
willbecome active.
4 Press a numbered button on the control panel to select your desired input,
or alternatively you can use the rotary knob to scroll through your inputs
on the LCD. If you have customized your input labels, they will be displayed
accordingly in the upper half of the LCD.
5 Press the ‘set’ button to confirm the setting.
SOLO
You can monitor a view in fullscreen mode by pressing the ‘solo’ button. With solo
enabled, press the number buttons on the control panel to select which view to
monitor, or you can use the rotary knob to scroll through your views. Press ‘solo’
again to return to the multi view layout.
SET
Press the ‘set’ button to select and confirm settings. When you press the set
button to select a menu item, the adjustable setting field will become underlined
and both the ‘set’ and ‘menu’ buttons will flash. After changing a setting, press the
set button again to confirm the change.
MENU
Press the ‘menu’ button to open the settings screen. After adjusting a setting,
youcan also press the ‘menu’ button to return to the home screen.
NUMBERS
The number buttons are used to select your inputs and views for the source and
view settings.
The buttons can also be used to select which SDI input you want to use for the
‘audio in’ setting.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SOLO
SET
SRC
VIEW
MENU
Blackmagic MultiView 16
ETHERNET SD/HD/3G/6G-SDI IN
REF IN
LOOP OUT
IN
HDMI OUT 6G-SDI OUT HD-SDI OUT
RS-422
CNTRL
USB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
44Blackmagic MultiView 16
