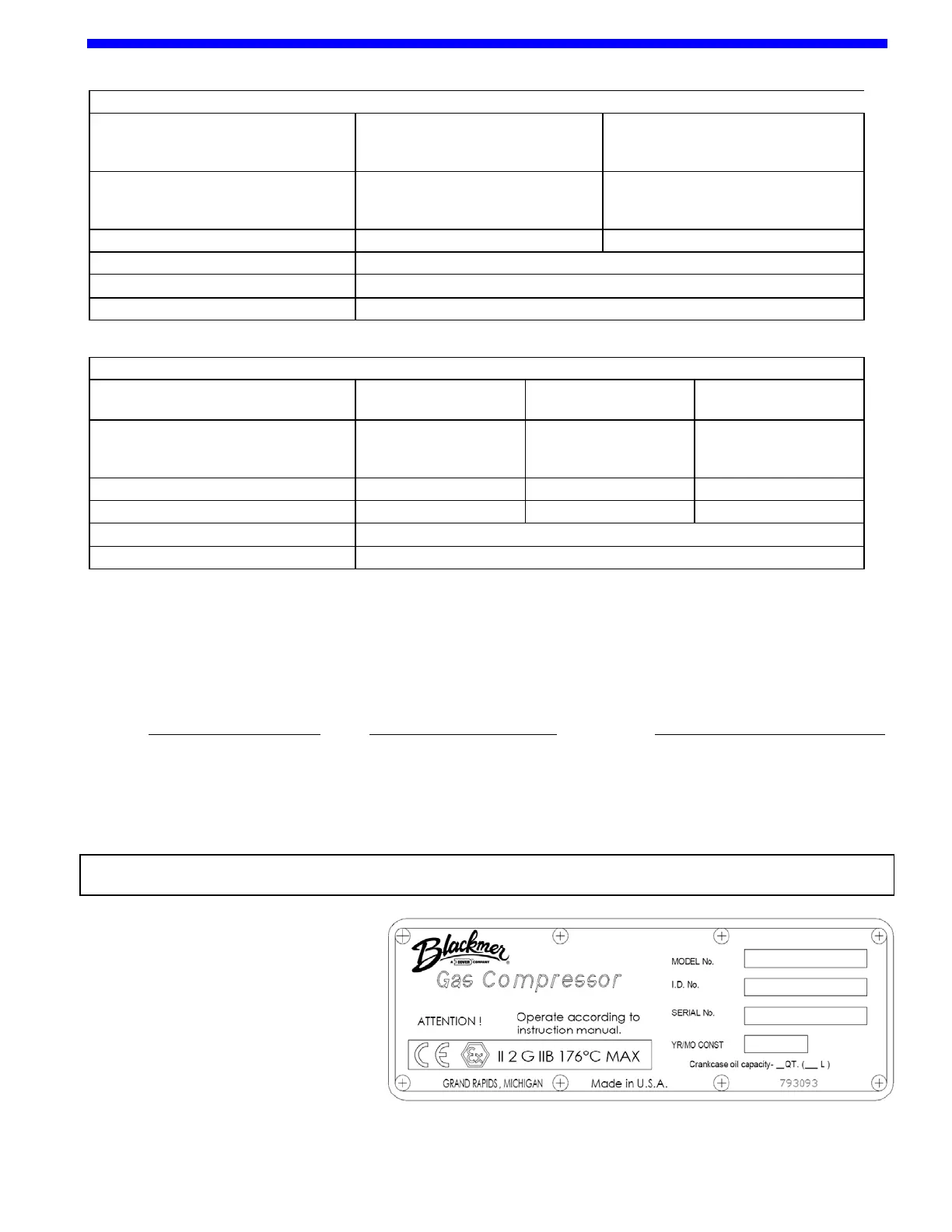

GENERAL INFORMATION
CB9A-021 page 3/24
Table 1 - COMPRESSOR DATA
Air Cooled
Single-Seal Models
Double-Seal Models
Triple-Seal Models
HD161C / HD161B
HD162C / HD162B
HD163C / HD163B
HD361C / HD361B
HD362C / HD362B
HD363C / HD363B
Displacement
@ 350 rpm - CFM (m
3
/hr)
@ 825 rpm - CFM (m
3
/hr)
7.16 (12.2)
16.9 (28.7)
15.3 (26.0)
36.0 (61.2)
Max. BHP (kw) 10 (7.5) 15 (11)
MAWP - psia (Bar) 350 (24.1)
Maximum Discharge Temperature
350F (176C)
Rotation Direction Bi-Directional
NOTE: Reduce maximum speeds by 9% for continuous duty operation.
Water
Cooled
Double-Seal Models
Triple-Seal Models
HDL322C
HDL323C
HDL342C
HDL343C
HDL362C
HDL363C
Displacement
@ 350 rpm - CFM (m
3
/hr)
@ 825 rpm - CFM (m
3
/hr)
3.81 (6.47)
9.00 (15.3)
6.89 (11.7)
16.25 (27.6)
15.3 (26.0)
36.0 (61.2)
Max. BHP (kw) 15 (11) 15 (11) 15 (11)
MAWP - psia (Bar) 1000 (68.9) 750 (51.7) 350 (24.1)
Maximum Discharge Temperature
350F (176C)
Rotation Direction Bi-Directional
NOTE: Reduce maximum speeds by 9% for continuous duty operation.
Critical Dimensions: Refer to Document CB241.
The models listed above are single-stage, vertical, air-cooled or water-cooled reciprocating style compressors with
single acting cylinders. Single, double or triple seal arrangements are available.
The 'C' suffix models listed have a needle bearing on the wri
st pin and include an external oil filter as standard.
The 'B' suffix models listed have a bronze bushing on the wrist pin; the external oil filter is an available option.
MODEL: HD ID#: SERIAL NO:
Before proceeding:
1.
Note the nameplate data in the space provided above.
2.
Obtain the appropriate parts lists for the model in question
.
3.
These compressors are used on a wide variety of gasses. Before doing any work on the compresso
r,
be certain of the identi
fication of the gas and the precautions to be followed when around that gas.
Manuals and Parts Lists for Blackmer products may be obtained from
Blackmer's website (www.blackmer.com) or be contacting Blackmer's Customer Service.
NAMEPLATE DATA
A nameplate is attached to the side of all
Blackmer compressors showing the
Model No., I.D. No., and Serial No.
These numbers should be available
when information or parts are needed for
a particular unit.
The basic size and type of the
compressor is indicated by "Model No."
A suffix letter is used to indicate the
version.
For detailed ATEX Declaration information, refer to FORM 576 found in the Certification section of Blackmer’s website.
