Page 13

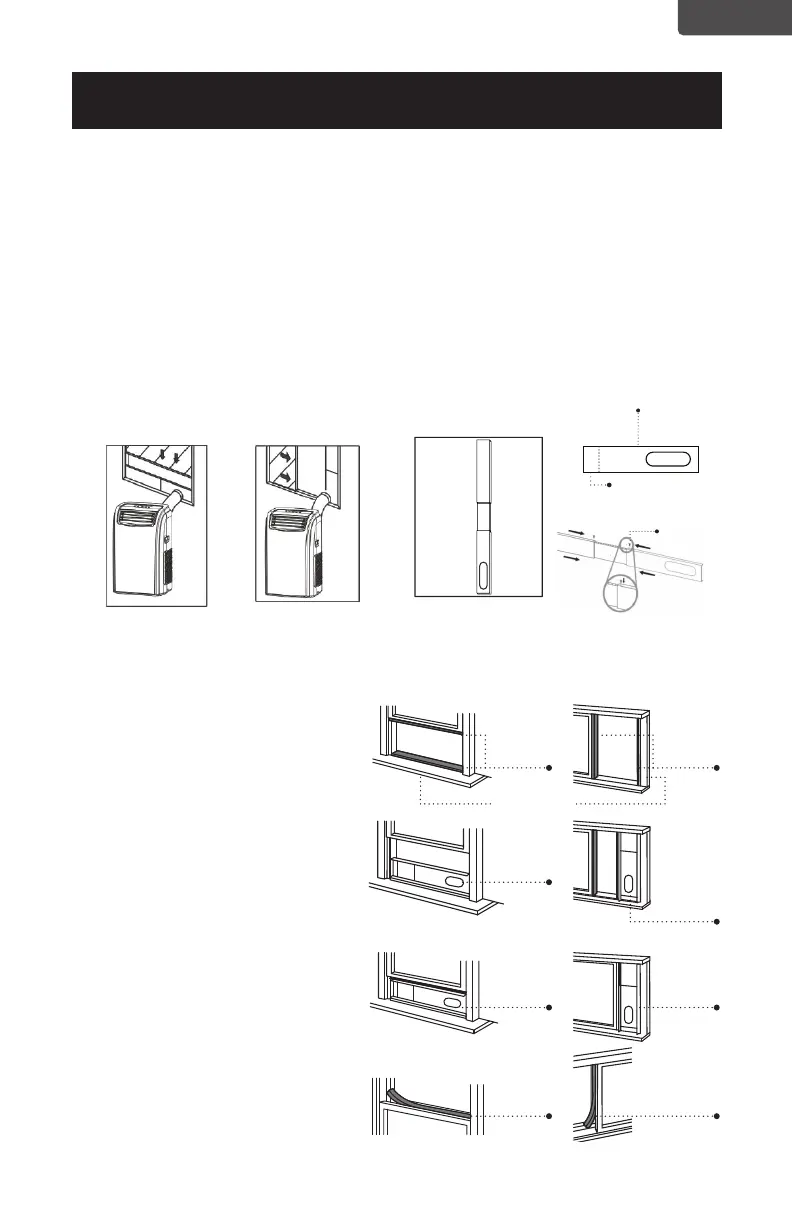

WINDOW SLIDER KIT INSTALLATION
Your window slider kit has been designed to t most standard “Vertical” and
“Horizontal” window applications; however, it may be necessary for you to
improvise/modify some aspect of the installation procedures for certain types of
window. Minimum and maximum window openings:
MAXIMUM : 50” (127 cm) MINIMUM: 20.5” (52 cm)
NOTE: · A plastic locking screw is holding the window slider kit together during shipment.
Prior to installation, remove the locking screw, adjust to desired length and use
provided locking screw to secure.
NOTE: · If the window opening is less than 20.5” the minimum length of the window slider
kit, cut the one with a hole in it short to t for the window opening. Never cut out
the hole in window slider kit.
DOUBLE-HUNG SASH/SLIDING CASEMENT
WINDOW INSTALLATION
1. Cut the foam seal (adhesive type)
to the proper length and attach it
to the window sash.
2. Attach the window slider kit to the
window sash. Adjust the length of
the window slider kit according to
the width of window. Shorten the
adjustable window kit if the width
of window is less than 20.5”.
3. Cut the foam seal (adhesive type)
to the proper length and attach it
on the top of the window.
4. Close the window securely against
the window slider kit.
5. Secure the window slider kit to the
window sash.
6. Cut the foam seal to an
appropriate length and seal the
open gap between the top window
frame and outer window frame.
Horizontal Window
Vertical Window Window Slider Kit
Cut on opposite
side of hole.
SET UP & USE
Foam
Seal
Foam
Seal
Foam
Seal
Window
Slider Kit
Window
Slider Kit
20.5”~50”
Foam
Seal
Window
Slider Kit
Window
Slider Kit
20.5”~50”
Window Sash
Locking
screw
Window slider kit can be secured
by inserting the locking screw
ENGLISH
