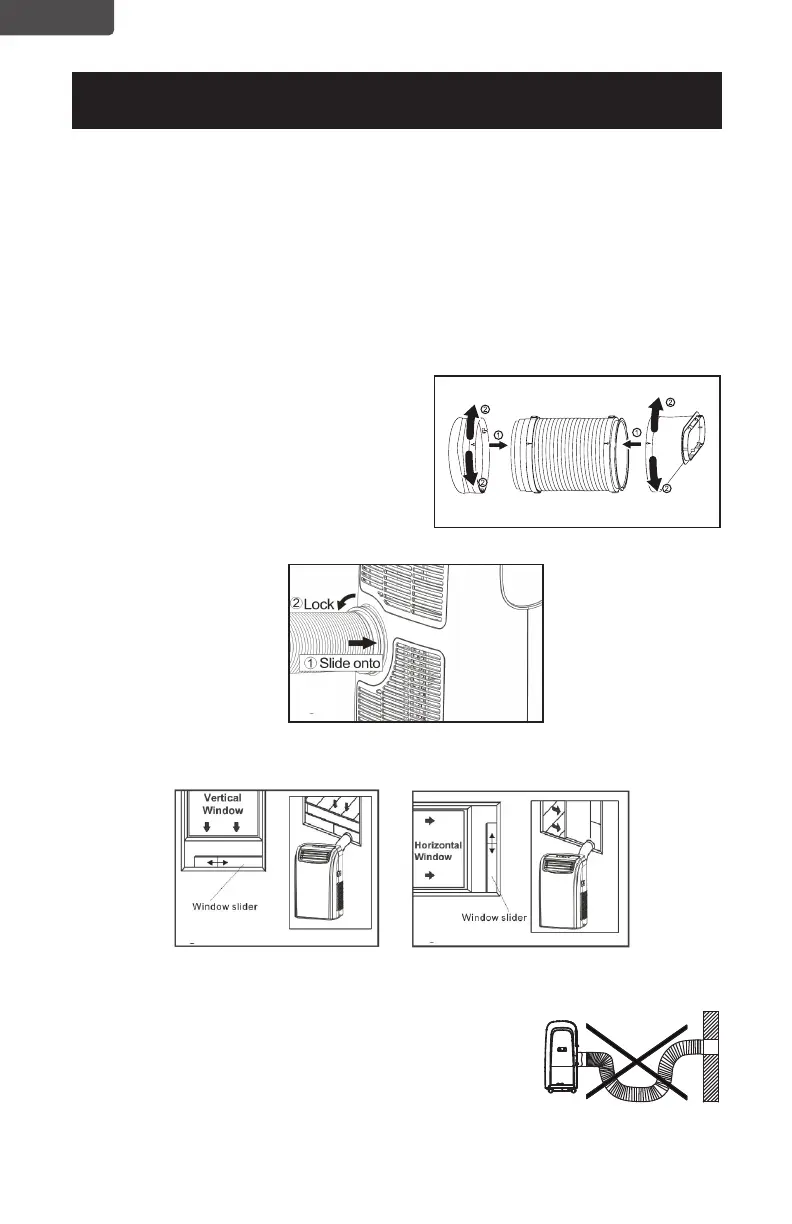

EXHAUST HOSE INSTALLATION
The air exhaust hose and hose inlet must be installed or removed from the portable
air conditioner in accordance with the way it is being used:
COOL, AUTO, DEHUMIDIFY, HEAT (Heat model BPT08HWTB only):
Air exhaust hose and hose inlet should be connected to the portable air conditioner.
FAN: Air exhaust hose and hose inlet should be disconnected from the portable air
conditioner.
1. Align Arrow of hose inlet and hose.
Turn either clockwise or counterclockwise
to secure (Fig. 1).
2. Align arrow of hose outlet and hose.
Turn either clockwise or counterclockwise
to secure (Fig. 2).
3. Attach the hose inlet onto the back of the unit (Fig. 3).
4. Afx the hose outlet into the window slider kit and seal (Fig. 4 & 5).
.
NOTE: The exhaust hose can be compressed or extended
moderately, but it is desirable to keep the length to a
minimum. Also make sure that the hose does not
have any sharp bends.
Hook
SET UP & USE
Fig. 4 Fig. 5
Fig. 1 Fig. 2
Fig. 3
ENGLISH
To Next Page
