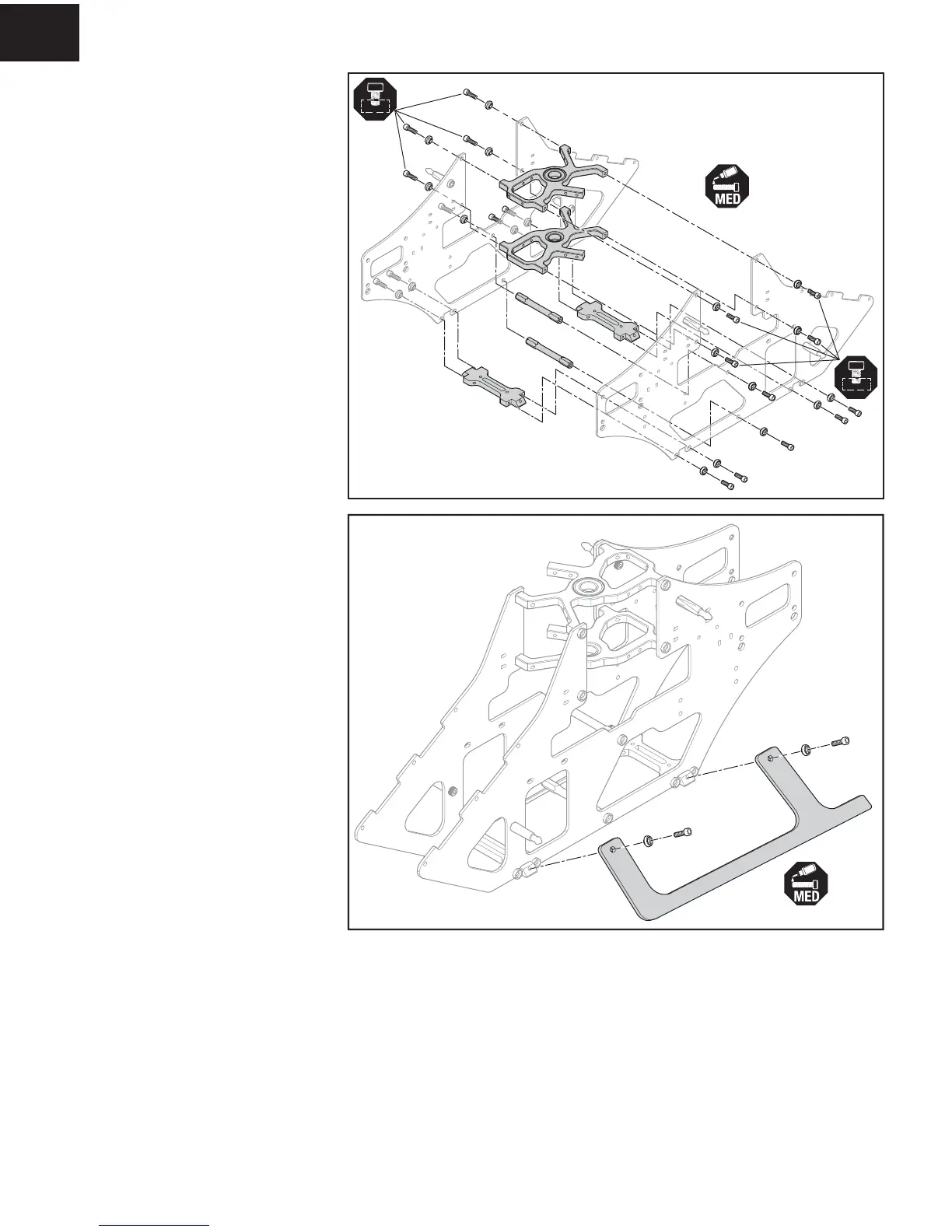

1. Attach the upper and lower bearing blocks to the
frame sides using 3x10mm screws, machined
washers and medium thread-locking compound.
The upper block has two threaded holes in the rear
of the block. Do not fully tighten the screws in the
bearing blocks at this time.
2. Slide the main shaft through both bearing blocks to
ensure the blocks are properly aligned with each
other.
3. Set the frame sides upright on a fl at surface, with
the bottom of both sides fully in contact with the
work surface.
4. Tighten all of the bearing block screws fully and
remove the main shaft from the bearing blocks.
5. Attach two landing gear mounts and two frame
posts to the frame sides using 3x10mm screws,
machined washers and medium thread-locking
compound.
Attach the landing gear to each side of the frame using
3x10mm screws, machined washers and medium
thread-locking compound.
Step F3
Step F2
