EN
7
Frame side removed for clarity

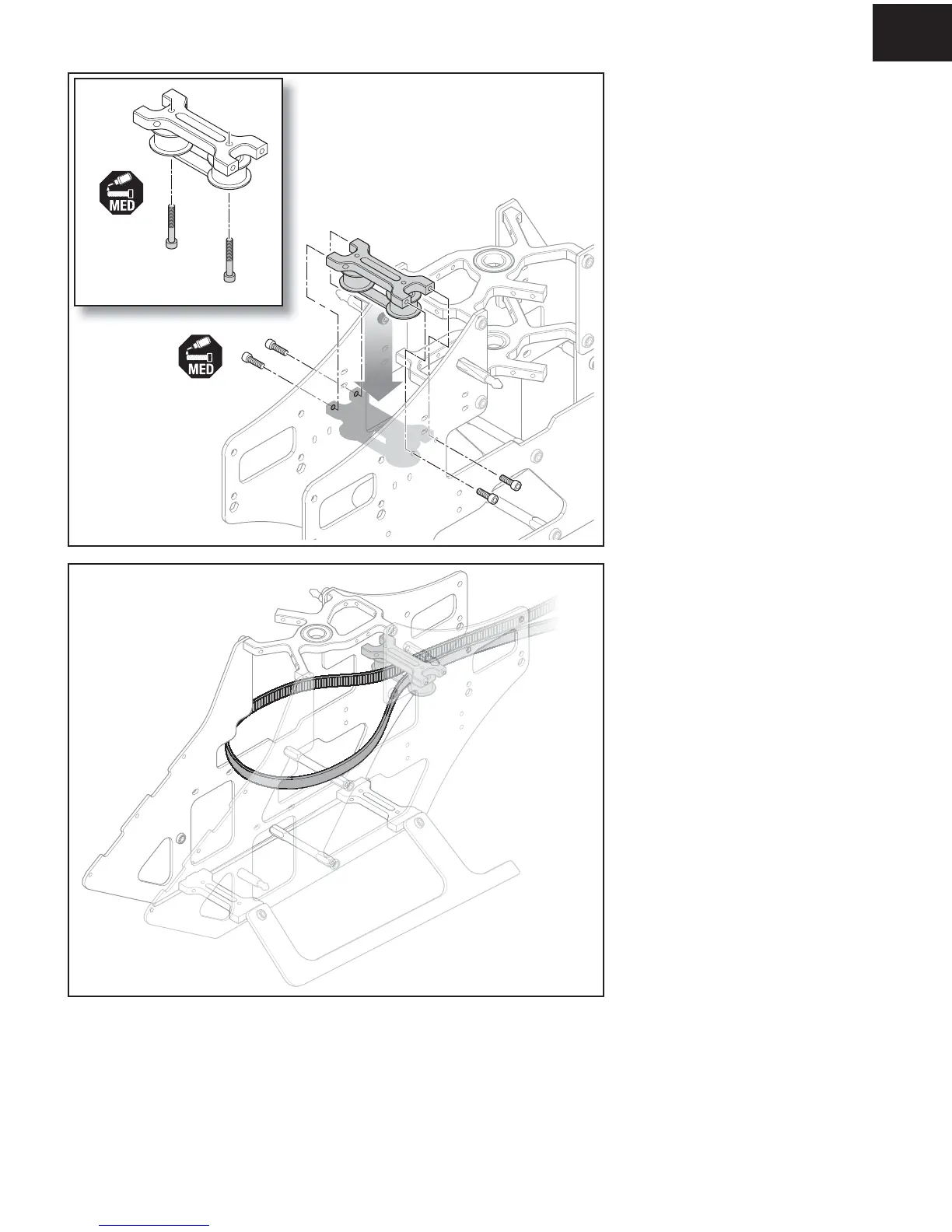

1. Remove the 3x18mm socket head cap screws of
the tail belt guide assembly and re-install them
using medium thread-locking compound. Ensure
the thread-locking compound does not contact the
bearings of the tail guide assembly.
2. Install the tail belt guide between the frame sides
using 3x10mm screws and medium thread-locking
compound.
Thread the tail belt through the belt guide with the teeth
of the belt facing inward. Pull enough of the belt through
the guide to form a large loop, as shown.
Be careful to not crimp the belt.
Step F4
Step F5
