BLADEZ BF-390E Elliptical
ASSEMBLY INSTRUCTIONS CONTINUED
3.

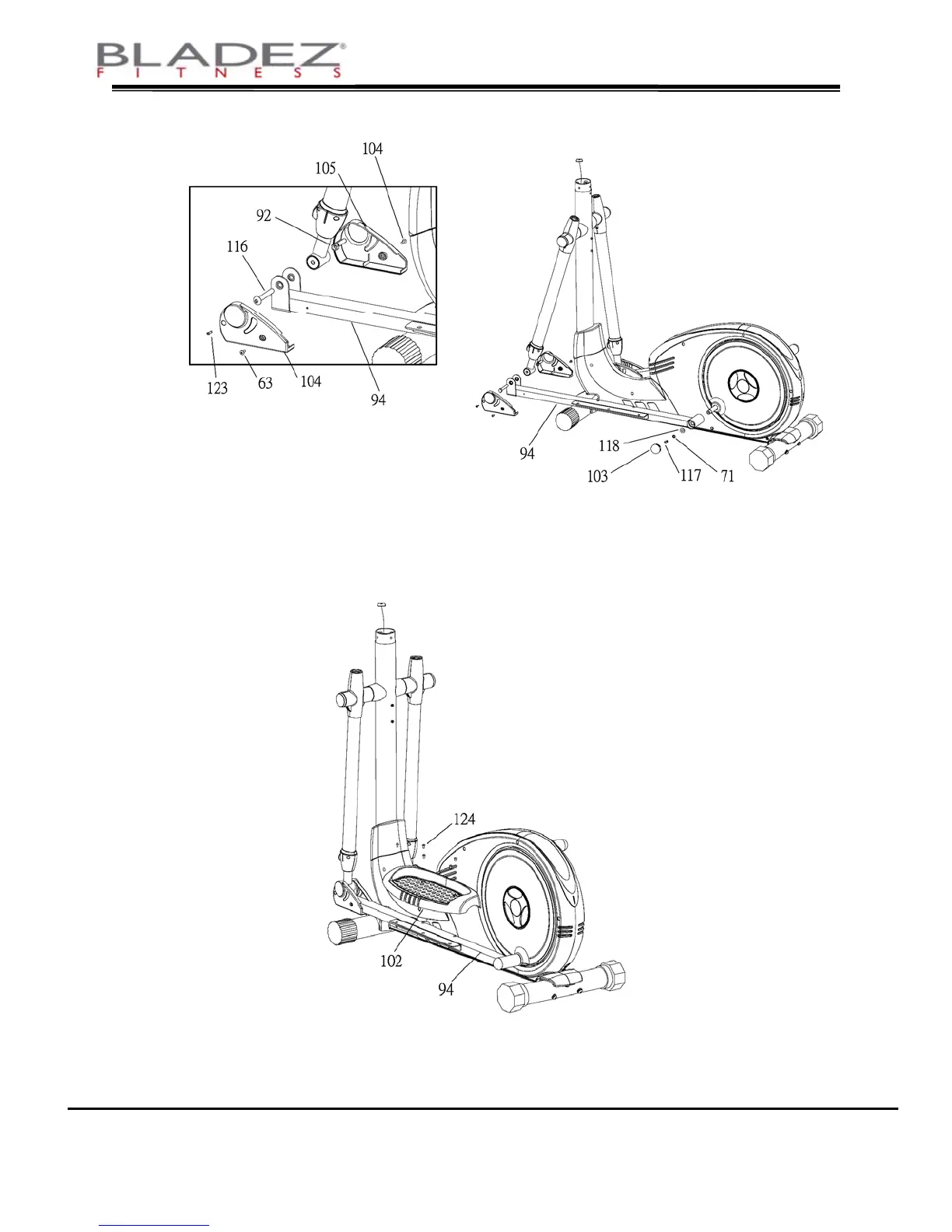

To assemble the Pedals, attach Pedal Assembly (94, 95) to the axis of Rotary Plate
with Allen Bolt (117), Spring Washer (71) and Washer (118) and then attach End Cap
(103). Connect Pedal Assembly (94, 95) with Rocker (L) and secure with Allen Bolt
(116) and Nylon Nut (92). Secure Cover (L) (104) and Cover (R) (105) with Self
Tapping Screw (123) and Screw (63).
4. To attach the Pedal, put Pedal (102) on Pedal Assembly (94) and secure with Bolts
(124) according to above picture.
