ASSEMBLY INSTRUCTIONS
Step 1

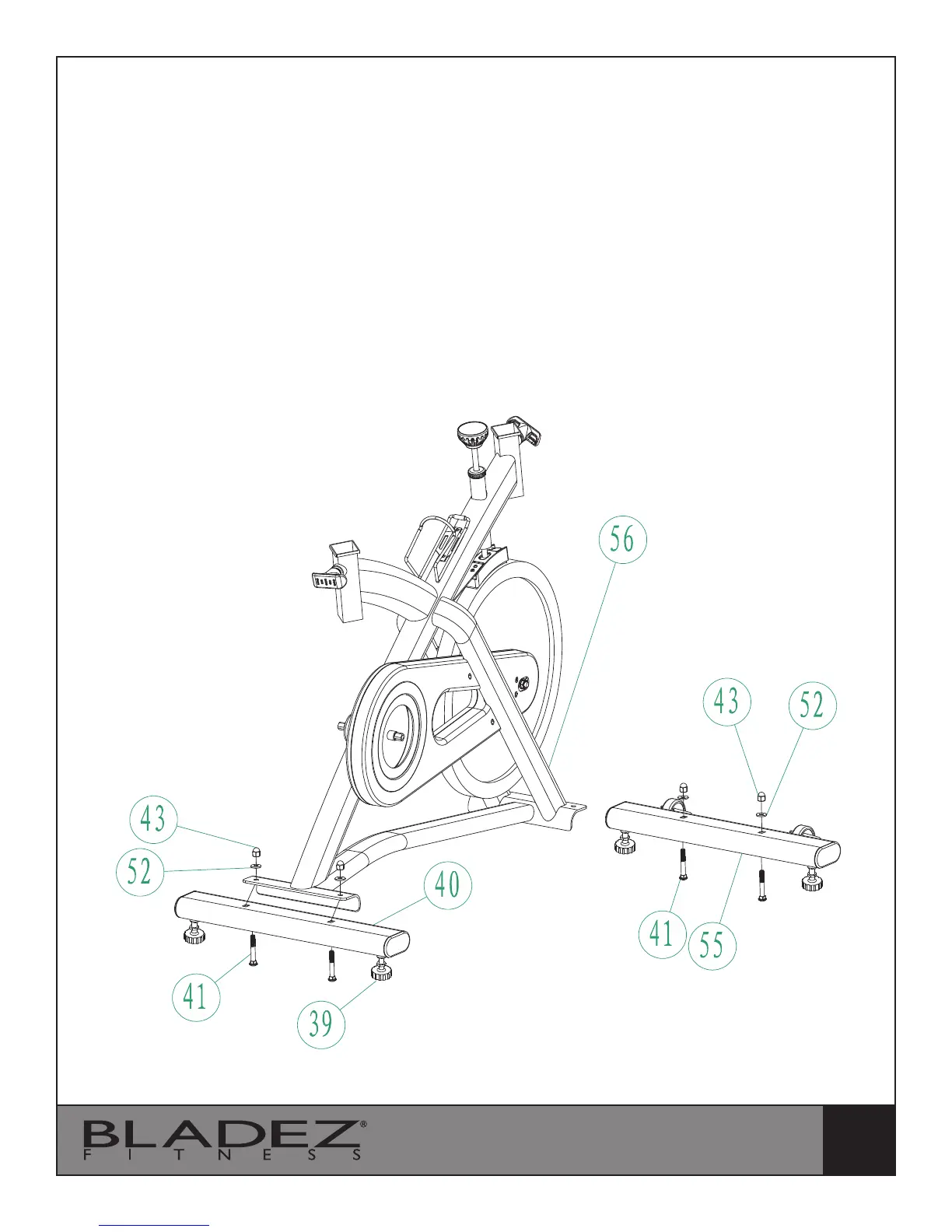

• Attach the Front Stabilizer (55) onto the Main Frame (56) with Carriage Bolt (41),
Flat Washer (52) and Cap Nut (43) and then tighten fully.
• Attach the Rear Stabilizer (40) onto the Main Frame (56) with Carriage Bolt (41),
Flat Washer (52) and Cap Nut (43) and then tighten fully.
• Note:e knob (39) is adjustable. If the ground is not at, you can adjust it.
