15

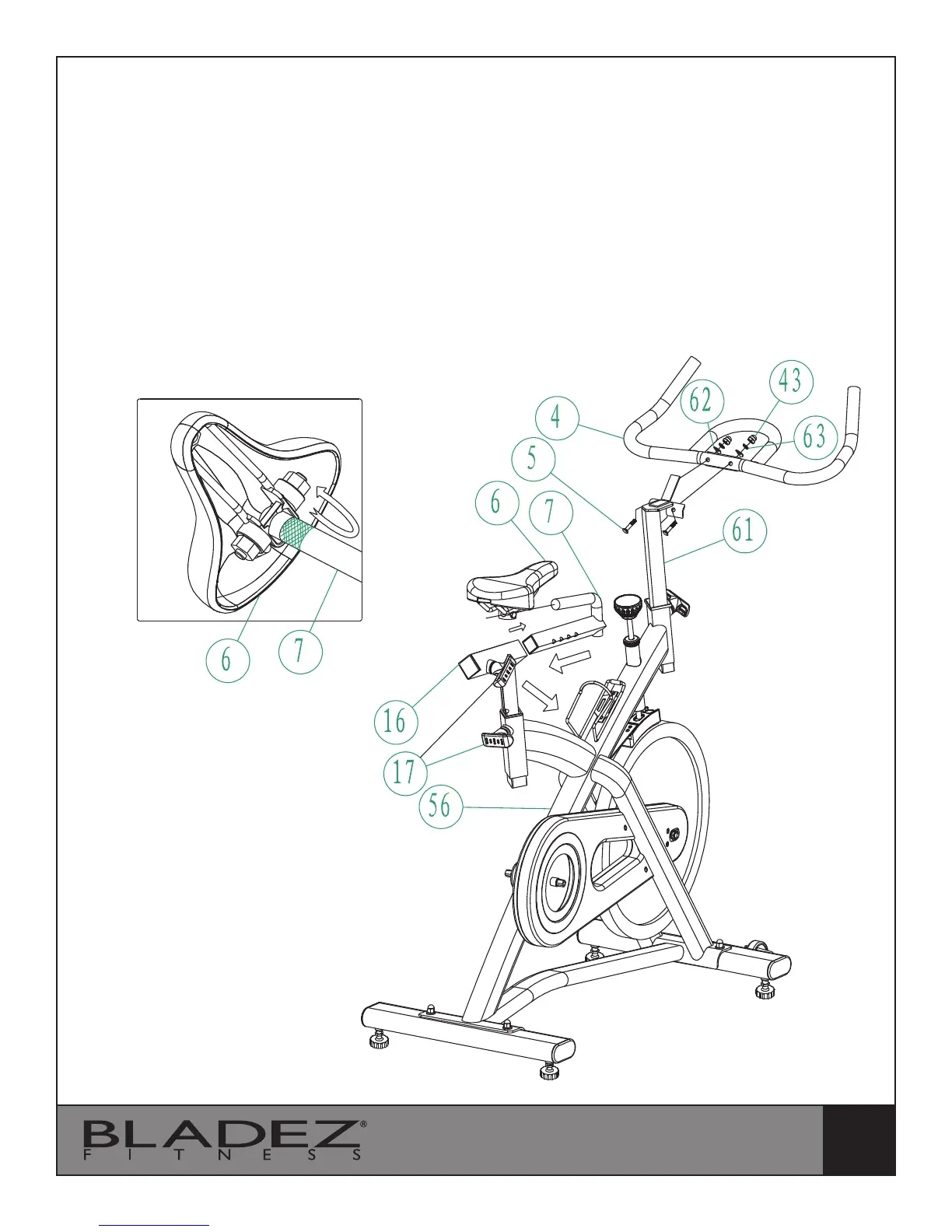

Step 3
• Carefully pull the T-shaped Knob (17) on the adjustable T-shaped Seat Post (16),
and slide the Saddle Supporting Bar (7) into the top tube. en adjust this bar to
a certain position, make sure it is not removable. Next, slide the Saddle (6) onto
the Saddle supporting bar (7), x the Saddle position by securing the pre-xed bolt
tightly.
• Attach the Handlebar (4) with the adjustable Handlebar Post Bar (61) by using the
Carriage Bolt (5), Curved Washer (62), Spring Washer (63) and Cap Nut (43).
