1-7D Operating Instructions
Maintenance

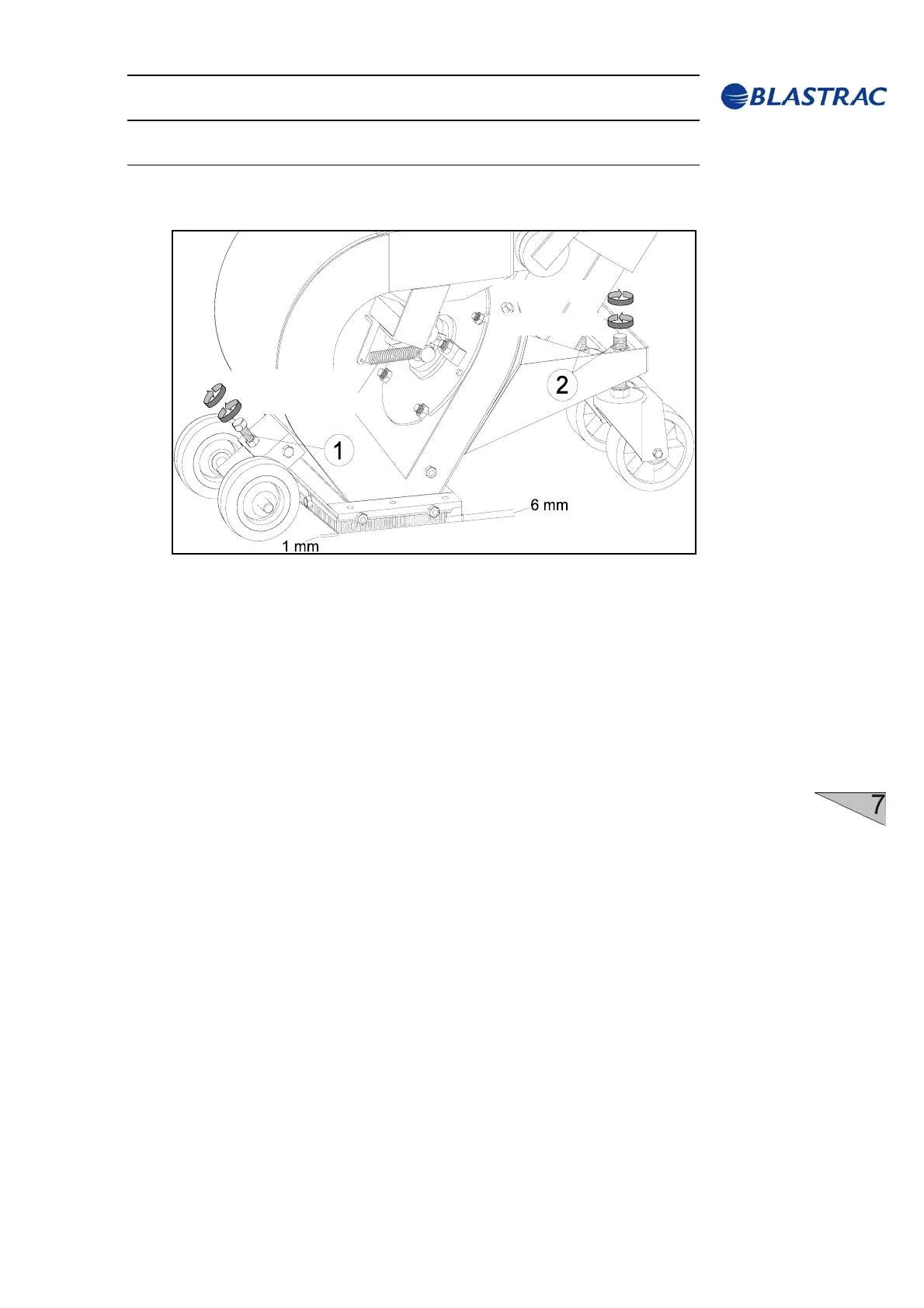

Fig. 7.4
Distance bigge
Distance smaller
Distance bigger
Distance smaller
Front setting screw (1) quantity: 1
Rear setting screw (2) quantity: 2
Adjust the height with the setting screws until the correct distance of 6
mm has been reached.
With the ISPC Blastrac/EBE model 1-7D the adjustment is done using
3 setting screws (one each at the rear wheels and one at the front drive
wheel bracket).
The height of the brush seals should be maximum 1 mm above the
surface. Adjustment is effected through slotted holes.
