Operating Instructions 1-7D
Maintenance
Each time the tune up kit is replaced, make sure that the cage
retaining plate is positioned correctly on the positioning pin
of the blast housing. Do not remove any fixings.
1
2

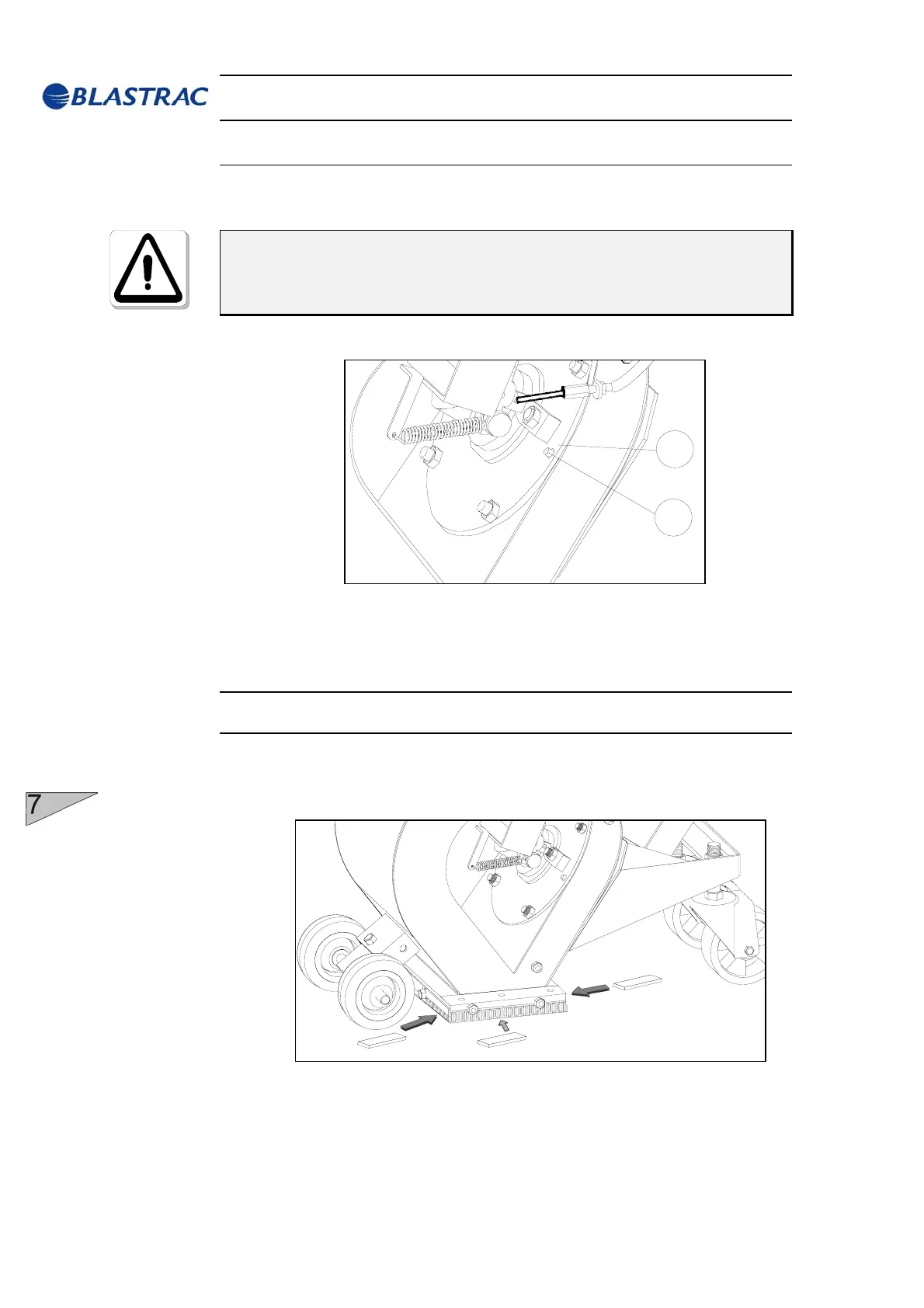

Fig. 7.2
1 Cage retaining plate with positioning hole
2 Positioning pin
7.5 Setting the magnetic and brush seals
The adjustment height of the magnetic seals, parallel to the surface to
treated, should be set to about 6 mm everywhere.
Fig. 7.3
For the height adjustment an 6 mm (stainless) steel strip is shifted
below the magnetic sealing.
6
