7.7 Changing the liners
The liners can only be changed when the tune-up kit is removed.
Demounting:

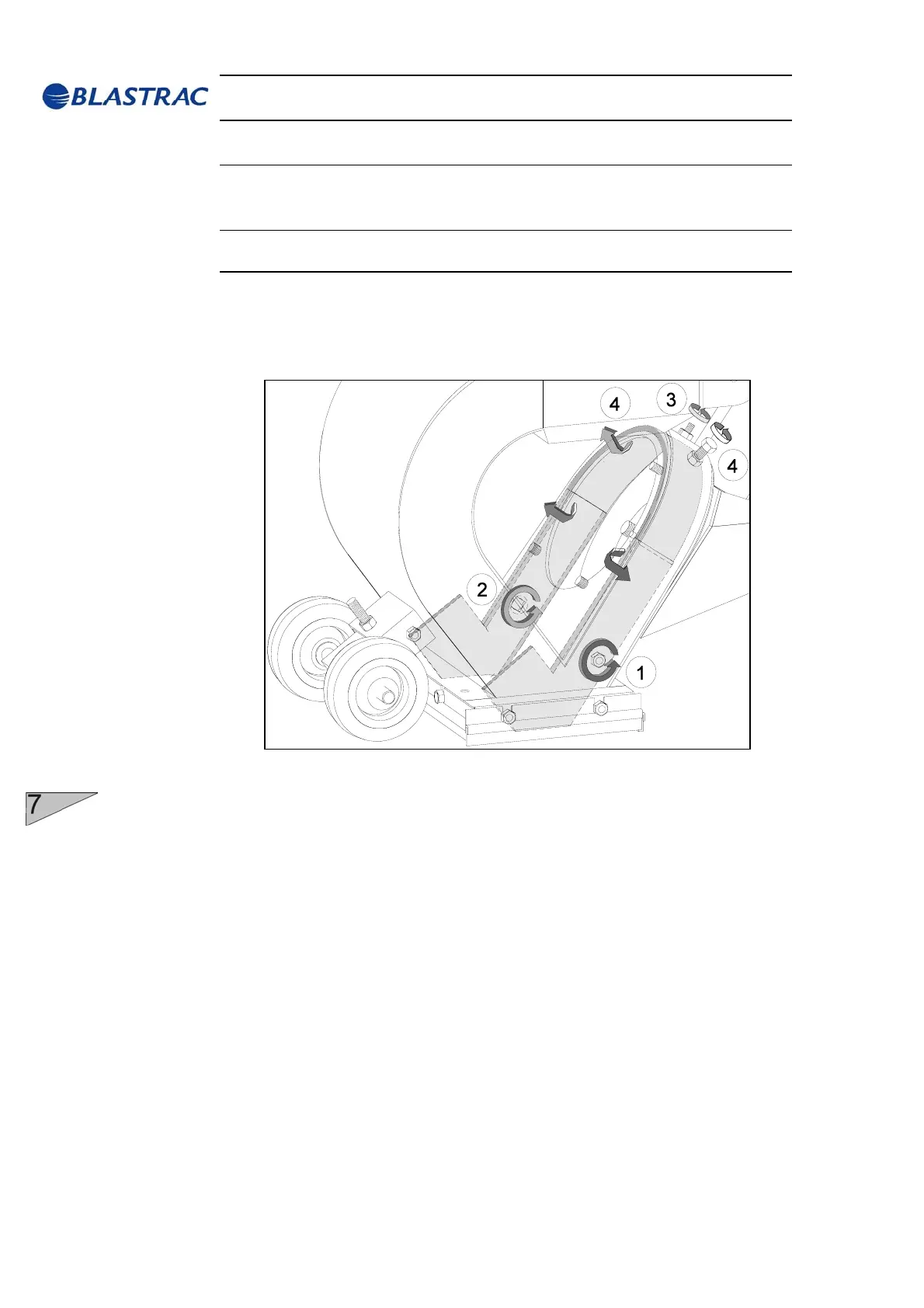

Fig. 7.7
1 Loosen the pressure screw (3) of the top liner.
2 Loosen the fastening screws (1+2) for the left and right liners, turn
the liners towards the inside of the blast housing and take them
out at the bottom of the housing.
3 If present, loosen the fastening screws (4) of the top liner.
4 Take the top liner out at the bottom of the housing.
