1-7D Operating Instructions
Maintenance
Mounting:

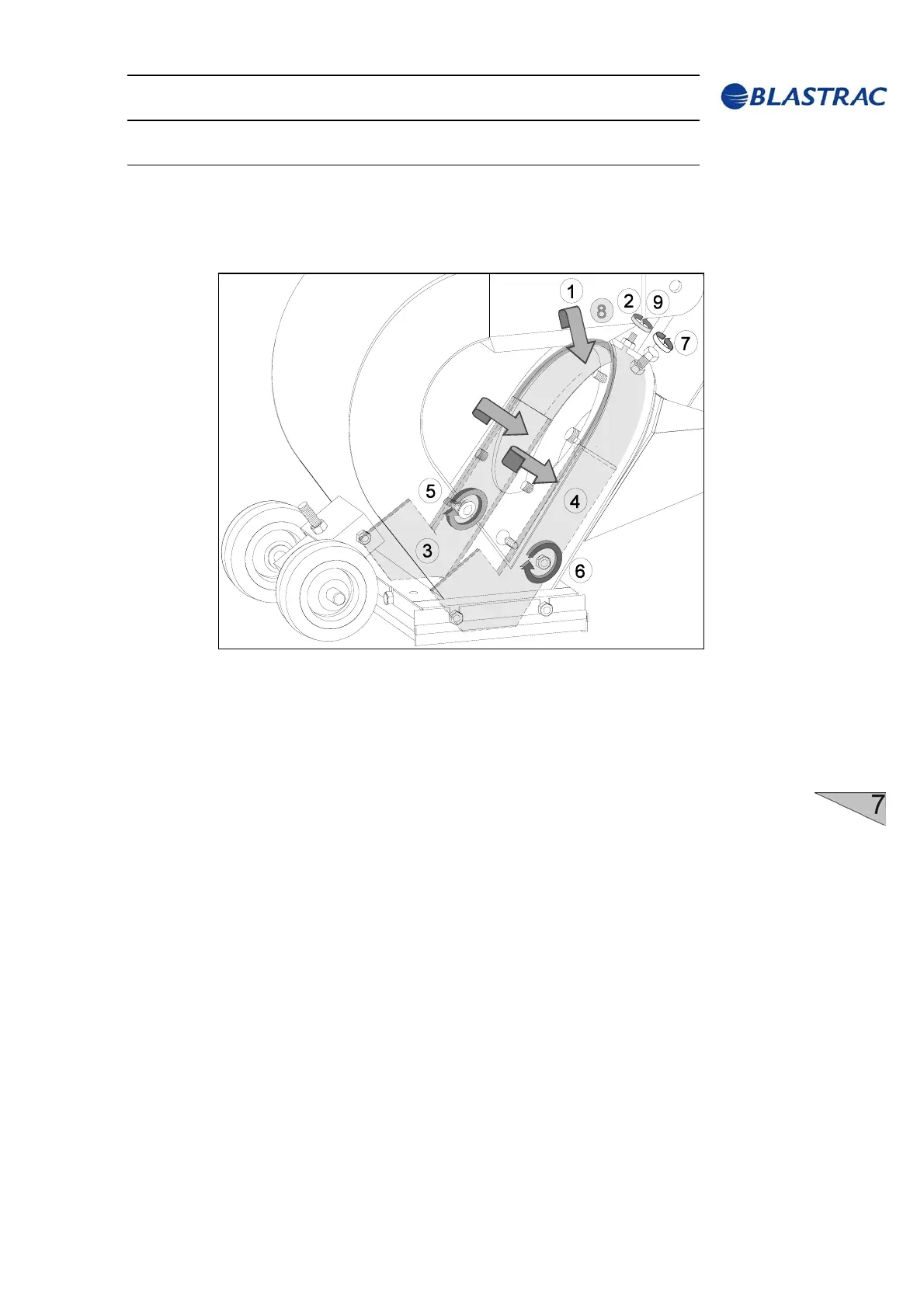

Fig. 7.8
1 Prior to mounting the liners, check all threads for contaminants
and clean them if necessary.
2 Place the top liner (1) inside the housing.
3 Place the side liners (3+4) inside the housing, in a way that the
liner sticks out approx. 2 mm at the bottom of the housing. Fasten
the side liners with nuts (5+6).
4 Mount the top liner pressure screw (9). Make sure that the top
liner sits close at the edges of the side liners. Tighten the pressure
screw (7) of the top liner slightly and press the top liner against
the side liners. Lock the screw with a nut.
