Blatchford Echelon - Construction

938280SPK2/1-0121
5
Principal parts:
• Hydraulic Body Assembly including pyramid (aluminum/St. Stl./titanium)
• Carrier Assembly (aluminum/St. Stl.)
• Heel & Toe Springs (e-carbon)
• Spring Attachment Screws (titanium/St. Stl.)
• Glide Sock (UHM PE)
• Foot Shell (PU)

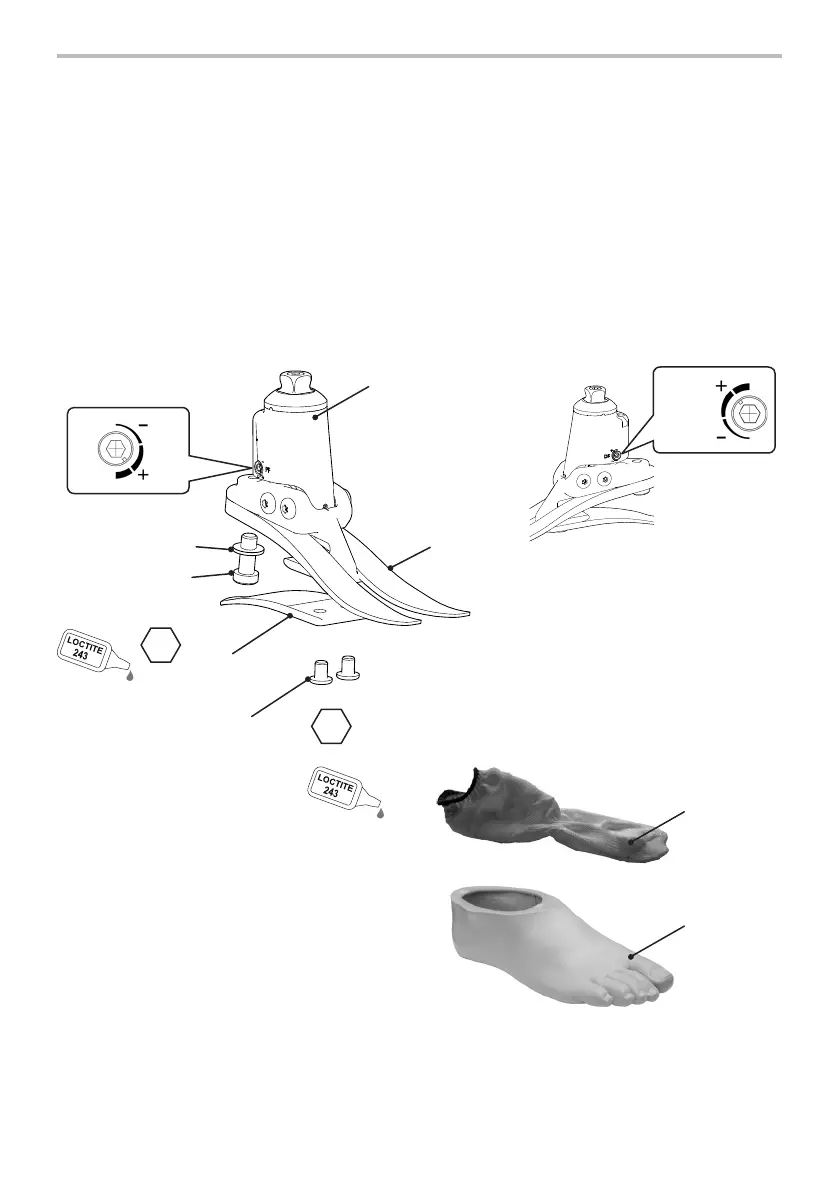

3 Construction
Glide
Sock
Foot
Shell
Toe
Spring
Min 1
Dorsiexion
Valve Adjuster
(opposite the
plantar exion
adjuster)
DF
Heel Spring
Screws
(Loctite 243)
Plantar Flexion
Valve Adjuster
Toe Spring
Washer
Toe Spring
Screw
(Loctite 243)
PF
Carrier and
Hydraulic Body
Assembly
Heel
Spring
4
15 Nm
8
35 Nm
Min
Max
Min
Max
