Blatchford Echelon - Bench Alignment; Static Alignment

938280SPK2/1-0121
7
6°3°
½½

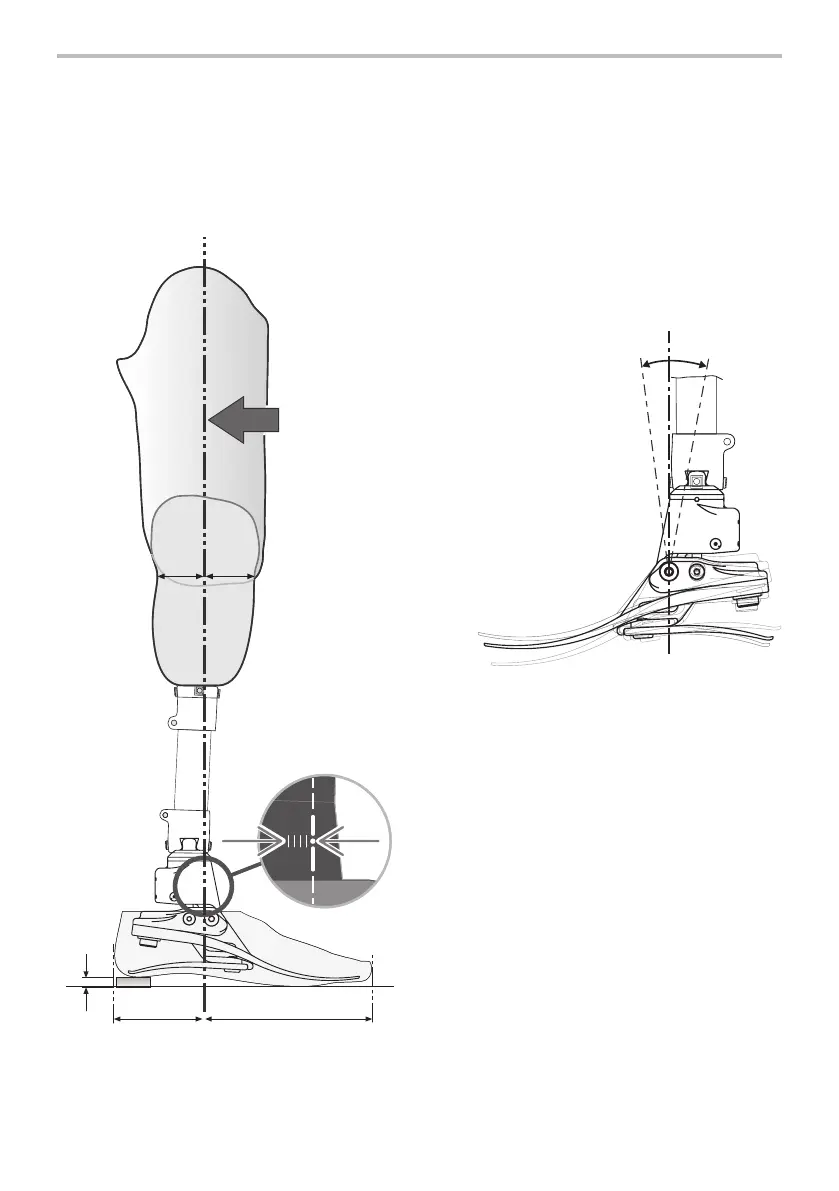

Align transfemoral devices according to tting instructions supplied with the knee.
Keep the build line between pivots as shown, using shift and/or tilt devices as necessary.
Build
Line
7 Bench Alignment
7.1 Static Alignment
Allow for users
own footwear
* *
Approx. 1/3 2/3
Tilt setting
Align limb to achieve range of motion
shown.
