Blaupunkt 690 Series User Manual

18

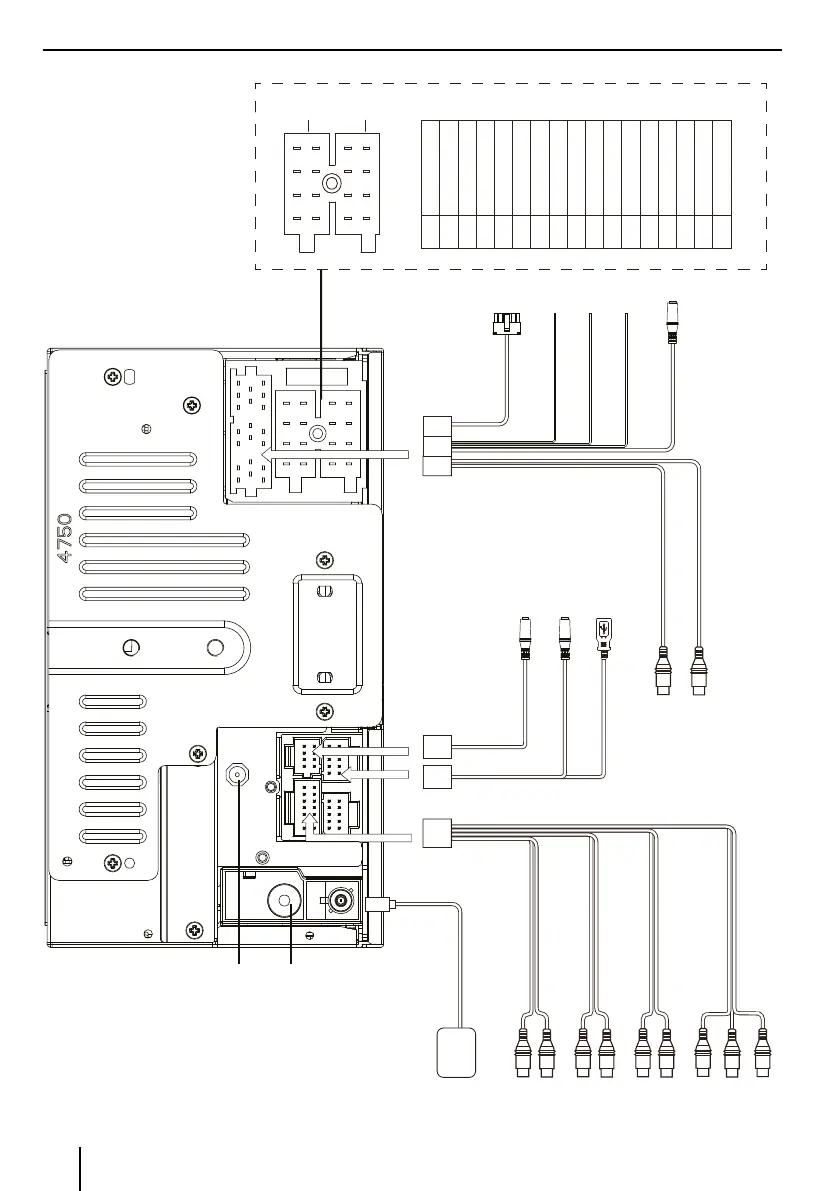

Schemat połączeń
Red(R)
White(L)
LINEOUT FRONT
Black
Red(R)
White(L)
LINEOUT REAR
Black
Brown Brown
SUBWOOFER
Black
AUX IN
Black
Red(R)
White(L)
Yellow
(CVBS)
Black
Brown
Microphone
White
TMC USB
Yellow Yellow
CAMERA VIDEO OUT
Black
SWC Black
Yellow
Green
Blue
PARKING
Pink
REVERSE
Green/White
P.ANT/CNT
Blue
DAB BUS
A
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
B
PIN DEFINITION
A1 NC A2 NC A3 NC A4 ACC A5 P.ANT A6 ILL A7 B+ A8 GND B1 RR+ B2 RR- B3 FR+ B4 FR- B5 FL+ B6 FL- B7 RL+ B8 RL-
Radio Antenna
GPS Antenna
DAB Antenna
Napięcie zasilania anteny DAB: 12 V
Maks. prąd roboczy: 150 mA
