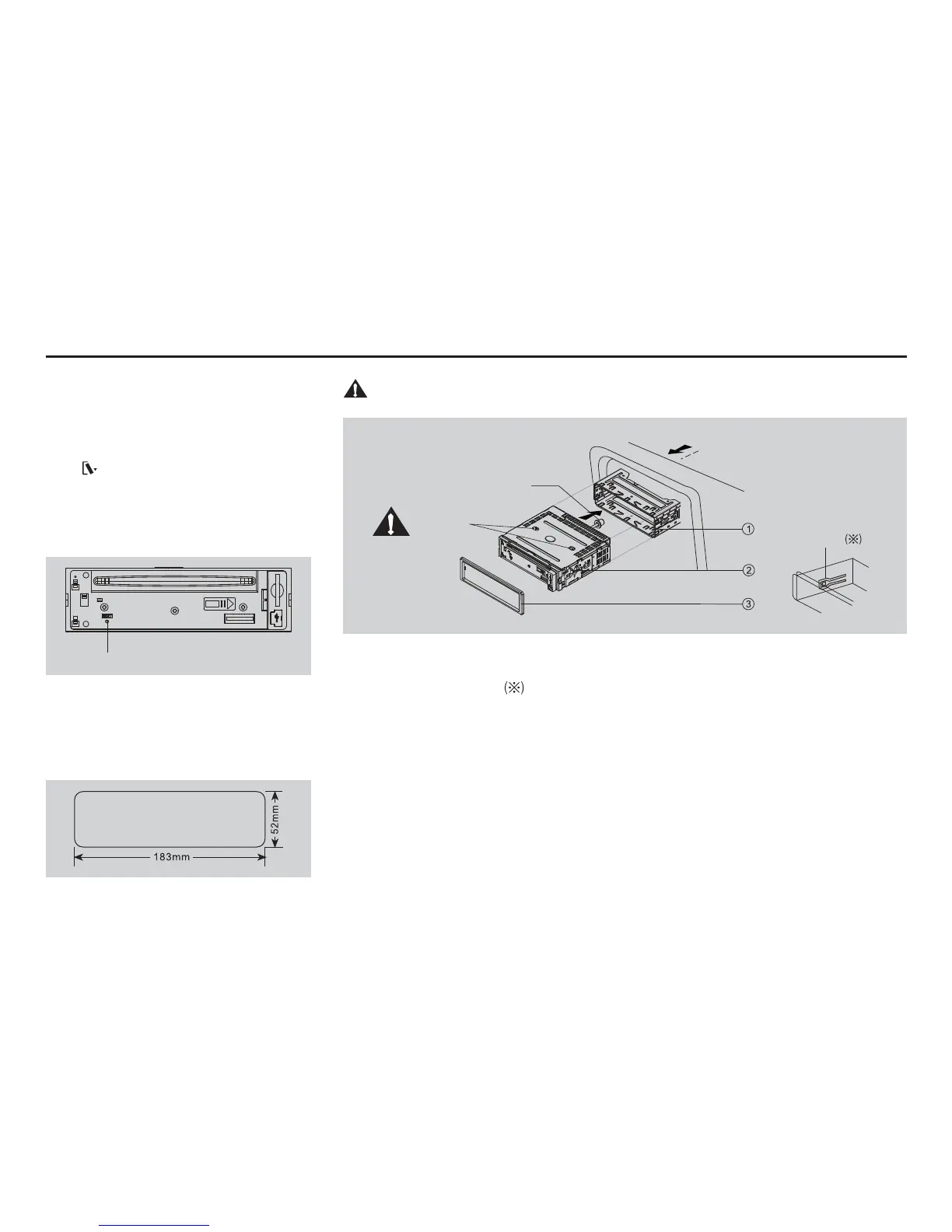

Installation Guide
Installation Procedures
First complete the electrical connections, and
then check for correctness.
Reset
Press
button. At an angle hold the panel to
pull it out. Then press the
RESET
button with
a pointed object to reset the unit to the original
status.
Note:
Press the
RESET
button will erase the
clock and stored stations.
Reset
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below.
The dashboard should be 4.75 mm - 5.56 mm
thick in order to be able to support the unit.
Important:
Remove these two screws before installation. Otherwise, the player will not work.
1. Insert mounting collar into the dashboard, and bend the mounting tabs out with a screw-
driver.
Make sure that lock lever
is flush with the mounting collar (not projecting outward).
2 Secure the rear of the unit.
After fixing mounting bolt and power connector, fix the rear of the unit to the car body by rubber
cushion.
3. Insert trim plate.
Mounting bolt
rubber cushion
Transport
screws
Lock lever
To Next Page
