DMX Channel Values In-Depth (Continued)
Reduced
Mode
Standard
Mode
Channel
Value
What it does
8 11 000 <-> 255 Focus (0% <--> 100%)
9 12 000 <-> 255 Dimmer (0% <--> 100%)
10 13
000 <-> 010
011 <-> 110
011 <-> 115
116 <-> 165
166 <-> 170
171 <-> 220
221 <-> 230
231 <-> 245
246 <-> 255
Strobe
Closed
Strobe (fast <-> slow)
Open
Ramp Up (slow <-> fast)
Open
Ramp Down (slow <-> fast)
Open
Random strobe effect
Open
11 14
000 <-> 019
140 <-> 149
150 <-> 159
160 <-> 169
170 <-> 179
180 <-> 189
200 <-> 219
220 <-> 255
Built-in Programs
(Note: There is a 3-second delay upon value changes)
No function
Auto Program 1
Auto Program 2
Auto Program 3
No function
Sound Active Mode
System Reset
No function

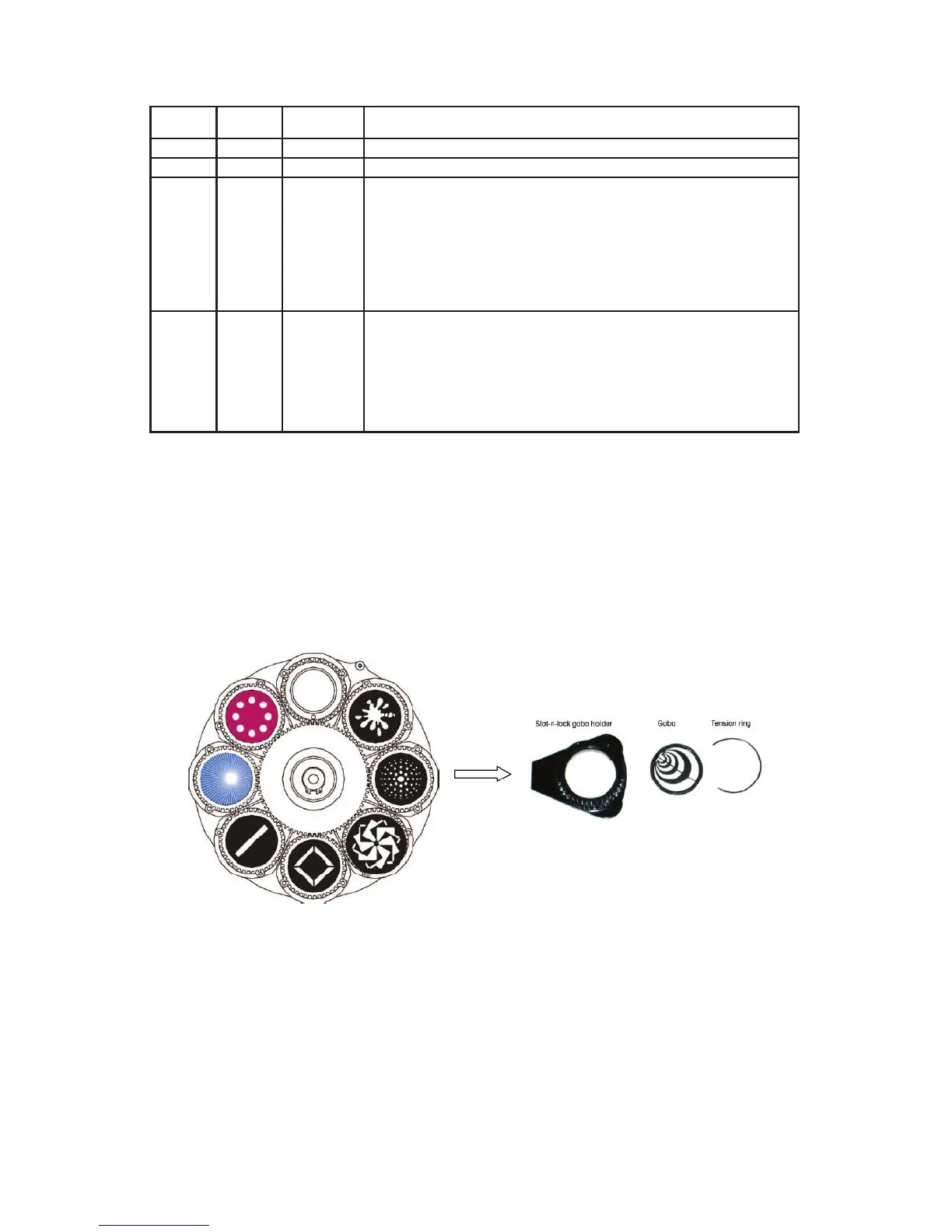

Gobo Replacement
1)Removethegobocoverbyremovingthefourscrewsonthetopofthexturehead.
2) Remove the slot-n-lock gobo from the gobo wheel by lifting up slightly and sliding it out.
3) Using a small tool, pry the tension ring from the gobo holder.
4) Remove the old gobo, insert the new gobo, and replace in the reverse steps of removal.
