Block CVR-100+ - Rear Panel

13
Chapter 3 The device

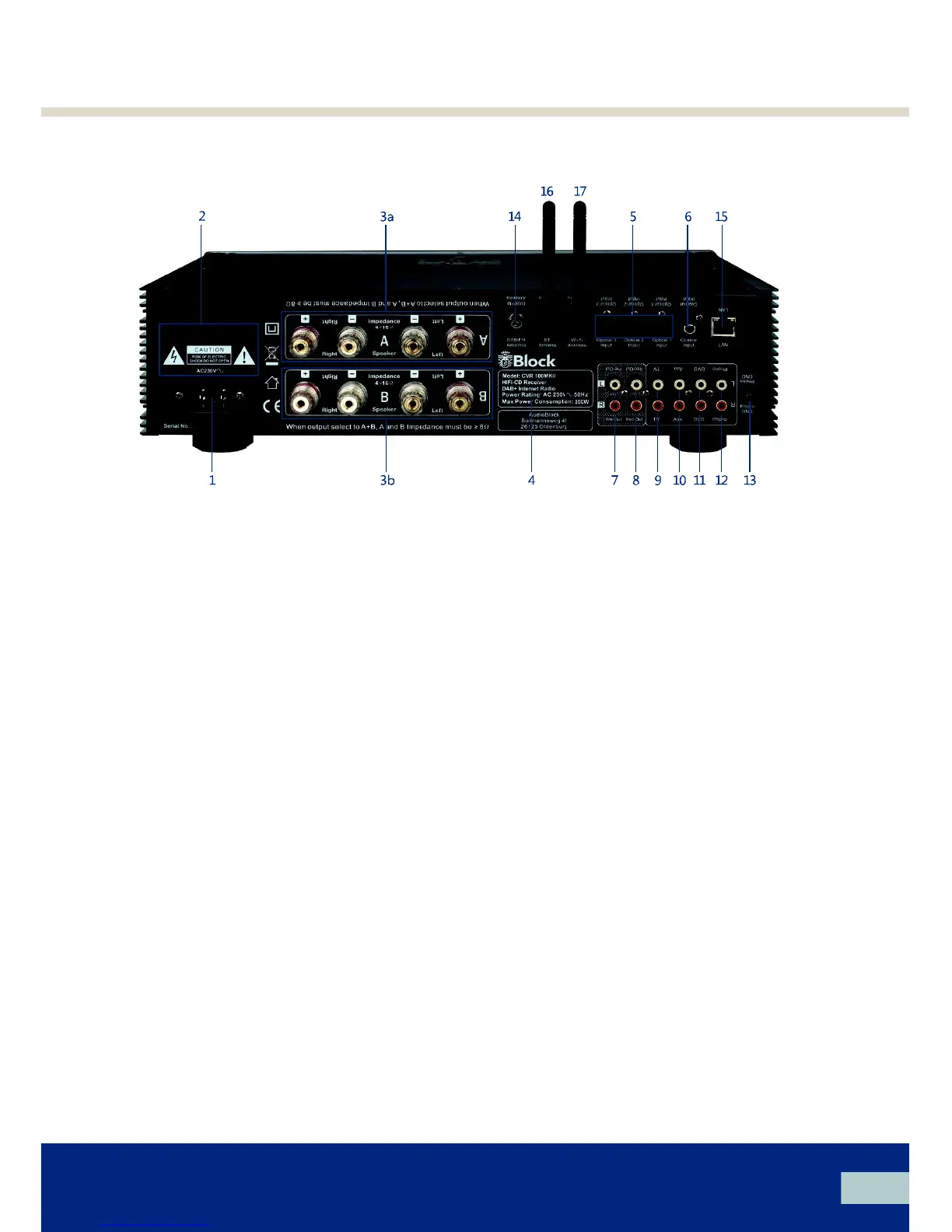

Rear panel
1. Power input jack.
2.
Speaker output for A.
3b. Speaker output for B.
Rating message.
input for optical 1, optical 2, optical 3.
Pre-AMP audio signal output jack.
Record audio signal output jack.
Audio signal input jack for TV.
Audio signal input jack for AUX.
Audio signal input jack for DVD.
Audio signal input jack for PHONO.
Lan wire input jack.
16. Bluetooth antenna.
17. WIFI antenna.
Warning icons: please be aware that this unit contains high voltages,
And should not be opened, please refer to page 2 of this manual.
11.
12.
13. Phono ground connection screw.
14. DAB/FM antenna jack.
15.
3a.
4.
5. Digital source
6. Digital source input for coaxial.
7.
8.
9.
10.
