Installation
6
Oven Assembly

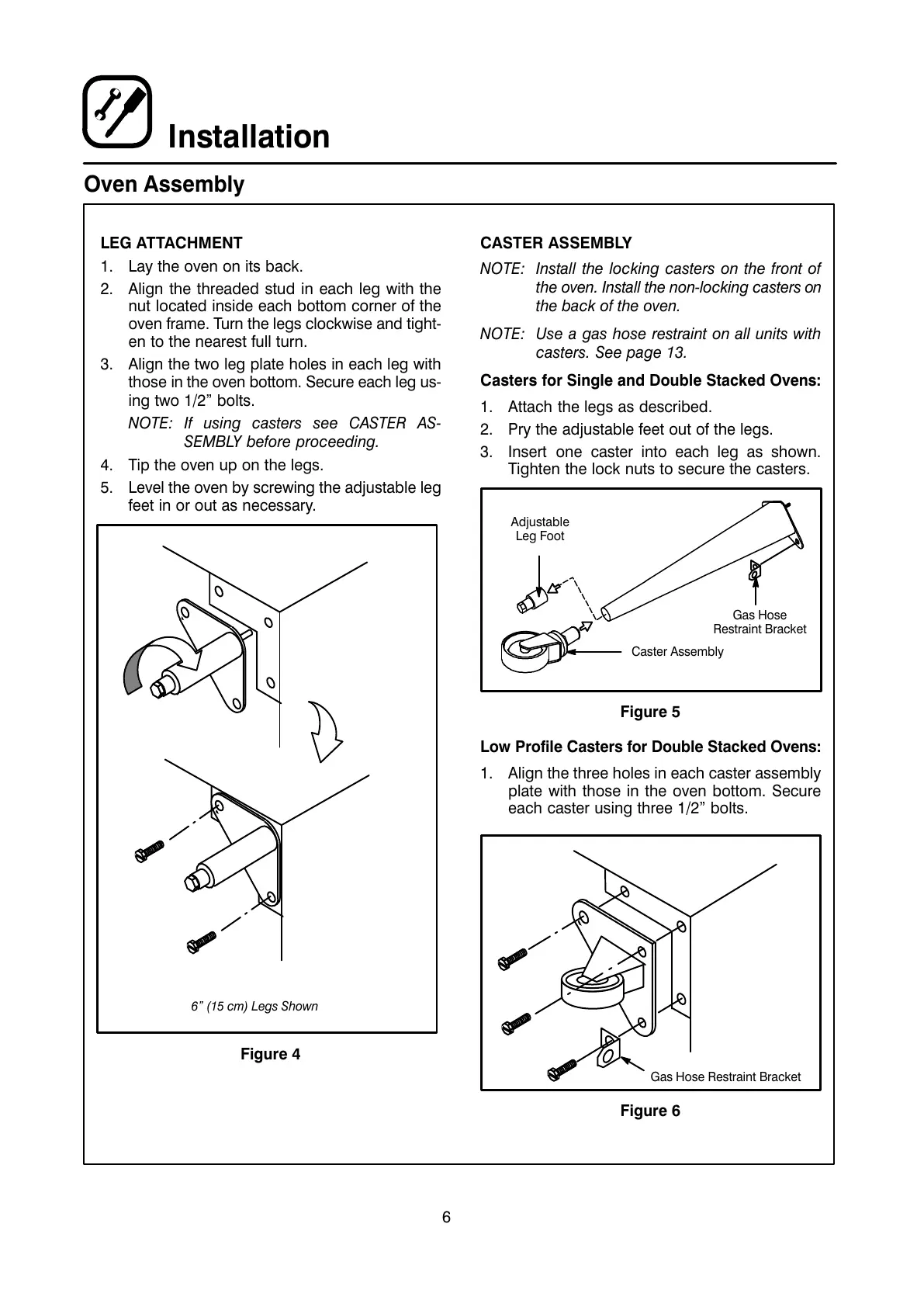

LEG ATTACHMENT
1. Lay the oven on its back.
2. Align the threaded stud in each leg with the
nut located inside each bottom corner of the
oven frame. Turn the legs clockwise and tightĆ
en to the nearest full turn.
3. Align the two leg plate holes in each leg with
those in the oven bottom. Secure each leg usĆ
ing two 1/2" bolts.
NOTE: If using casters see CASTER ASĆ
SEMBLY before proceeding.
4. Tip the oven up on the legs.
5. Level the oven by screwing the adjustable leg
feet in or out as necessary.
6" (15 cm) Legs Shown
Figure 4
CASTER ASSEMBLY
NOTE: Install the locking casters on the front of
the oven. Install the nonĆlocking casters on
the back of the oven.
NOTE: Use a gas hose restraint on all units with
casters. See page 13.
Casters for Single and Double Stacked Ovens:
1. Attach the legs as described.
2. Pry the adjustable feet out of the legs.
3. Insert one caster into each leg as shown.
Tighten the lock nuts to secure the casters.
Adjustable
Leg Foot
Caster Assembly
Gas Hose
Restraint Bracket
Figure 5
Low Profile Casters for Double Stacked Ovens:
1. Align the three holes in each caster assembly
plate with those in the oven bottom. Secure
each caster using three 1/2" bolts.
Gas Hose Restraint Bracket
Figure 6
