BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, VT 05401 Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
MODEL MARK V
SHORT FORM SPECIFICATIONS
Provide Blodgett full-size convection oven model MARK V, (single/double) compartment. Each compartment shall have (porcelainized/stainless) steel liner and shall accept five 18" x
26" standard full-size bake pans. Doors shall (be solid stainless steel/ have dual pane thermal glass windows) with single porcelain handle and simultaneous operation. Unit shall be
electrically heated with three tubular heaters. Air in baking chamber distributed by single inlet blower wheel powered by a two-speed, 1/3 HP motor with thermal overload protection.
Each chamber shall be fitted with four commercial lamps and five chrome-plated removable racks. Control panel shall be recessed with Cook/Cool Down mode selector, solid state
(manual/digital) thermostat (200 - 500° F), (93-260°C) and 60-minute timer. Provide options and accessories as indicated.

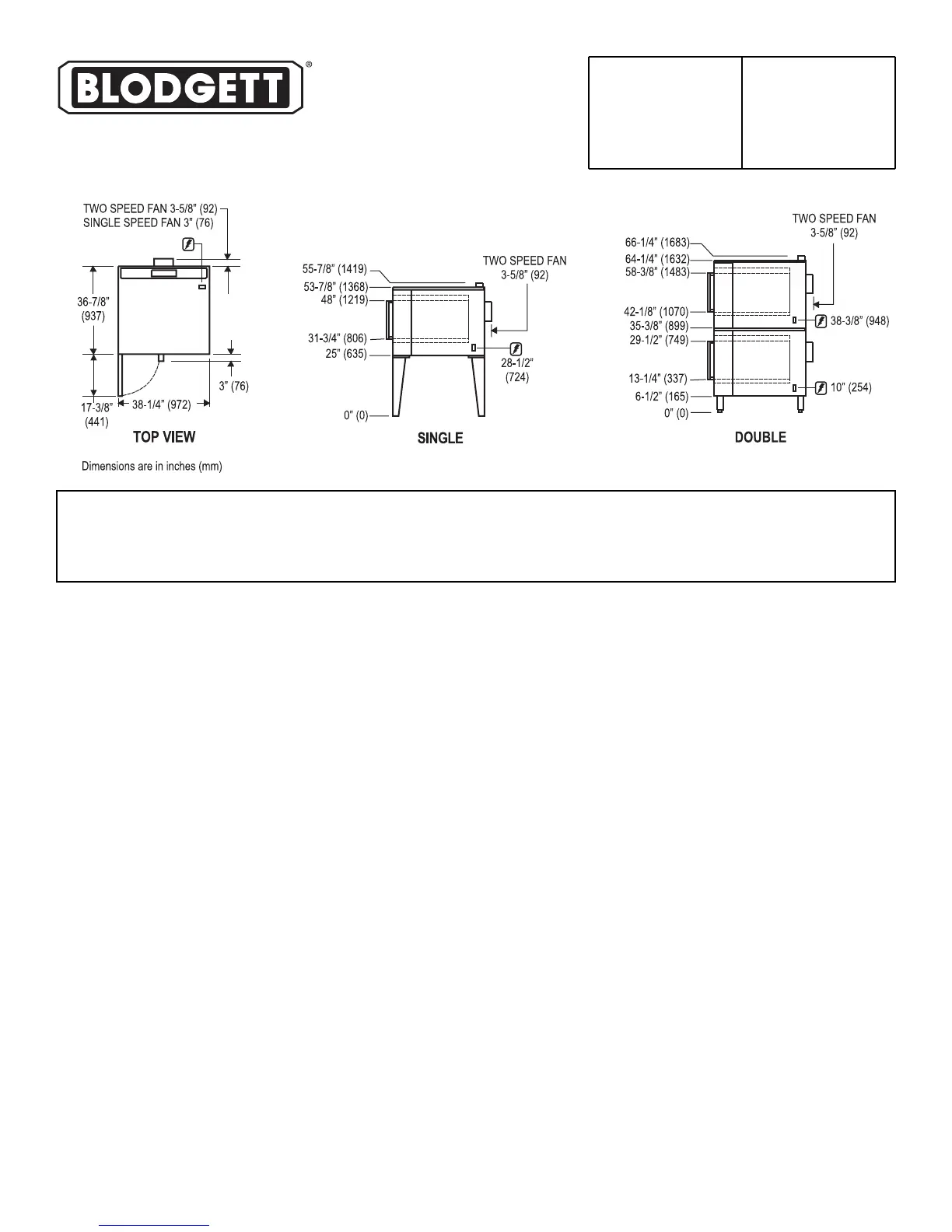

DIMENSIONS:
Floor space 38-1/4" (972mm) W x 36-7/8" (937mm) D
Product clearance 1/2" (12mm) from combustible and non-combustible construction
Interior 29" (737mm) W x 20" (508mm) H x 24-1/4" (616mm) D
If oven is on casters add to all height dimensions:
Single 4" (114mm)
Double 2" (57mm)
POWER SUPPLY:
V.A.C. Hz Phase K.W.H. Amperes (L1-L2-L3)
DOMESTIC
208 60 1 11 51/0/51
208 60 3 11 31/29/29
220/240 60 1 11 44/0/44
220/240 60 3 11 26/24/24
440 60 3 11 15/14/14
480 60 3 11 14/13/13
1/3 H.P., 2 speed motor, 1140 and 1725 RPM (60Hz.)
INTERNATIONAL
220/240 50 1 11 48/0/48
240/415 50 3 11 18/14/14
230/400 50 3 11 18/15/15
MAXIMUM INPUT:
Single 11KW
Double 22KW (11KW each section)
MINIMUM ENTRY CLEARANCE:
Uncrated 28-7/8" (733mm)
Crated 34-1/16" (876mm)
SHIPPING INFORMATION:
Approx. Weight:
Single 540 lbs. (245 kg)
Double 1020 lbs. (463 kg)
Crate sizes:
37-1/2" (952mm) x 43-1/2" (1105mm) x 51-3/4" (1315mm)
(2 crates required for double)
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
NOTE: The company reserves the right to make substitutions of components without prior notice.
P/N 35021 Rev M (6/07)
APPROVAL/STAMP
