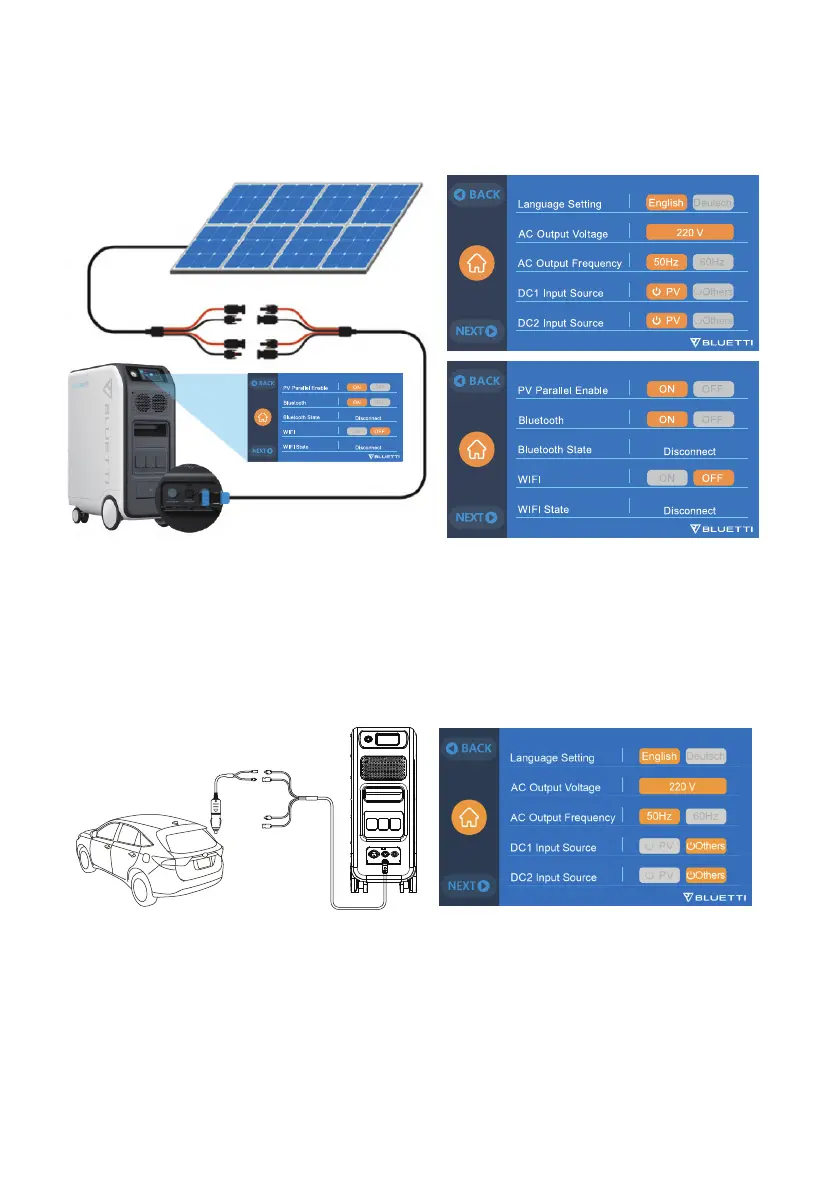

10.2.2 Charging Method 4: Car Charging
Connect the EP500Pro to the vehicle plug-in cigarette lighter port via the DC input
cable and car charging cable.
Note: Set "Others" as DC1/DC2 input source to enable car charging.
The Max. input current is 8.2A.
10.2.3 Charging Method 5: Charging via a 12V/24V Lead-acid battery
Connect the EP500Pro to the lead-acid battery via the DC input cable and lead-acid
battery charging cable. Clamp the positive connector(red) to the positive battery ter-
minal and negative(black) to the other.
Note: Set the "Others" as DC1/DC2 input source to enable lead-acid battery charging.
ii) Voc of PV<150V & solar system>1200W:
-
DC Input Source: PV
-
PV Parallel Enable: ON
35
