Maintenance
by Blum-Novotest 2012 31

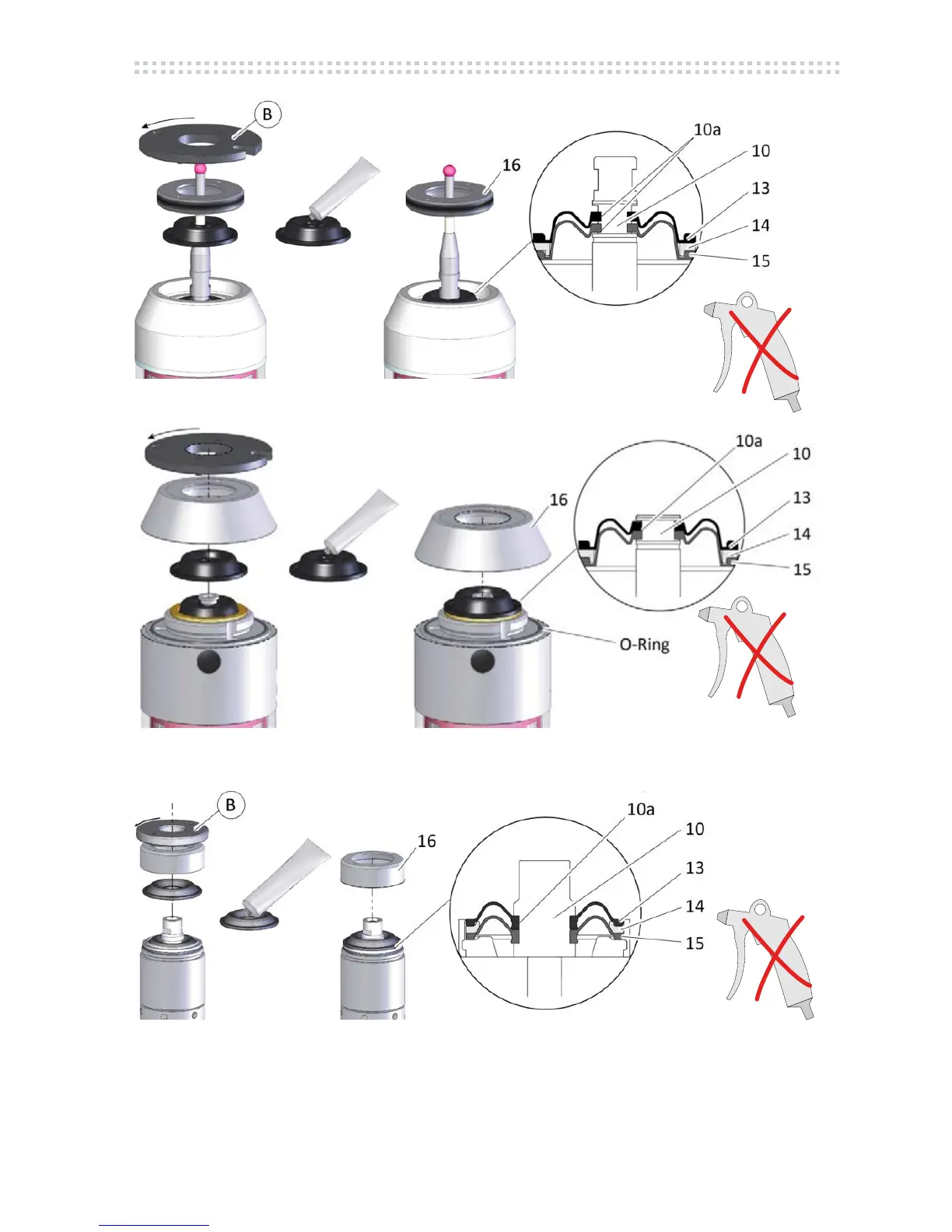

Fig. 5.1 TC60
Fig. 5.2 TC61
Fig. 5.3 TC63-30 / TC76
(10) Measuring mechanism (14) Centering ring
(10a) Groove (15) Internal bellows
(13) External bellows (16) Front ring
