04
www.blustream.com.au / www.blustream.co.uk
SW41AB-V2 USER MANUAL

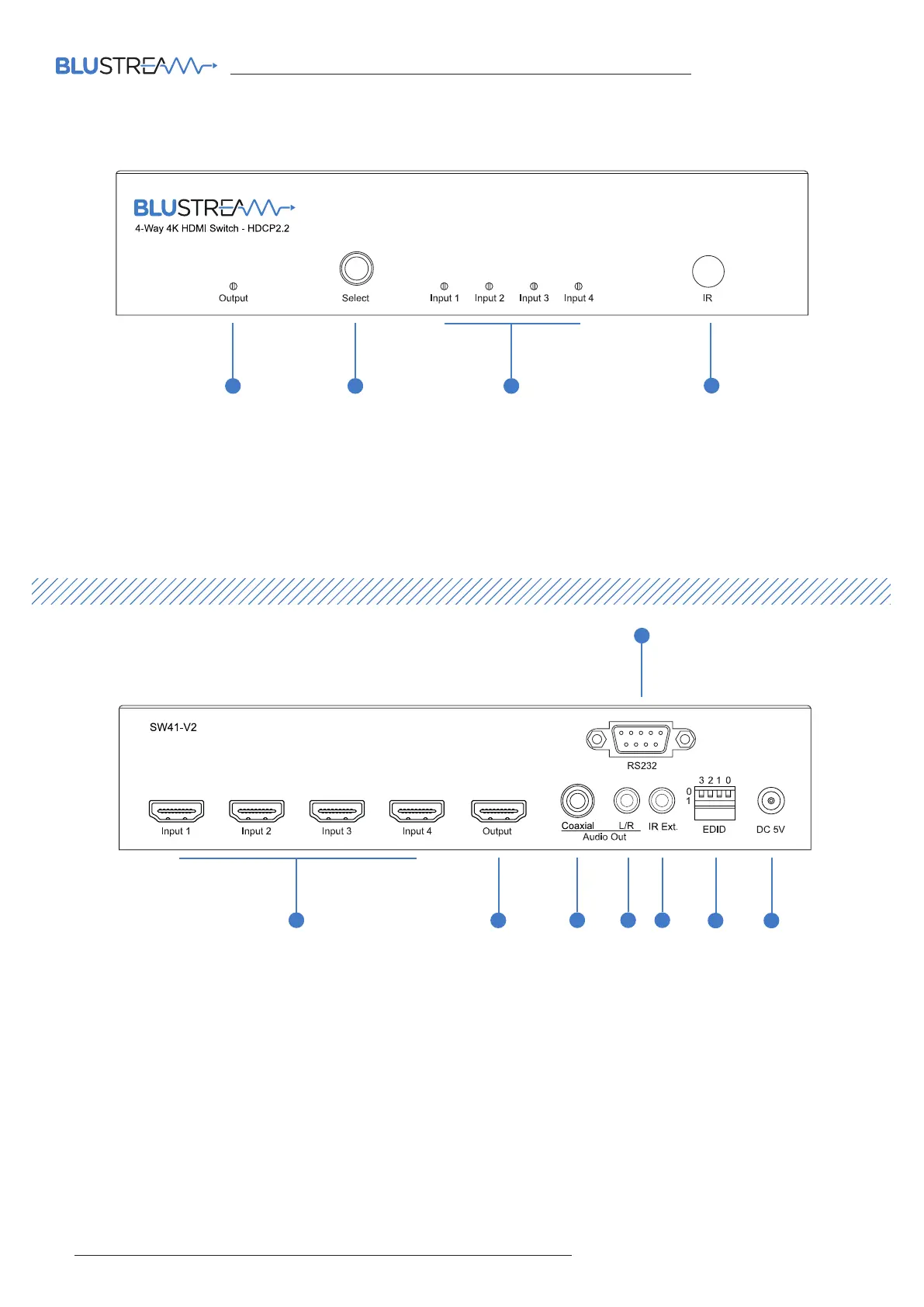

Front Panel
Rear Panel
1 2 3 4
1
2
1 Output LED indicator - indicates if a display device is connected to the switches HDMI output
2 Select button - press to toggle between HDMI inputs. Auto-switching function is enabled / disabled by pressing
and holding the Select button for 5 seconds. Output light will flash 3 times to confirm switching function enabled /
disabled
3 Input LED indicators - displays the HDMI input currently active
4 IR receiver window
3 4 5
6 7
1 HDMI inputs - connect to HDMI source devices
2 HDMI output - connect to a HDMI display device
3 Coaxial digital output (S/PDIF) - de-embedded from selected HDMI input
4 Analogue audio Le/Right output (3.5mm stereo jack) - de-embedded from the selected HDMI input. Source input
must be PCM 2 channel audio for the analogue output to work. The SW41AB-V2 does not down-mix multi-channel
audio signals
5 External IR port - connect supplied Blustream 5V IR receiver, or control processor to control the switcher
6 EDID DIP switches - see page 06
7 Power port - use supplied Blustream 5V/2A DC adaptor to power the switcher
8 RS-232 port - for control of the switcher from a PC or control processor
8
