BMGi TMT 800LS - Page 19

LONG RANGE 7CH RECEIVER
NC
COM
NO
12/24
GND

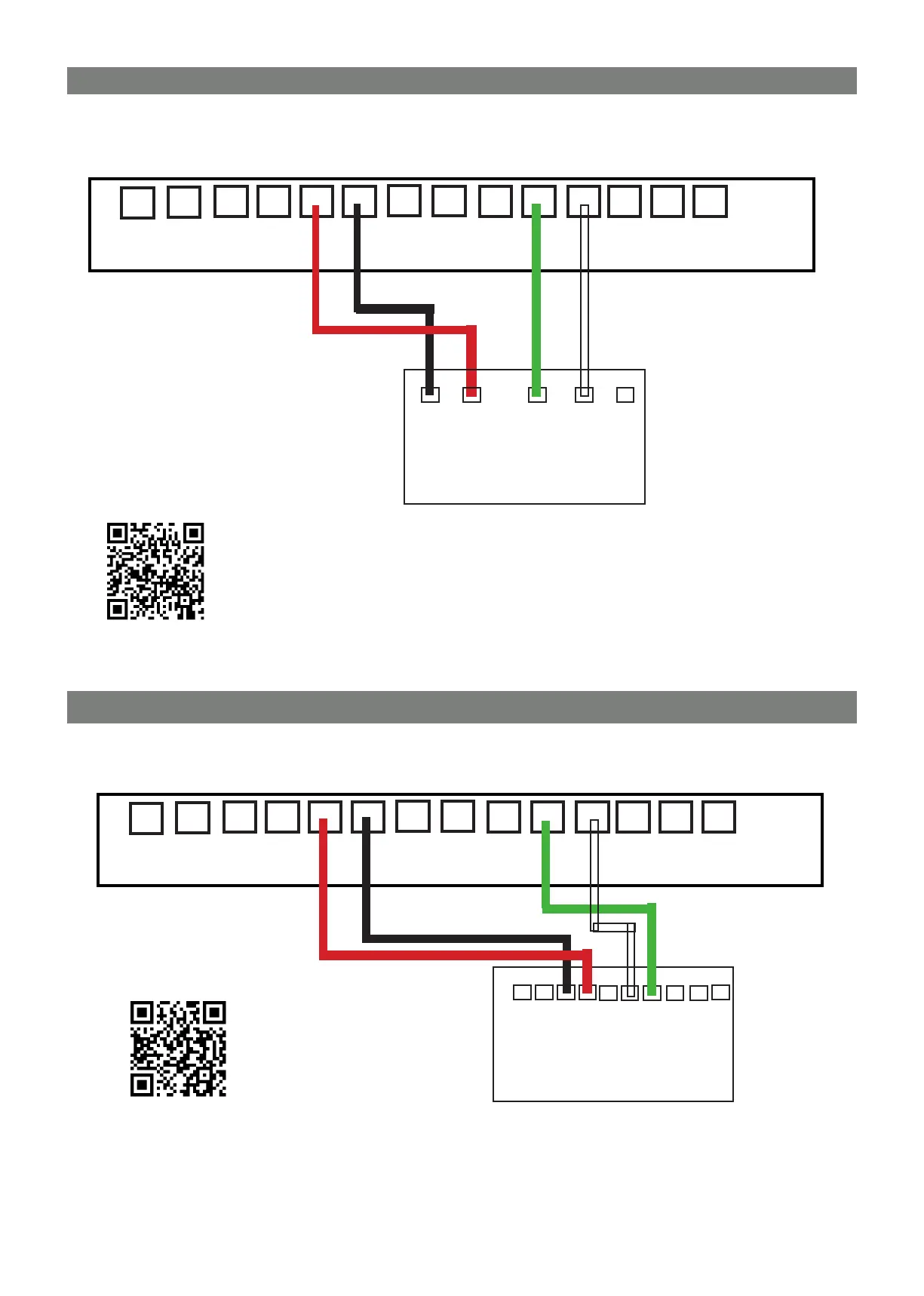

Wiring in your Long Range Receiver
Scan below
for more help on
wiring and tuning
EXT+
EXT-
GND
LIGHT
+13V
GND PH1
PH2
PH+
Pb
GND
STOP
OPEN
CLOSE
TMT motor control board
KP RECEIVER
NO
CM NC
NO
CM
NC
VDD GND GND
ANT
Wiring in your KP receiver
Scan below
for more help on
wiring and tuning
EXT+
EXT-
GND
LIGHT
+13V
GND PH1
PH2
PH+
Pb
GND
STOP
OPEN
CLOSE
TMT motor control board
