BMGi TMT 800LS - Page 20

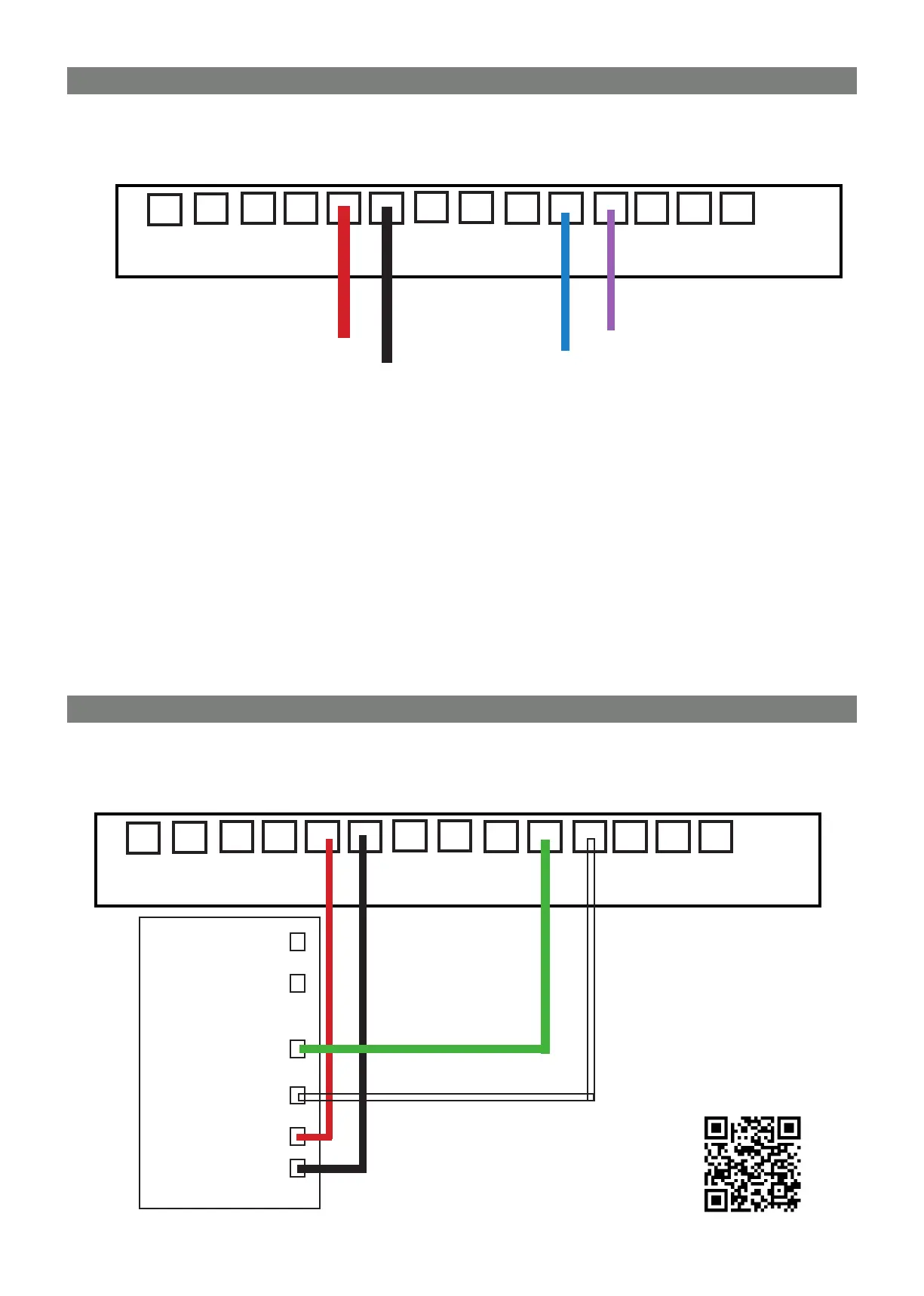

Wiring in your Keypad
Wiring in your GSM Gate Opener
COM
GND
NO
EXT+
EXT-
GND
LIGHT
+13V
GND PH1
PH2
PH+
Pb
GND
STOP
OPEN
CLOSE
TMT motor control board
+12V
EXT+
EXT-
GND
LIGHT
+13V
GND PH1
PH2
PH+
Pb
GND
STOP
OPEN
CLOSE
TMT motor control board
KEYPAD WIRING
+
COM
NO
Door Sensor
Relay Out put
-
Power
DC9-24V
GSM Gate Opener
Scan below
for more help on
wiring and instructions
