BMS HELI-CODER 4 - Connectors and Pinouts

Heli-Coder 4 Transmitter Operation Manual | Doc. No. 6051452100 Rev. C
Broadcast Microwave Services, Inc. 3
4 CONNECTORS AND PINOUTS

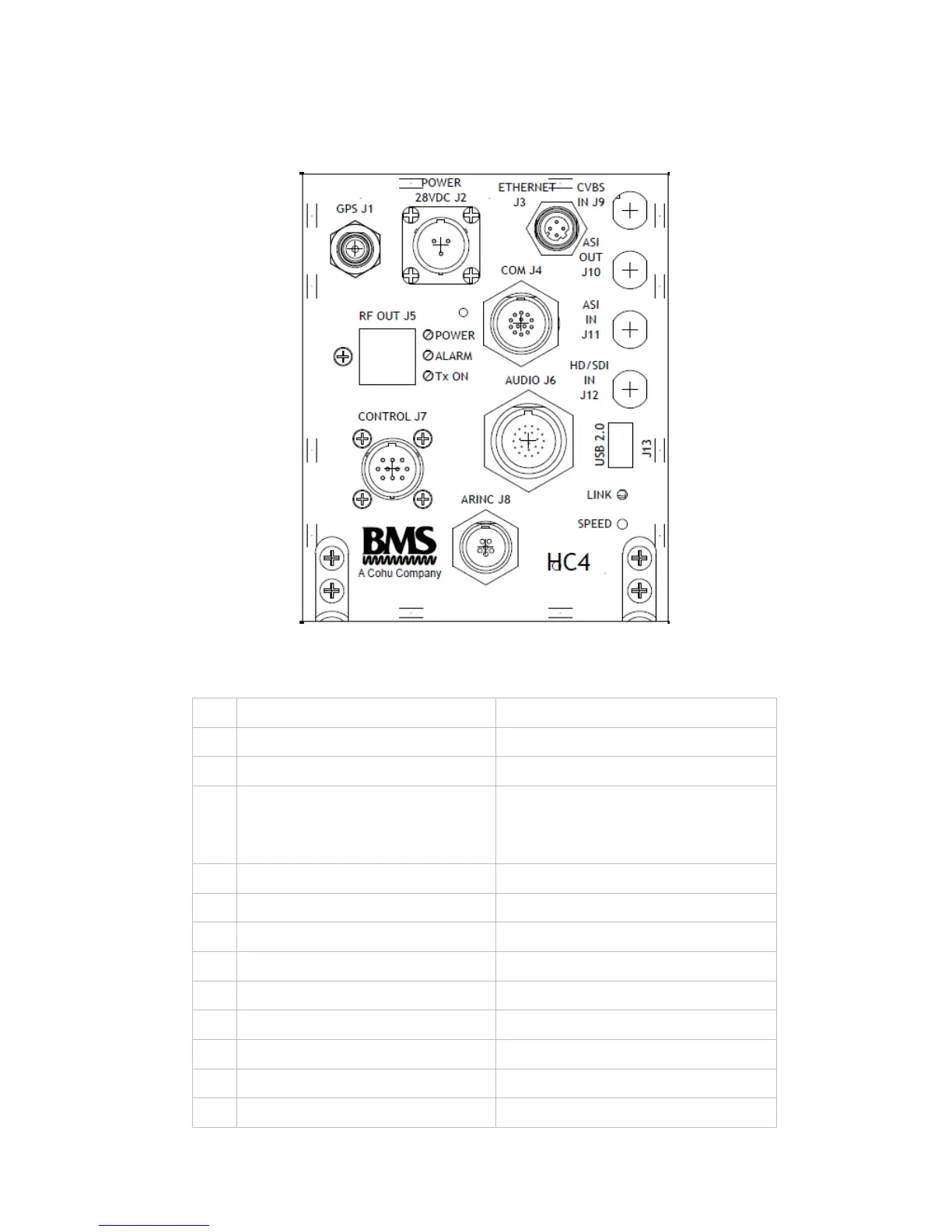

Figure 2 HC4 Front Panel Labels
Table 3. HC4 connectors
J1
GPS In (with optional DC Bias Out)
TNC(f), 50 ohm
J2
Power In
Souriau 3-pin male 851-02R12-3P50
J3
Ethernet
M12-4 Socket (early model used RJ45)
J4
COMM
RS232 External GPS
RS232 External AAAP
RS232 KLV or Camera Metadata
Tri-Start, Size 11, 13 Socket
J5
RF Out
N(f), 50 ohm
J6
Analog Audio In (2 channels)
D38999-26WC, 35 pin
J7
Control Panel
Souriau (male) 10-pin
J8
ARINC 429 (reserved for future use)
D38999-26 WA355N socket
J9
CVBS In (NTSC, PAL)
BNC(f), 75 ohm
J10
ASI Out
BNC(f), 75 ohm
J11
ASI In
BNC(f), 75 ohm
J12
SDI, HD-SDI In
BNC(f), 75 ohm
J13
USB 2.0
Type A (Host)
