BMS HELI-CODER 4 - Connection and Wiring Diagrams

Heli-Coder 4 Transmitter Operation Manual | Doc. No. 6051452100 Rev. C
Broadcast Microwave Services, Inc. 26

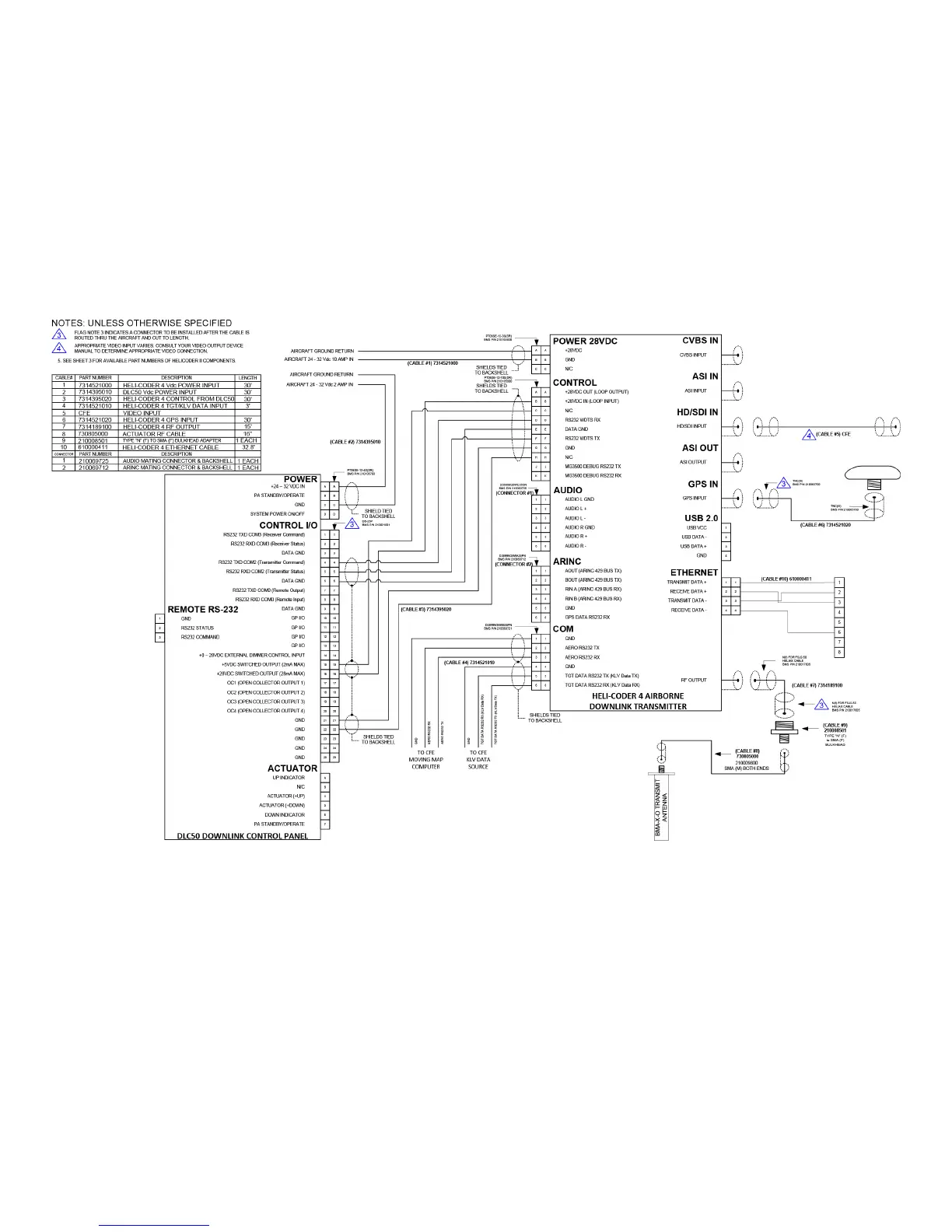

Figure 13 Wire Hook-Up Diagram for HC4 System (without TAA-101 Antenna Actuator)
