Maxi-Scooter is positioned ver-
tically.
The displays which may appear
in positions 1 and 2 mean the
following:
OIL OK: oil level correct.
OIL CHECK: check oil level
during next refueling stop.
OIL : no measurement
possible (above-mentioned con-
ditions not met).
If the oil level is too low,
the corresponding warning
symbol is displayed.

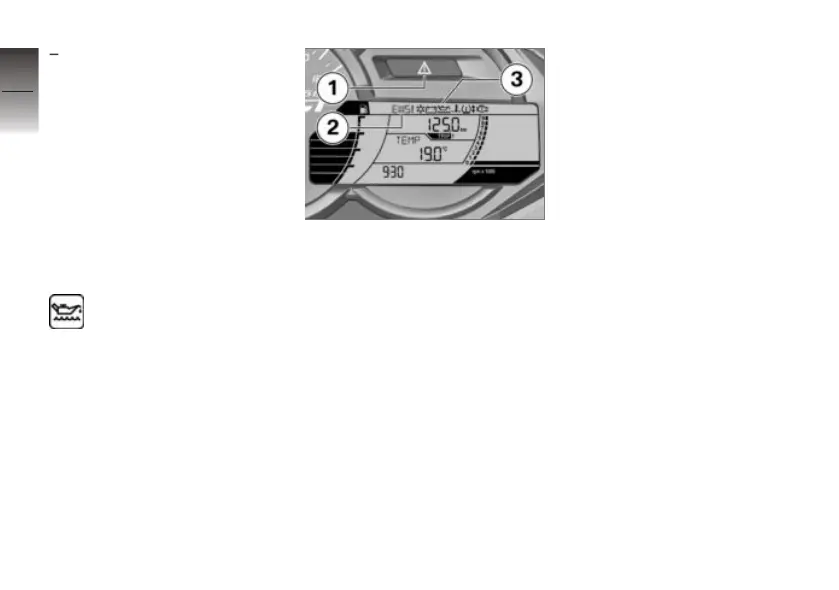

Warning lights
Display
Warnings are displayed with ap-
propriate warning lights.
Warnings for which no sepa-
rate warning light is provided are
signaled by the general warn-
ing light 1 which is accompa-
nied by a warning notice in posi-
tion 2 such as EWS! or a warn-
ing symbol 3 in the multifunction
display.
The universal warning light lights
up in either yellow or red de-
pending on the urgency of the
warning.
If several warnings are active, all
corresponding warning lights and
warning symbol are displayed;
warnings appear alternately.
You will find an overview of the
potential warnings on the follow-
ing pages.
3
24
z
Displays
