16
LUBRICATION SYSTEM
The BMW D7 is equiped with a simple and relaible splash lubrication system.

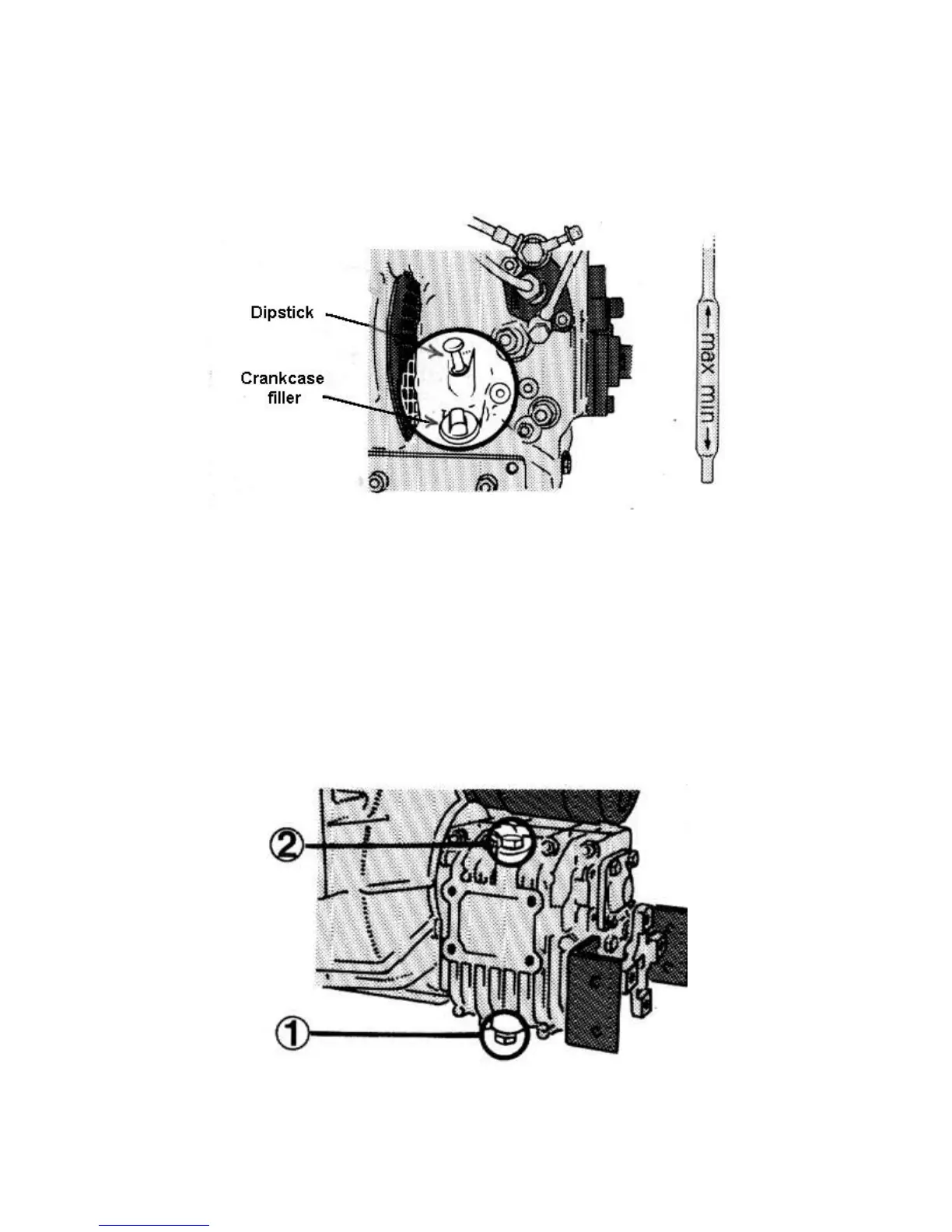

Oil level check – is done daily with aid of the dipstick
Engine oil change – normally every 50 hours. A brand new engine, however, will require
it’s first oil change after ten or fifteen hours running. Pump out the oil oil via the dipstick
opening while the engine is warm. Refill via the crankcase filler plug.
Gearbox oil change – is carried out at 150 hour intervals and when the gearbox is still
warm. Remove the drain plug – 1 – and the filling opening plug – 2 -. Allow the oil
enough time to drain completely. Check that the drain plug seal is undamaged prior to
re-installation. Top up the gearbox slowly with 0.4 litres (0.1 US gal) ATF Dexron oil.
Leave the filling opening open for some minutes until any possible air locks have
escaped. Check the plug seal and install the plug.
