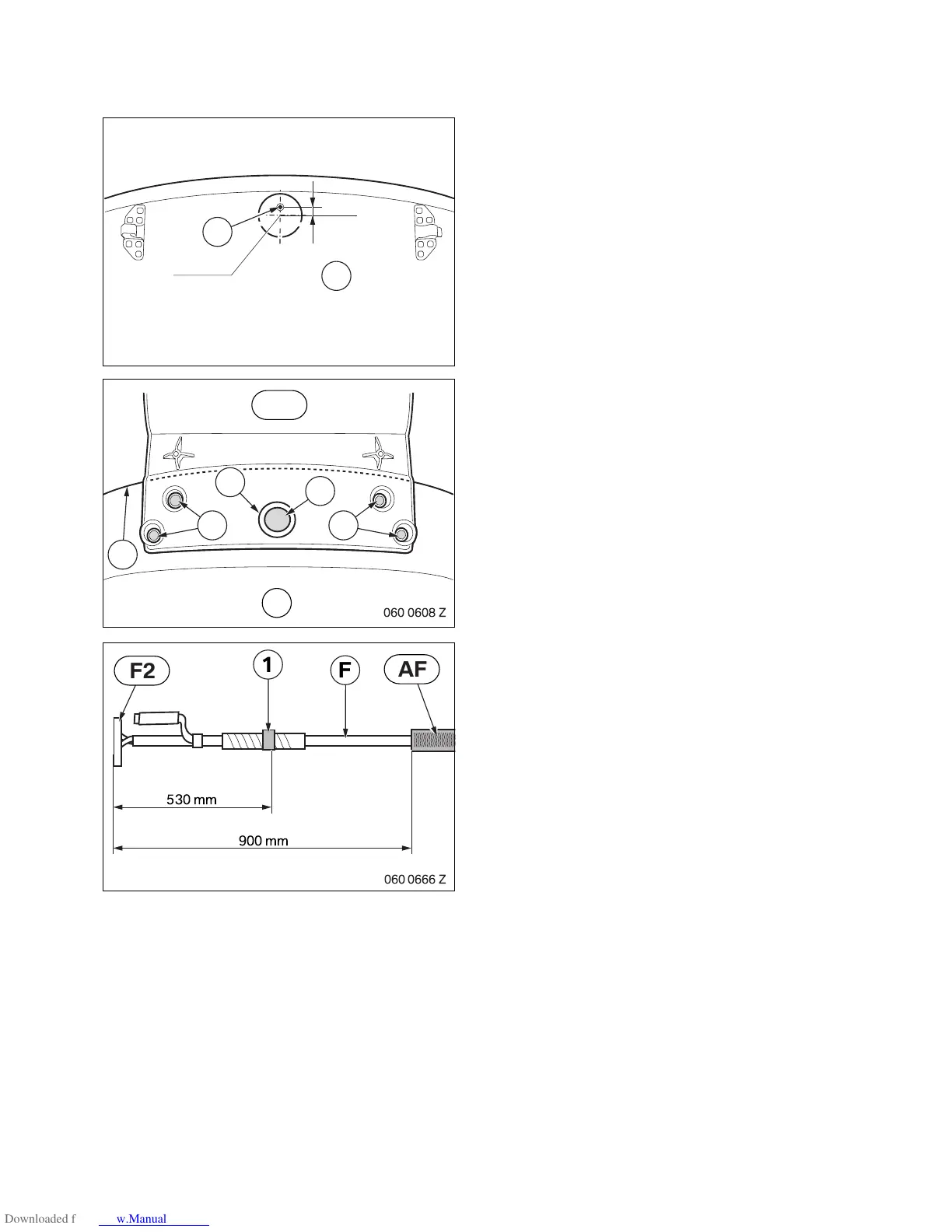

8. To install the monitor
Cars with SA 456 only
Mark the hole at marking (1) on the inside of the
front seat rear panel (2) using the dimensions
shown.
Drill the hole using a 30 mm step drill.
All cars
Place the rear monitor trim AC on the top edge
(1) of the outside of the front seat rear panel (2).
The hole (3) in the rear of the monitor trim AC
must line up with the hole (4) in the front seat rear
panel.
Mark the holes (5) and drill them using as 15 mm
step drill.
Measure the dimensions of branch F2.
Push fabric hose AF over seat wiring harness F
and secure it with adhesive tape using the
dimensions shown.
Affix the marking (1) with adhesive tape using the
dimensions.
2 mm
 30 mm
2
1
060 0770 Z
2
55
4
3
1
AC
060 0608 Z
530 mm
900 mm
1
F
AF
F2
060 0666 Z
