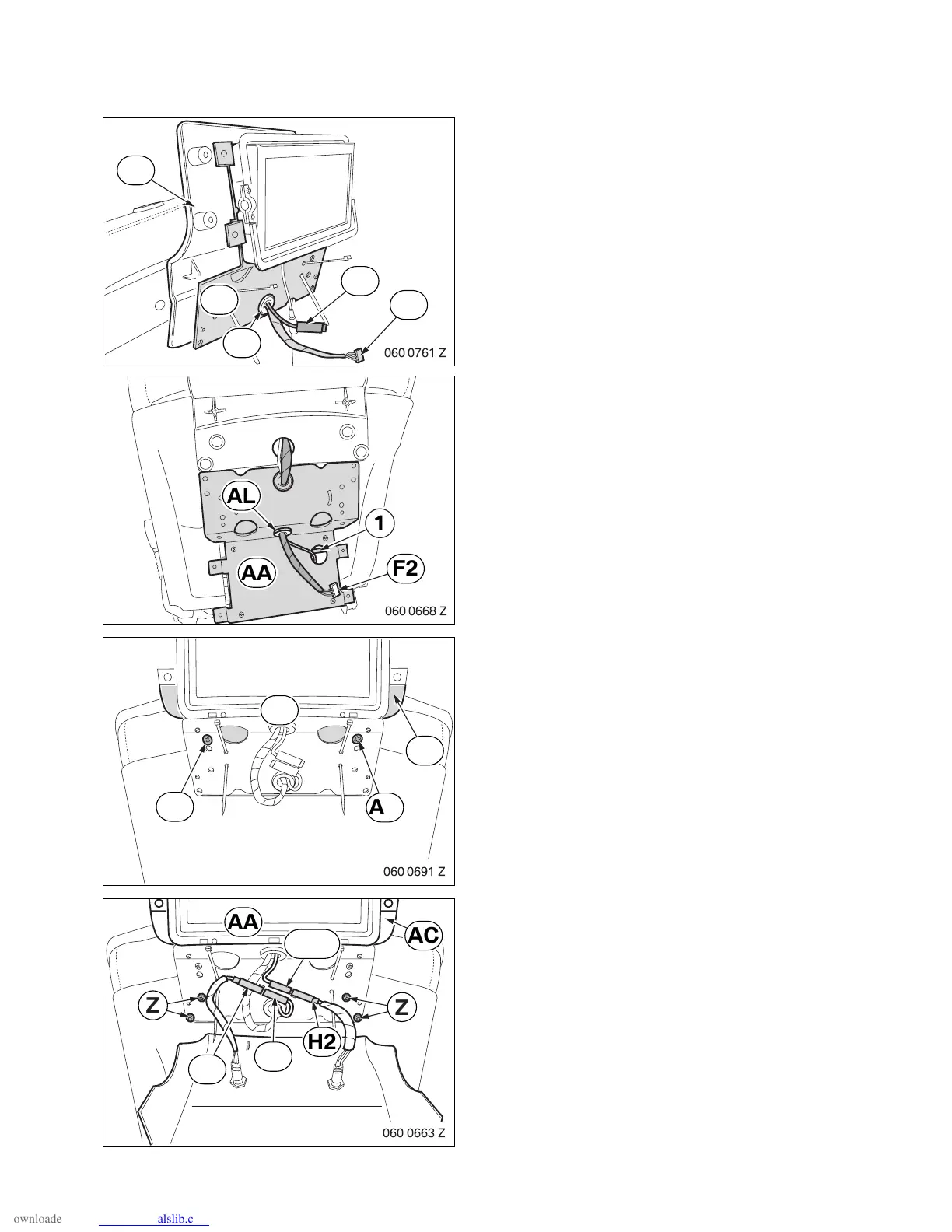

8. To install the monitor
Route branches F1 and F2 through the rear
monitor trim AC and the bottom grommet AL in
the monitor AA.
Route branch F2 through the top grommet AL.
Connect branch F2 to the connection plug (1) of
the monitor AA.
Secure the monitor AA to the rear monitor
trim AC using self-tapping screws AH.
Secure the monitor AA and rear monitor trim AC
to the seat using Torx screws Z.
Connect branch G2 to branch F1.
Connect branch H2 to headphone
connector AA1 on the monitor AA.
