BMW k1200lt - Electrical System Components

52
Maintenance and care
2
Fuses
Equipment connected to
fuses

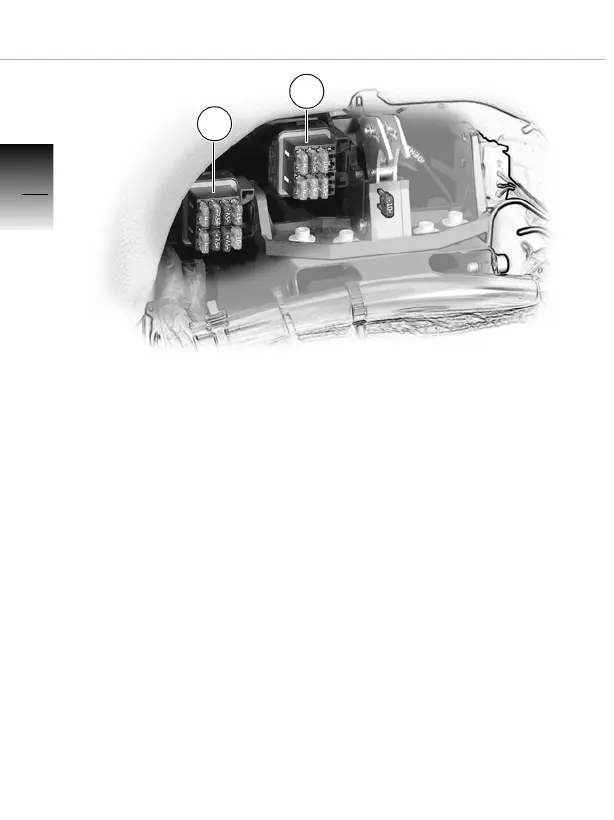

Fuse box 1
1 Relay for windshield
adjustment, power
sockets 1 and 2 ............ 15 A
2 Engine electronics........ 10 A
3 Fan............................... 7.5 A
4 Map-reading light, radio,
interior light and socket
in topcase .................... 7.5 A
5 Low-beam headlight,
tail light......................... 7.5 A
6 High-beam headlight,
multifunction switch left .. 7.5 A
7 Parking light, tail light
with ABS ......................... 4 A
8 Heated handlebar grips ... 4 A
Fuse box 2
1 Cruise control
system
OE
........................10 A
2 Not used
3 Diagnosis plug, injection
valves, fuel pump,
oxygen sensor................10 A
4 Horn, brake light, anti-
theft alarm system
OE
with central locking
OE
.....15 A
5 Seat heating..................7.5 A
6 Terminal 15, instrument
panel, control unit for
EHCS ...............................4 A
7 Terminal 30, instrument
panel, control unit for
EHCS ...............................4 A
8 Plug for optional-
accessory navigation........4 A
OE
Optional equipment
2
1
