Page
43

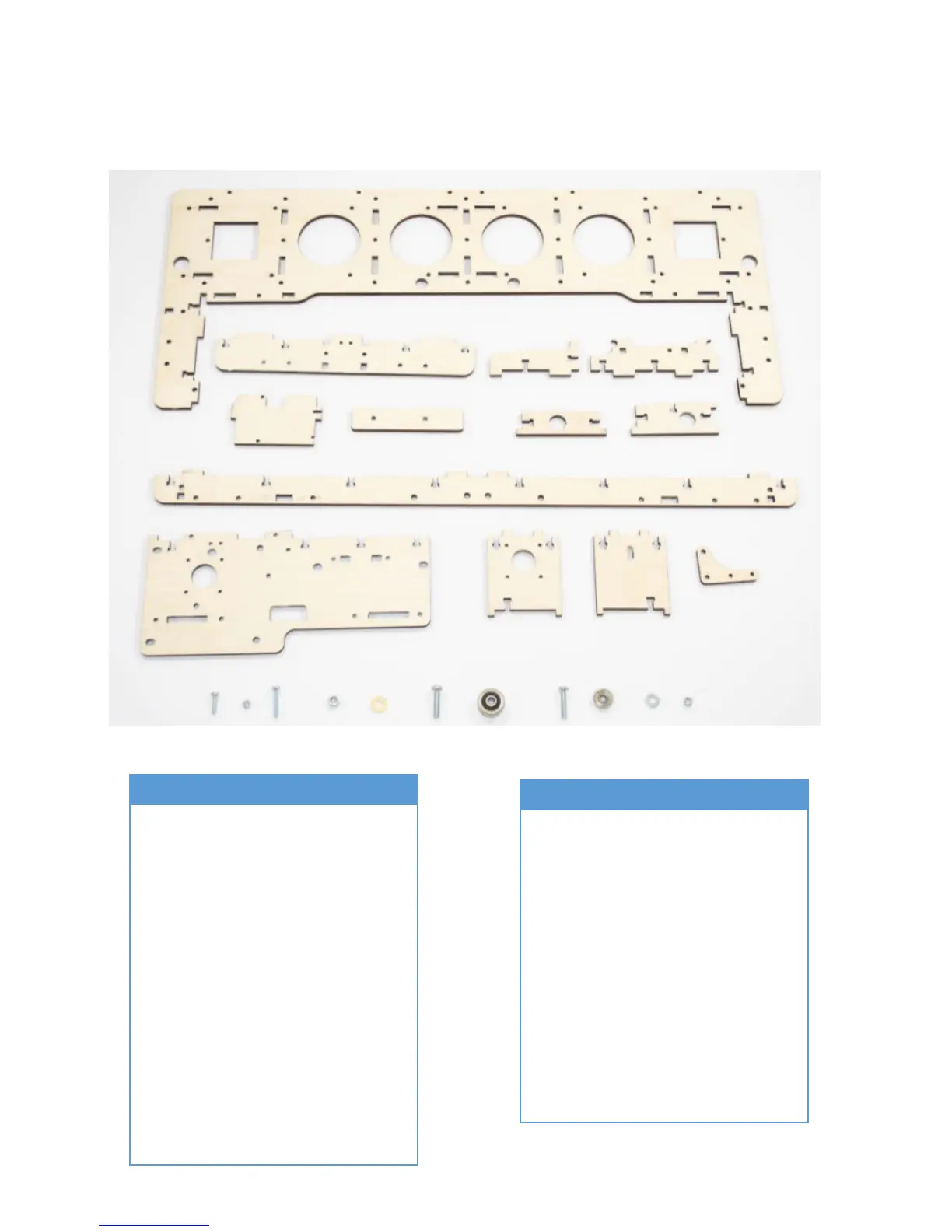

G1
1
Gantry Frame
G2
2
Gantry Side Suppo
rt
G3
2
Gantry Corner Brace
G4
5
Y Rail Supports
G5
1
Controller Mount
G6
2
Y Rail Stop
G7
2
Gantry Back Brace
G8
2
Gantry Side Brace
G9
2
Gantry Back Supp
ort
G10
2
Gantry Side Fram
e
G11
1
Y Stepper Motor Moun
t
G12
1
Y Belt Idler Moun
t
G13
2
Cable Mount
A
67
M4 x 16 Screws
B
71
M4 N
ut
C
4
M4 x 25 Screws
D
8
M6 Nuts
E
16
M6 Hardened W
ashers
F
8
M6 x 25 Scr
ews
G
8
SG20U Bearings
H
3
M5 x 25 Screws
I
6
F625 Idler Bearings
J
6
M5 Washer
K
6
M5 Nut
42
44
Table of Contents
Default Chapter
2
Table of Contents
2
Specifications
4
Safety First
4
Getting Started
5
Required Tools
5
For more Information
5
E3 Parts Identification
6
E3 Hardware Parts Guide
6
Z-Spindle Mount Assembly Instructions
7
Z-Spindle Mount Wood Components
7
Step by Step Instruction for Preparing the Dewalt 660
13
Y Carriage Mount Assembly Instructions
18
Y Carriage Wood Components
18
Frame Assembly Instructions
38
X Frame Assembly and Hardware
38
Gantry Assembly Instructions
43
Gantry Wood Components and Hardware
43
Gantry Assembly and GT2 Pulley Instructions
56
Left Inside View
58
Left Outside View
58
Gantry Installation Instructions
61
Y Carriage Installation Instructions
65
Installing the Belts
70
Installing the Spoilboard
75
Initial Setup
76
Tips to Keep Your Controller from Being Damaged
80
GRBL and Universal G Code Sender Software
82
Quick Start Guide
82
Quick Start Guide
83
Axis Definitions and Home Location
83
Mounting the Work
84
Tips for Cutting with the E3
84
Appendix
85
Warranty and Return Policy
85
Miscellaneous Parts List
86
Diagrams for Plywood Components
87
Frame Parts Diagram
87
Gantry Parts Diagram
88
Y Carriage Parts Diagram
89
Z Parts Diagram
90
