Quick Start Guide
Quick start and troubleshoong guides are available and can help you get up and running. Please
check BobsCNC.com for the latest copy.

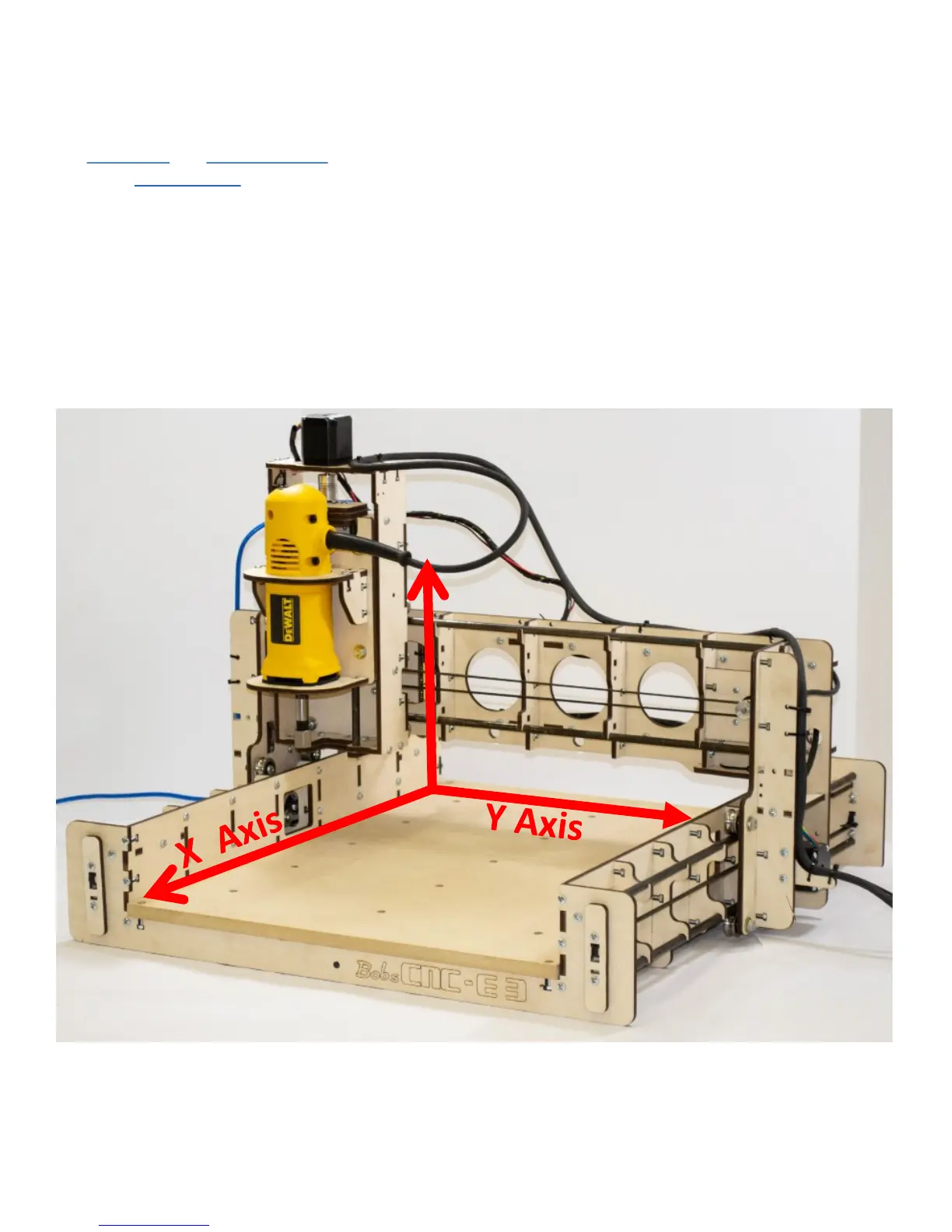

The engraver is setup using the right-hand coordinate system. The arrows in the diagram below displays the posive
direcon for both the X and the Y axis. The posive Z axis is up. Once connected the rst operaon should be to home
the engraver. The home posion will move the engraver to the X0 Y0 locaon with Z is in maximum distance away from
the work.
