Page
47

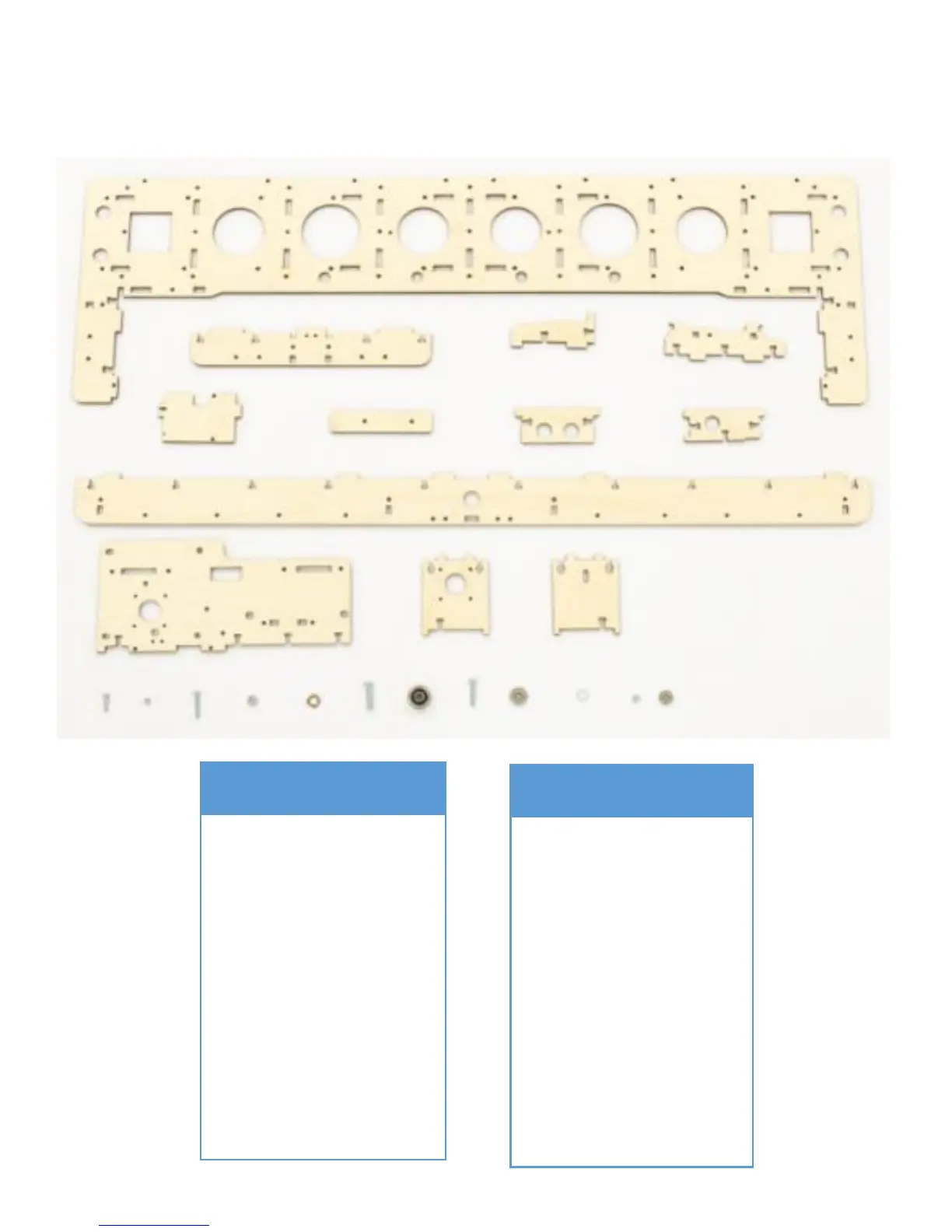

G1
1
Gantry Fra
me
G2
2
Gantry Sid
e Supports
G3
2
Gantry Corn
er Braces
G4
7
Y Rail Suppo
rts
G5
1
Controller Moun
t
G6
2
Y Rail Stops
G7
4
Gantry Ba
ck Braces
G8
2
Gantry Sid
e Braces
G9
2
Gantry Ba
ck Supports
G10
2
Gantry Sid
e Frames
G11
1
Y Stepper Motor Mou
nt
G12
1
Y Belt Idler Mou
nt
A
67
M4 x 16 Screws
B
71
M4 Nuts
C
4
M4 x 25 Screws
D
8
M6 Nuts
E
16
M6 Hardened Washers
F
8
M6 x 25 Scr
ews
G
8
SG20U Bearings
H
3
M5 x 25 Screws
I
6
F625 Idler Bearing
s
J
6
M5 Washer
s
K
6
M5 Nuts
L
3
GT2 Pulleys
46
48
Table of Contents
Table of Contents
2
Specifications
4
Safety First
4
Required Tools
5
Getting Started
5
For more Information
5
Parts Identification
6
E4 Hardware Parts Guide
6
Spindle Mount Wood Components
7
Z Spindle Mount Assembly Instructions
7
Step by Step Instruction for Preparing the Dewalt 660
13
Carriage Mount Assembly Instructions
18
The Finished Installation of the Bearings
26
Checking Z Thread Rod Alignment
31
Attach 5/16 Nuts and Bearing on Threaded Z Rod
31
Frame Assembly Instructions
39
Gantry Assembly Instructions
47
Gantry Assembly and GT2 Pulley Instructions
59
Gantry Installation Instructions
64
Y Carriage Installation Instructions
68
Installing the Belts
73
How the Belt Wraps Around the GT2 Pulley and Idler
74
Electronics Installation Instructions
78
Tips to Keep Your Controller from Being Damaged
85
Installing the Spoilboard
87
Clamping System
92
GRBL and Universal G Code Sender Software
93
Axes Definition and Home Locations
94
Defining the Axes
94
Tips for Getting Started
95
Tips for Cutting with the E4
95
Appendix
96
Warranty and Return Policy
96
Miscellaneous Parts List
97
Diagrams for Plywood Components
98
Diagram for Plywood Components
102
