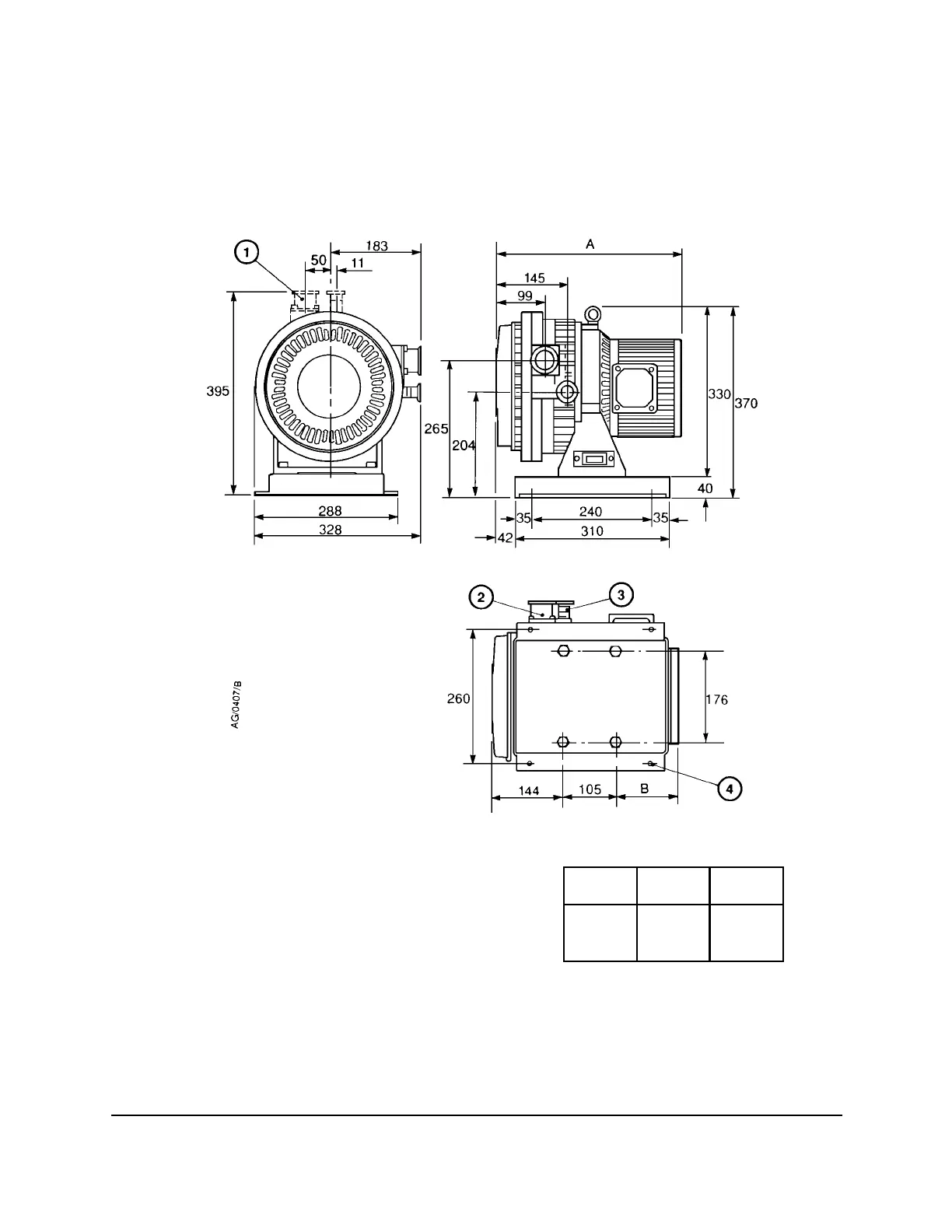

Figure 4 - ESDP30 pump dimensions (mm): 3-phase pump shown
1. Alternative inlet and outlet positions
2. Inlet
3. Outlet
4. Mounting-holes for M8 bolts (4 off)
Pump A B
1-phase
3-phase
443
372
194
123
ESDP12 and ESDP30 Scroll Pumps 7
