The adi.flex 220 is ready for operation
Before you begin with the assembly, all packaging residues (incl. the cable ties) must be
completely removed.

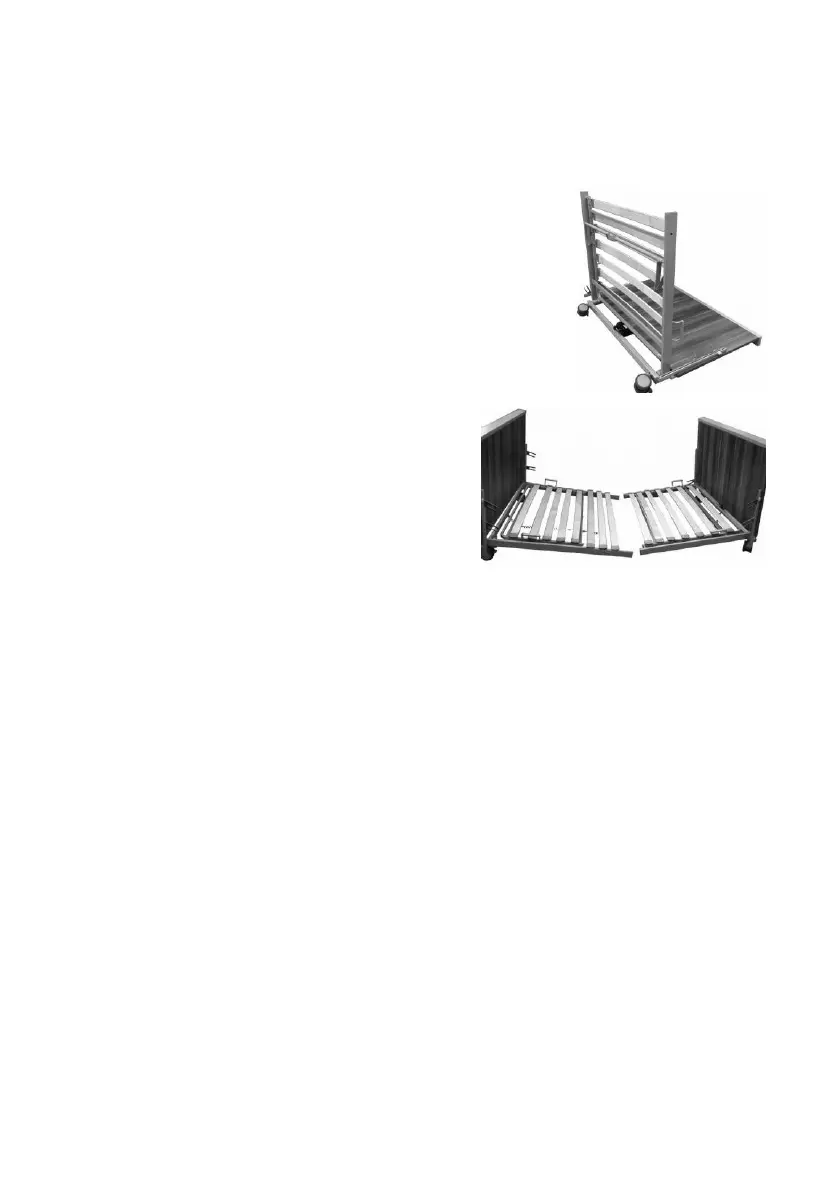

1. Remove the two screws of the lying surface attachment as
well as the 4 screws of the manual controls with which the parts
are attached to the transport system.
2. Now remove the lying surface motor and the two lying sur-
face elements. Place the two manual controls on the floor at a
distance of the length of the lying surface. Screw the two lying
surface elements together with the manual controls.
3. Set up the two elements and slide the lying sur-
face parts approx. 5cm into each other.
4. To install the side rails, hang the wooden side guards into the pre-assembled metal
guides and arrange them. Then push the lying surface elements together completely and
screw them together. Then attach the lying surface motor according to the symbols and
connect the individual drives.
5. The next steps correspond to points 7 and 8 of the domiflex model series.
The adi.flex 220 is now ready for operation.
