STEP
7.1
41

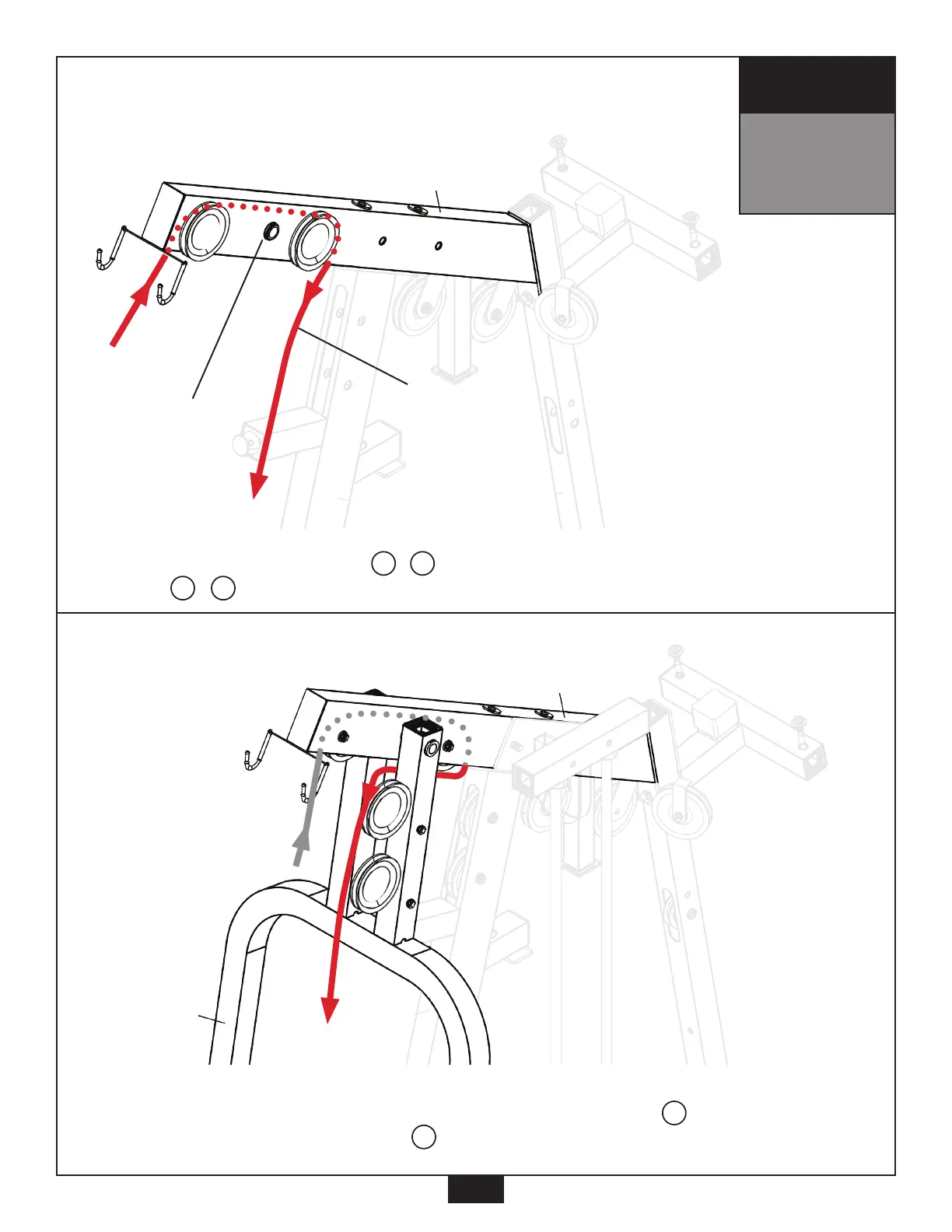

Start at the front of the gym. Insert Metal Ball End of the Lat Pulldown Cable d23 into 2” x 4” Top Frame
G, through the frame above both pulleys & . Be sure that the Lat Pulldown Cable D23 rides on top of
these pulleys & , and pull entire length of Cable D23 all the way through.
Route the Lat Pulldown Cable d23 into Seated Press Arms P over the top Pulley . Pull entire length of Lat
Pulldown Cable d23 through in front of Pulley .
3
5
22
33
55
11
G
2” x 4” Top Frame
G
2” x 4” Top Frame
2
2
1
1
P
Seated Press
Arms
Ensure that cable
travels over this
pivot shaft
NOTE:
Remove nger tightened pulleys as needed. Do Not wrench tighten until the
cables are installed.
d23
Lat Pulldown
Cable
NOTE:
You can remove and reinstall
pulleys as needed.
To Next Page
