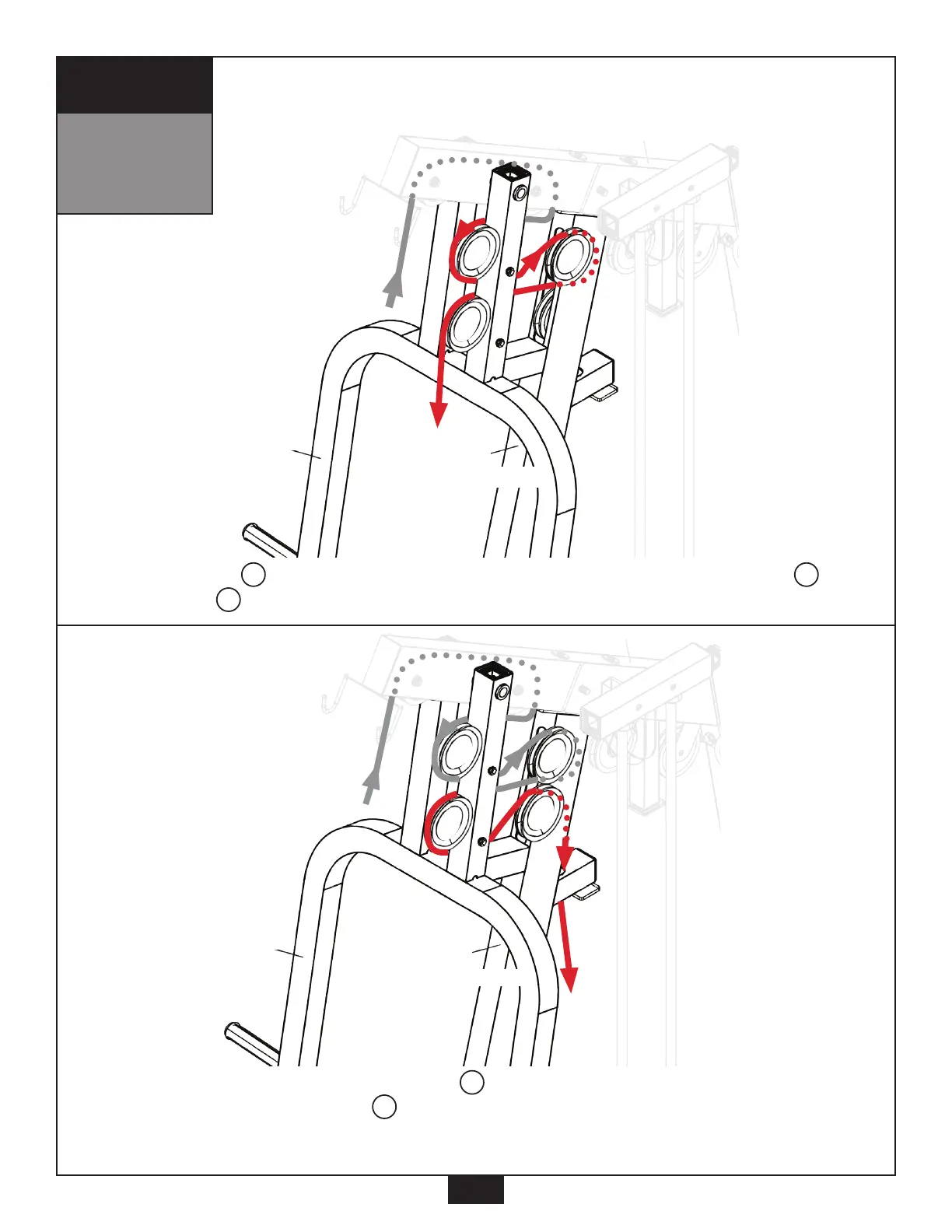

Remove the top pulley in Seated Press Frame D and route Cable d23 around the top of pulley .
Reinstall top Pulley into Seated Press Frame D with the cable routed completely around it.
4
4
4
33
44
55
66
Route the Lat Pulldown Cable d23 around the Pulley in Seated Press Arms P. Route Cable d23 through
2” x 4” Upright D above the lower Pulley and down and out of 2” x 4” Upright D. Route the Lat Pulldown
Cable d23 through the opening in the small arm attached to 2” x 4” Upright D. Pull entire length of the Lat
Pulldown Cable d23 through.
5
6
P
Seated Press Arms
P
Seated Press Arms
D
2” x 4” Upright
D
2” x 4” Upright
NOTE:
Remove nger tightened pulleys as needed. Do Not wrench tighten until the
cables are installed.
To Next Page
